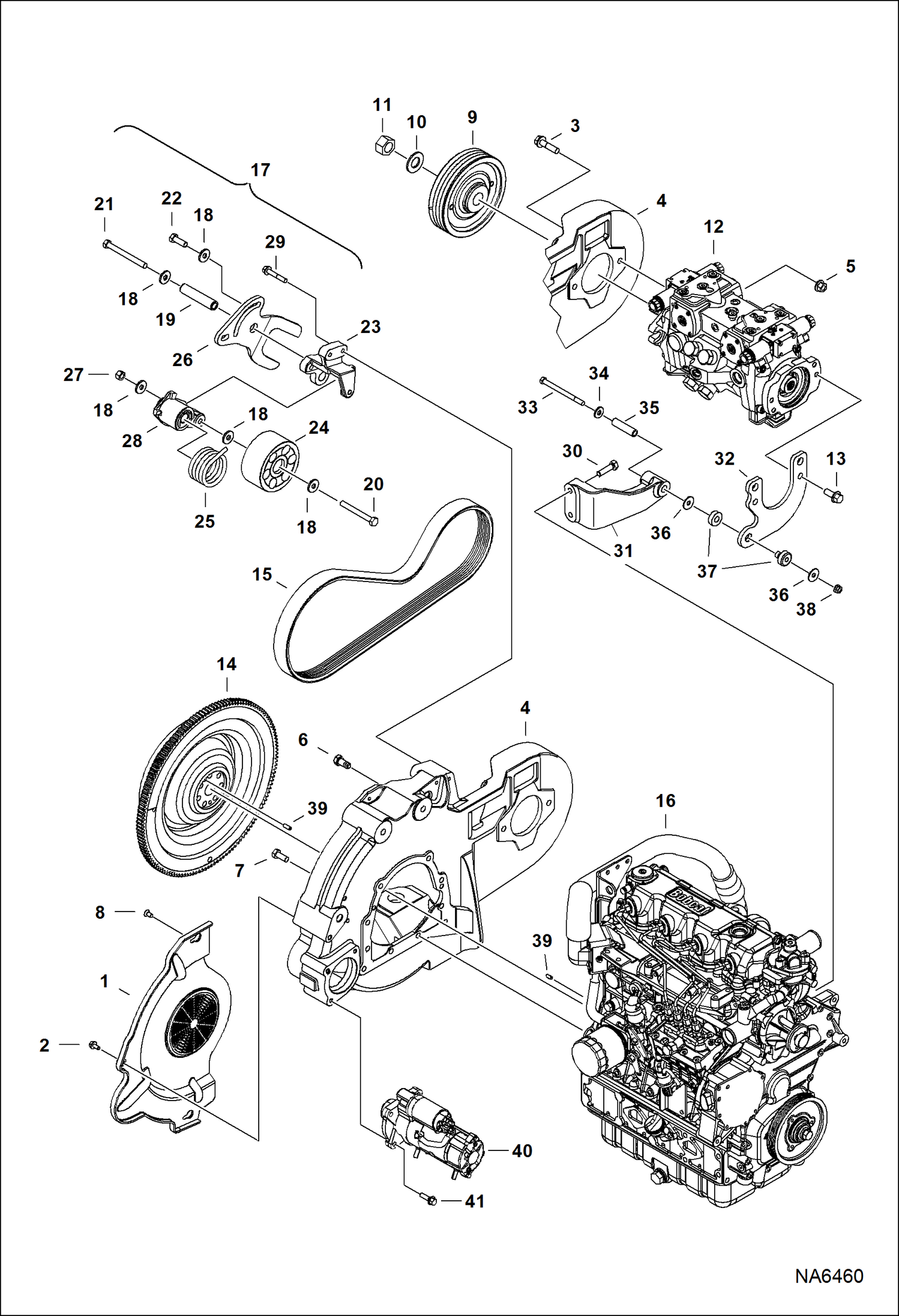

Запчасти Bobcat A-Series ENGINE & ATTACHING PARTS (Belt Drive) (S/N ASRW11101 & Above) POWER UNIT

1

7167651

SHIELD, BELT

2

59CM816

BOLT

3

31C832

BOLT

4

7204291

MOUNT, ENG/PUMP

5

83D8

NUT 5

6

6730894

BOLT

7

6719828

BOLT

8

7155238

BOLT

9

7139655

PULLEY, PUMP HYD SJC

10

6805550

WASHER

11

96D16

NUT

12

PUMP, HYD See Illustration HYDROSTATIC PUMP/ NA2992 - SJC

13

7131273

SCREW

14

7140925

FLYWHEEL, ENG ASSY W/ring gear

14

6665222

GEAR, RING STARTER

15

7197894

BELT, DRIVE

16

7020665

ENG, V3800DIT 92 HP EPA T2 / EU STG II See Illustration ENGINE & GASKET KITS/ NA6196

17

7141788

IDLER ASSY Ref. 18-28

18

7152658

WASHER

19

7152605

SLEEVE

20

7CM12100

BOLT

21

55CM12120

BOLT

22

55CM1235

BOLT

23

7131211

MOUNT

24

7167165

WHEEL, TENSIONER

25

7145358

SPRING

26

7174407

ARM, IDLER

27

53DM12

NUT

28

7167164

ARM, TENSIONER

29

49C636

BOLT

30

7135124

SCREW

31

7196558

MOUNT, PUMP

32

7193687

BRACKET, MOUNTING

33

17C680

BOLT

34

27E6

WASHER 5

35

7147350

SPACER, TUBE

36

6737388

WASHER

37

7149357

MOUNT, LOAD ISOLATOR

38

53D6

NUT

39

23JM0820

PIN

40

STARTER See Illustration STARTER/ B16488R

41

45C620

BOLT
