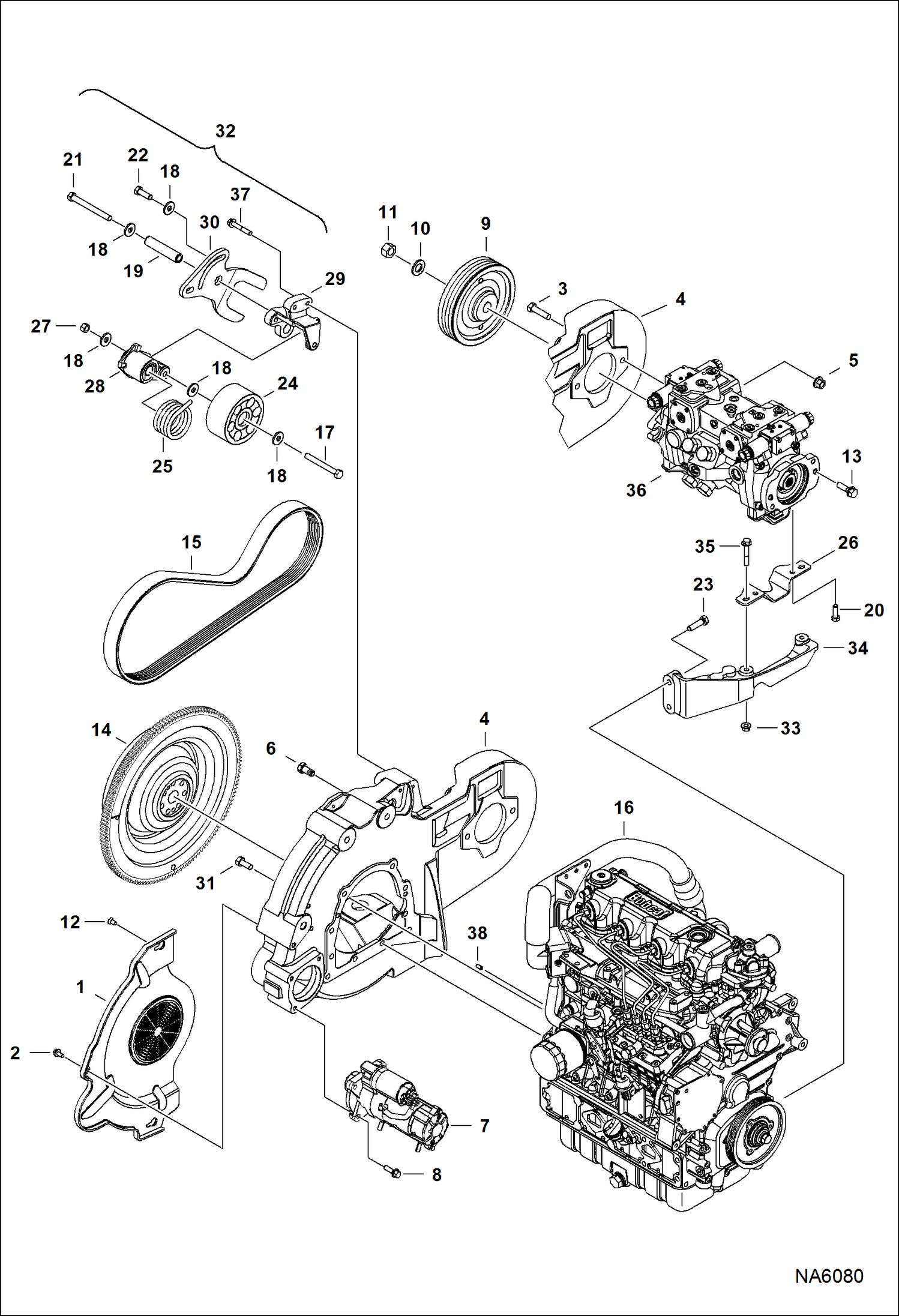

Запчасти Bobcat A-Series ENGINE & ATTACHING PARTS (Belt Drive) (S/N ASRW11001 - 11100) POWER UNIT

1

7167651

SHIELD, BELT

2

59CM816

BOLT

3

31C832

BOLT

4

7141037

MOUNT, ENG/PUMP

5

83D8

NUT 5

6

6730894

BOLT

7

STARTER See Illustration STARTER/ B16488R

8

45C620

BOLT

9

7139655

PULLEY, PUMP HYD SJC

10

6805550

WASHER

11

96D16

NUT

12

7155238

BOLT

13

7131273

SCREW

14

7140925

FLYWHEEL, ENG ASSY W/ring gear

14

6665222

GEAR, RING STARTER

15

7197894

BELT, DRIVE

16

7020665

ENG, V3800DIT 92 HP EPA T2 / EU STG II

17

7CM12100

BOLT

18

7152658

WASHER

19

7152605

SLEEVE

20

6688003

SCREW

21

55CM12120

BOLT

22

55CM1235

BOLT

23

7135124

SCREW

24

7167165

WHEEL, TENSIONER

25

7145358

SPRING

26

7010368

COVER Was 7194123 - A

27

53DM12

NUT

28

7167164

ARM, TENSIONER

29

7131211

MOUNT

30

7174407

ARM, IDLER

31

6719828

BOLT

32

7141788

IDLER ASSY Ref. 17-19, 21, 22, 24, 25 & 27-30

33

43DM10

NUT

34

7141475

MOUNT, PUMP

35

59CM1060

SCREW

36

PUMP, TANDEM See Illustration HYDROSTATIC PUMP/ NA2992

37

49C636

BOLT

38

23JM0820

PIN
