Запчасти Bobcat A-Series COOLING SYSTEM (Engine) POWER UNIT

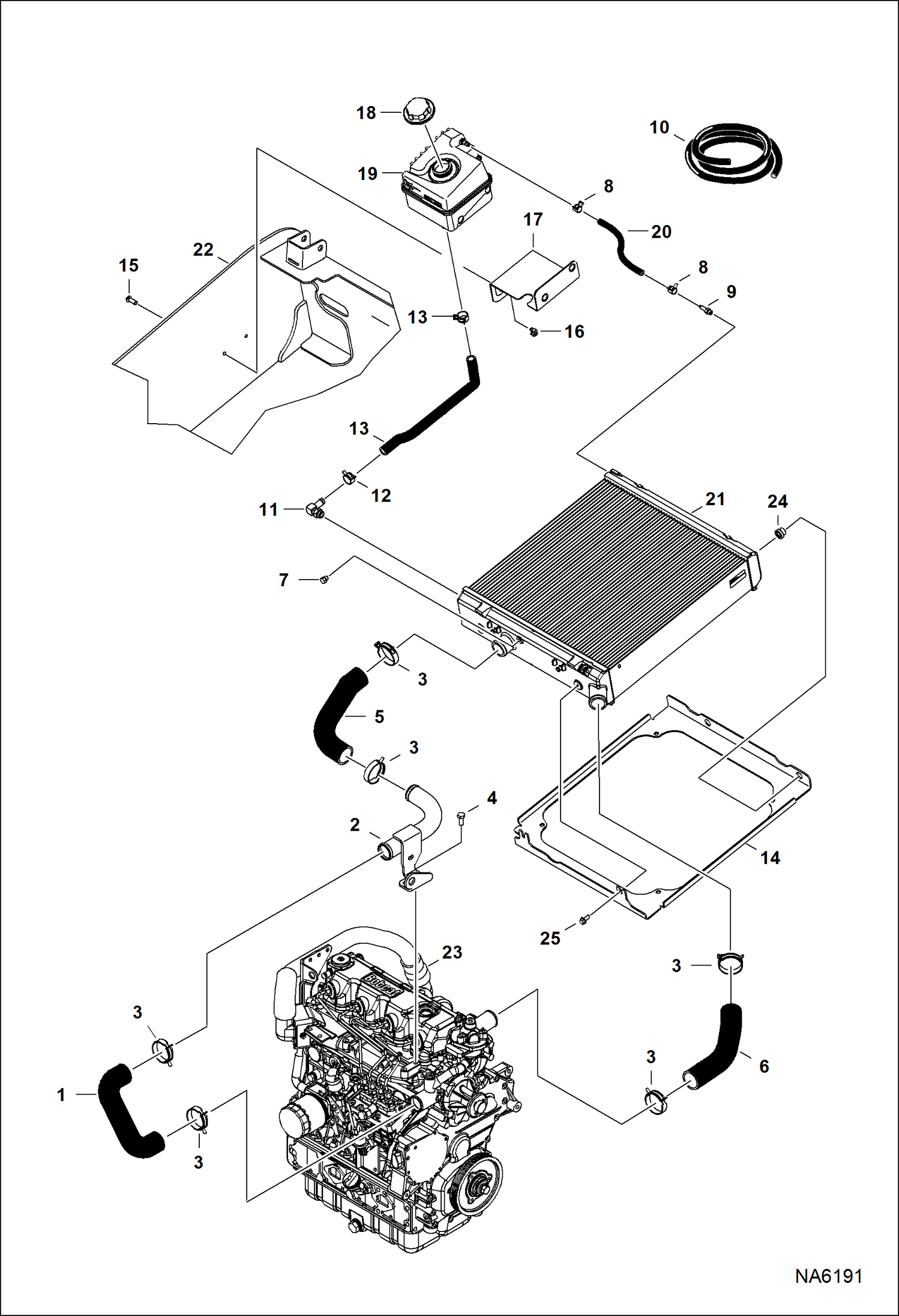

Схема запчастей Bobcat A-Series - COOLING SYSTEM (Engine) POWER UNIT

Артикул

Название

Примечание

Количество

1

7143880

HOSE, WATER FORMED

2

7154005

TUBE, COOLING

3

5HM55

CLAMP

4

6719825

BOLT

5

7143881

HOSE, WATER FORMED

6

7149473

HOSE, WATER FORMED

7

24K3

PLUG

8

5HM14

CLAMP

9

6734090

ADAPTER

10

6577822

HOSE bulk - sold per foot

11

6680952

FITTING 90 DEG BARB

11

79K8

O RING 10

12

5HM23

CLAMP

13

7170588

HOSE, WATER FORMED

14

MOUNT, EXCHANGER OIL See Illustration RADIATOR/COOLER ASSEMBLY/ NA2506

14

MOUNT, EXCHANGER OIL See Illustration RADIATOR/COOLER ASSEMBLY/ NA6372

15

53C516

BOLT

16

6678765

NUT

17

7144265

MOUNT, TANK

18

6733429

CAP

19

7137747

TANK, EXPANSION

20

HOSE NLA - 203,2 mm (8'') long - Order Ref. 10

21

EXCHANGER, OIL COOLER See Illustration RADIATOR/COOLER ASSEMBLY/ NA2506

22

MAIN FRAME See Illustration MAIN FRAME/ NA2871

23

7020665

ENG, V3800DIT 92 HP EPA T2 / EU STG II See Illustration ENGINE & GASKET KITS/ NA6196

24

7208181

BUSHING

25

45C512

BOLT

Выбрано товаров: 27
