Запчасти Bobcat A-Series TILT CYLINDER (LH) (538,7 mm - 21.21 Case Tube Length) (38,1 mm - 1.5 OD Shaft) (W/O Piston Collar) HYDRAULIC SYSTEM

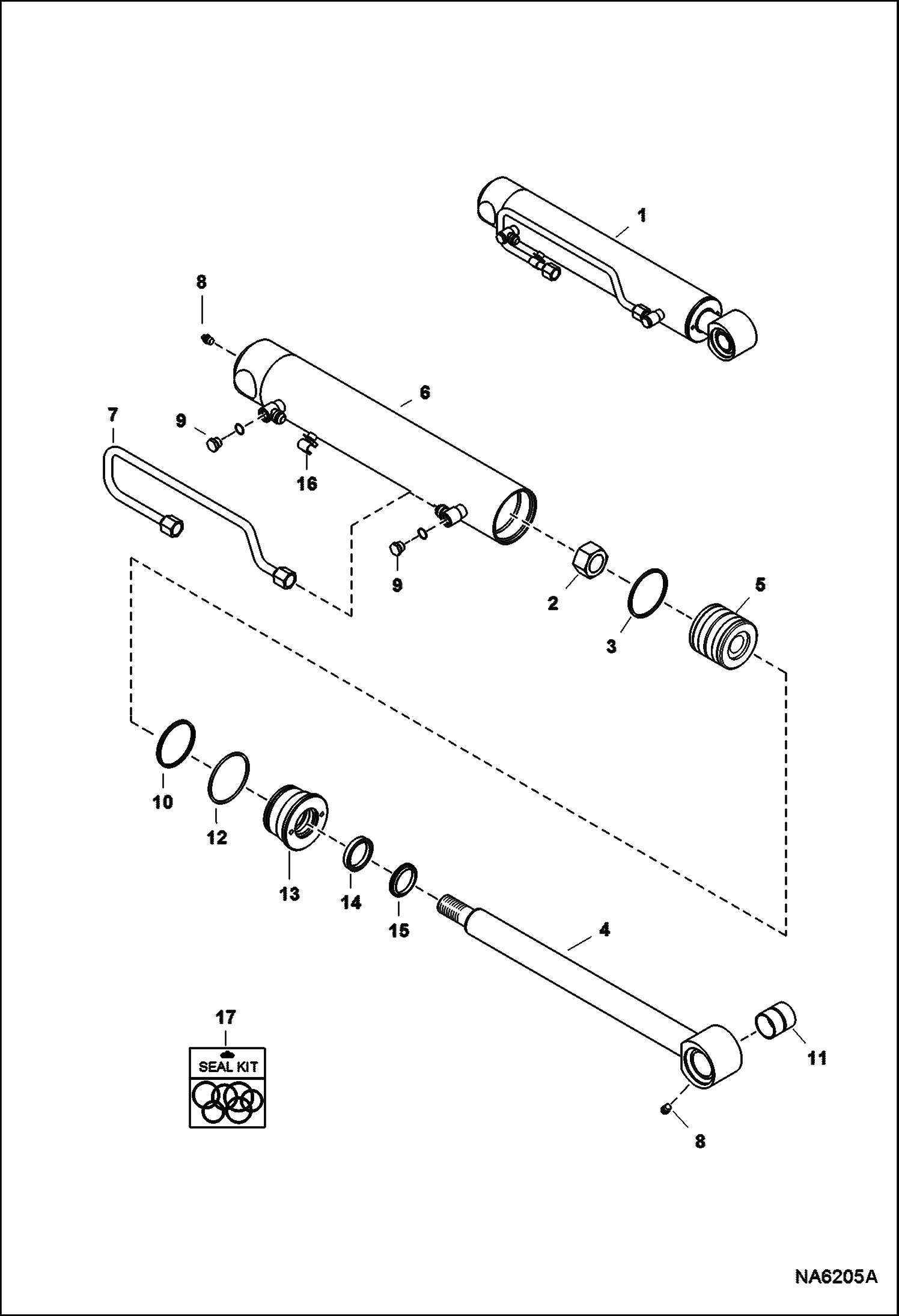

Схема запчастей Bobcat A-Series - TILT CYLINDER (LH) (538,7 mm - 21.21 Case Tube Length) (38,1 mm - 1.5 OD Shaft) (W/O Piston Collar) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER, TILT See BTI428 - NLA - Was 7222704 - C

2

6810539

NUT

3

6692325

SEAL, PISTON

4

SHAFT, ROD CYL See BTI428 - NLA - Was 7222646 - C

5

PISTON, CYL TILT See BTI428 - NLA - Was 7222649 - C

6

7222705

TUBE, CASE CYL TILT

7

7150467

TUBELINE, HYD

8

10H25

FITTING, GREASE 5

9

6812171

PLUG

10

7008355

SEAL, QUAD

11

7150182

BUSHING wear

12

58K234

O RING 10

13

7222644

HEAD, CYL TILT

14

6667326

SEAL

15

6690707

WIPER, ROD CYL

16

6690911

CLAMP

17

7225491

KIT, SEAL Ref. 2, 3, 10, 12, 14 & 15

Выбрано товаров: 17
