Запчасти Bobcat A-Series DRIVE TRAIN (S/N ASRW12550 & Above) DRIVE TRAIN

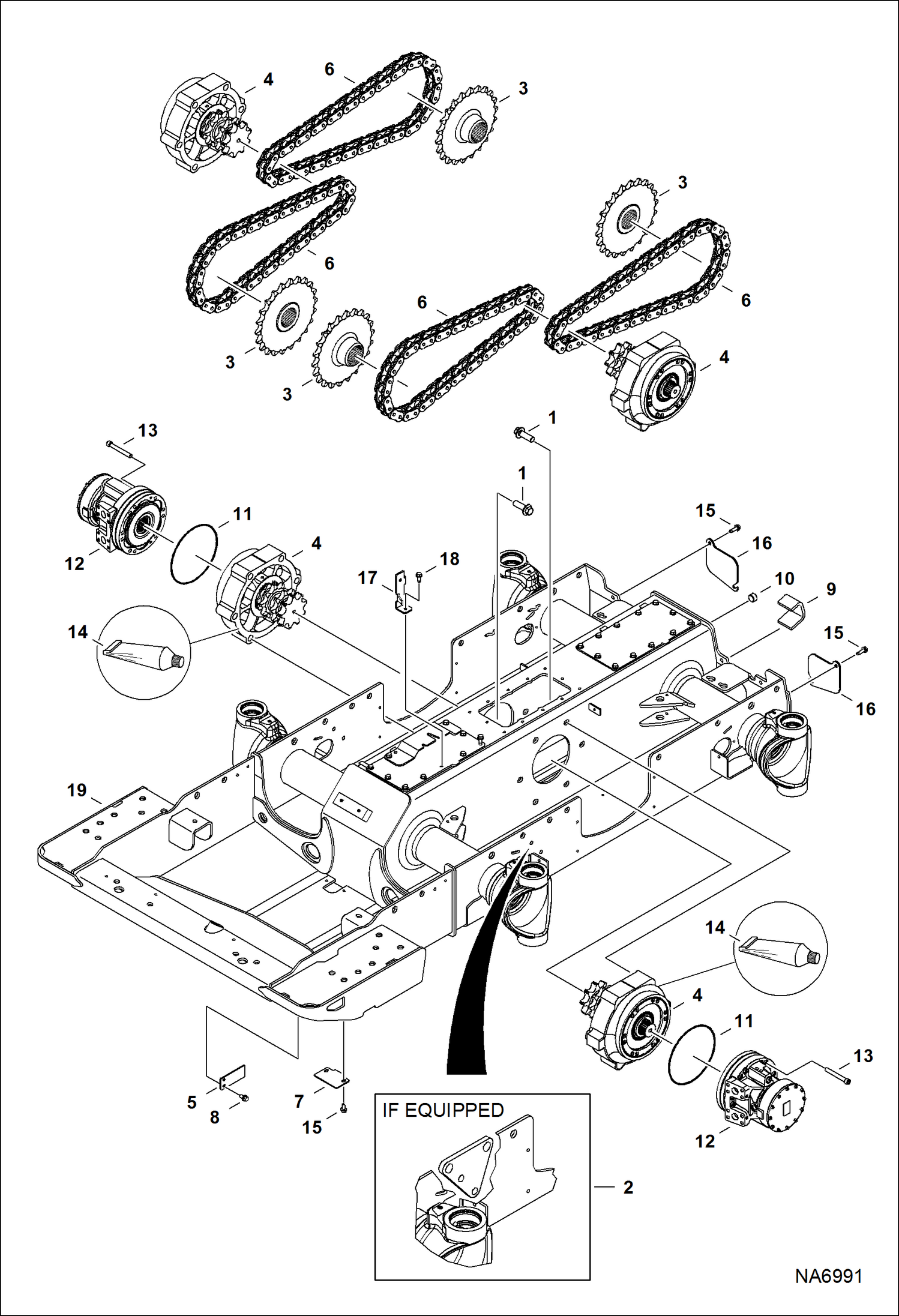

Схема запчастей Bobcat A-Series - DRIVE TRAIN (S/N ASRW12550 & Above) DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

6678971

BOLT

2

CHAINCASE NLA - W/ .5'' hyd control valve chaincase weld-on spacer plate - Order Ref. 19 W/ 7220859 valve mount & (2) ea of 31C824 bolt & 53D8 nut - Was 7217299

3

7134165

SPROCKET

4

CARRIER, MOTOR See Illustration MOTOR CARRIER/ NA2154

5

7223183

COVER, DRAIN

6

7106862

CHAIN, DRIVE

7

7190754

COVER, DRAIN

8

35C612

BOLT

9

6706485

HOOK weld-on

10

6731121

PLUG

10

7K12

FLANGE

11

25K30816

O-RING

12

6688363

MOTOR, DRIVE HYD 2-SPD See Illustration HYDROSTATIC MOTOR & BRAKE/ MS1467

13

6717806

BOLT

14

6685372

SEALANT, GASKET LIQUID 10.1 OZ tube - 0.57 kg (20 oz)

15

84G3712

BOLT 5

16

6737088

COVER, ACCESS

17

7151466

BRACKET

18

84G3716

SCREW 5

19

7217299

CHAINCASE W/O .5'' hyd control valve chaincase weld-on spacer plate

Выбрано товаров: 20
