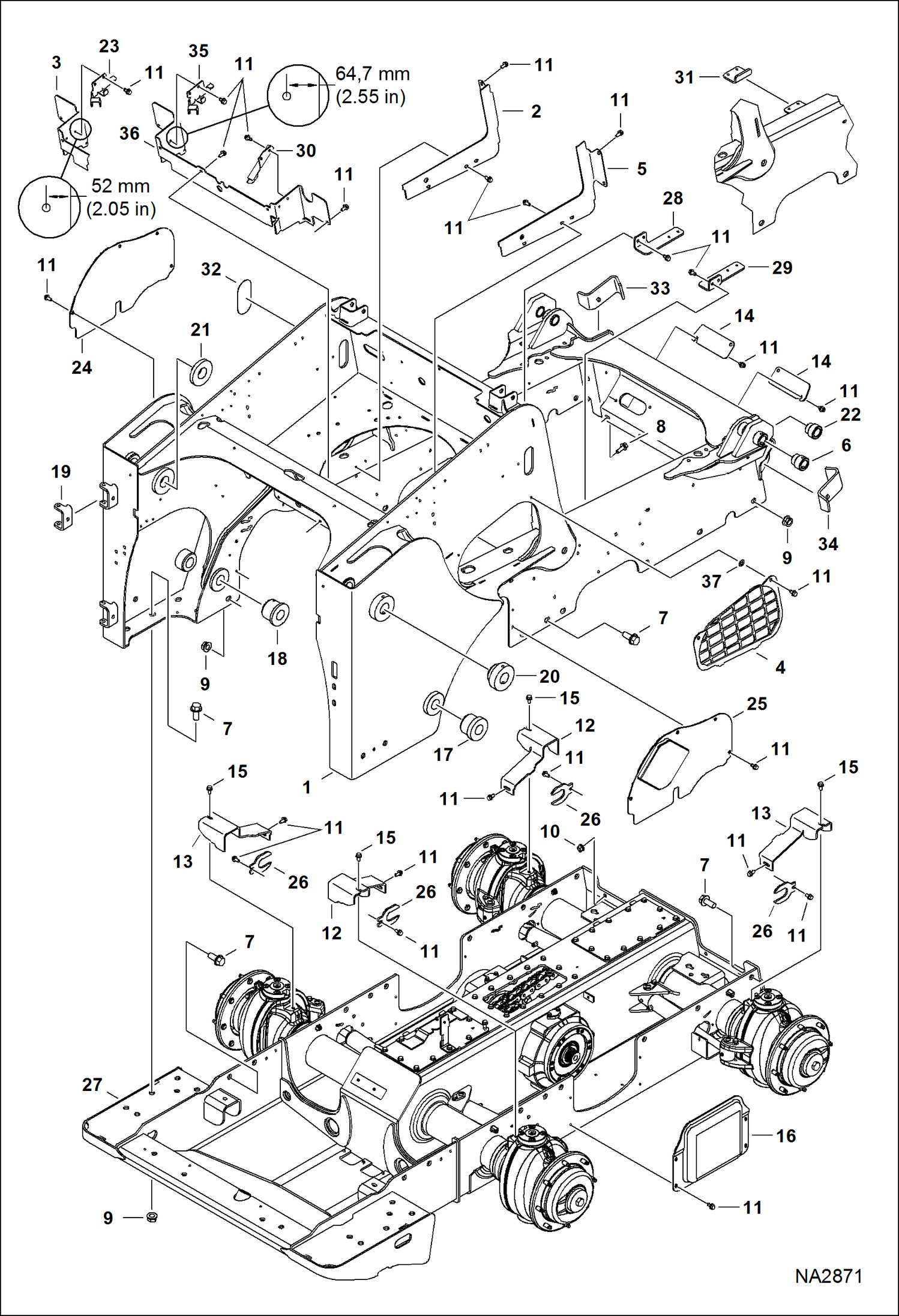

Запчасти Bobcat A-Series MAIN FRAME (S/N ASRW11001 - 11100) MAIN FRAME

1

7146294

MAIN FRAME

2

7200099

DUCT, AIR See Illustration COOLING SYSTEM/ NA2599 - LH - Was 7147264 - D

3

CROSSMEMBER NLA - Use W/Ref. 23 - See dimension on illustration - Order Ref. 35 & 36 - Was 7209535 - A

4

7186009

LOUVER, PLASTIC RH

4

7186010

LOUVER, PLASTIC LH

5

7200100

DUCT, AIR See Illustration COOLING SYSTEM/ NA2599 - RH - Was 7173128 - D

6

7162141

BUSHING, WELD-ON outside link

7

31C1228

BOLT

8

31C820

BOLT

9

53D12

NUT

10

83D8

NUT 5

11

84G3712

BOLT 5

12

7181019

SHIELD, SENSOR single speed

13

7181020

SHIELD, SENSOR

14

7159532

COVER, ACCESS

15

35C612

BOLT

16

7139459

COVER 2 speed

17

7141675

BUSHING, WELD-ON outside upright

18

7141674

BUSHING, WELD-ON inside upright

19

6708987

HINGE, WELD-ON

20

7134830

BUSHING, WELD-ON outside upright

21

7134831

BUSHING, WELD-ON inside upright

22

6717278

BUSHING, WELD-ON inside link

23

GUIDE, HOSE NLA - Use W/Ref. 3 - See dimension on illustration - Order Ref. 35 & 36 - Was 7200553 - A

24

7178452

COVER

25

7183121

COVER, PUMP HYD

26

7188041

SHIELD, CYL

27

7156566

CHAINCASE See Illustration DRIVE TRAIN/ NA6072

28

7202799

BRACKET, SUPPORT LH

29

7202800

BRACKET, SUPPORT RH

30

7210851

BRACKET

31

BRACKET, WELD-ON NLA - LH - Order Ref. 28

31

BRACKET, WELD-ON NLA - RH - Order Ref. 29

32

7194975

GAUGE, SIGHT

33

7155693

GUIDE LH - weld-on

34

7155692

GUIDE RH - weld-on

35

7218782

GUIDE, HOSE Use W/Ref. 36 - See dimension on illustration

36

7218781

CROSSMEMBER Use W/Ref. 35 - See dimension on illustration

37

6674264

RETAINER NUT
