Запчасти Bobcat A-Series SEAT (Suspension) (Air) ACCESSORIES & OPTIONS

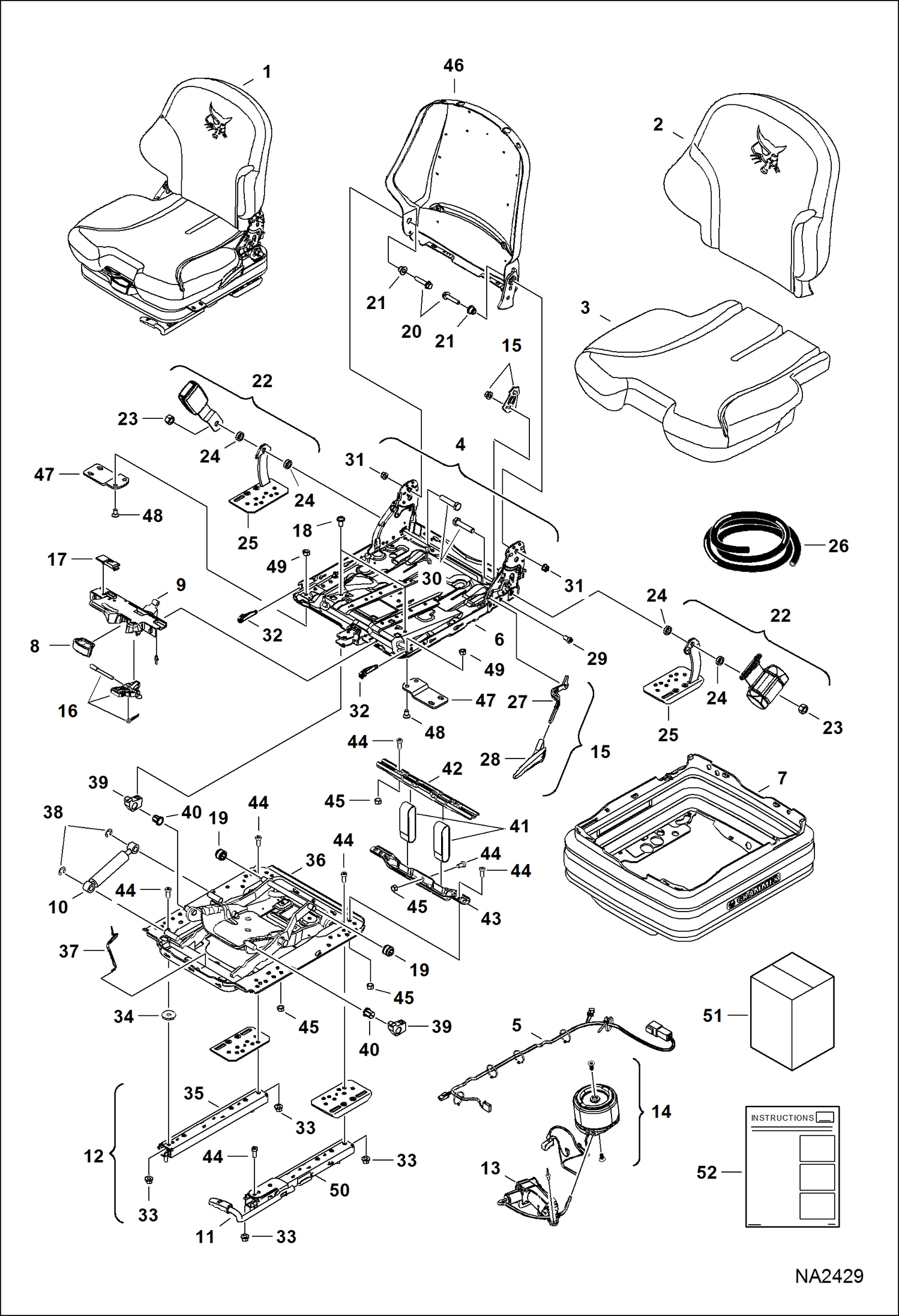

Схема запчастей Bobcat A-Series - SEAT (Suspension) (Air) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7167603

SEAT, OPERATOR SUSPENSION AIR Ref. 2-22 & 26-45

2

7010335

KIT, CUSHION SEAT VINYL backrest

3

7010336

KIT, CUSHION SEAT VINYL

4

7010338

KIT, BACKREST SEAT Ref. 20, 21 & 31

5

7011175

KIT, SWITCH SEAT

6

FRAME NSS

7

7011176

BELLOWS, SEAT CPL

8

7011177

HANDLE, ADJUSTING SEAT

9

7011178

HOUSING

9

SWITCH, COMPRESSOR NSS - Order Ref. 9

9

VALVE, BLEED OFF NSS - Order Ref. 9

10

7010342

KIT, ABSORBER SHOCK SEAT W/Ref. 38

11

7010343

KIT, LEVER ADJUSTING assy

12

7011179

KIT, RAIL SLIDE SEAT Ref. 33, 35 & 50 - handle not included

13

7011180

COMPRESSOR, AIR SEAT

13

HOSE NSS - Order Ref. 13

14

7011181

KIT, SPRING AIR

15

7010346

KIT, BACKREST SEAT Ref. 27, 28 & 29

16

7011182

KIT, LEVER

17

COVER NSS - Order Ref. 9

18

BOLT NSS

19

BUSHING NSS - white plastic - Order Ref. 51

20

BOLT NSS

21

BUSHING NSS

22

7010345

KIT, TETHER SEAT BELT Ref. 23-25 - not included

23

NUT NSS - Order Ref 22

24

BUSHING NSS - Order Ref 22

25

PLATE, TETHER NSS - Order Ref 22

26

SEAL NSS

27

LEVER NSS - Order Ref 15

28

HANDLE NSS - grey - Order Ref. 15

29

BOLT NSS - Order Ref 15

30

BOLT NSS - Order Ref 4

31

NUT NSS - Order Ref 4

32

CLIP NSS - plastic

33

NUT NSS

34

WASHER NSS

35

RAIL, SLIDE NSS - Order Ref 12

36

FRAME, SUSPENSION NSS - Order Ref 1

37

LEVER, GAUGE NSS - white plastic - Order Ref. 51

38

CLIP NSS - Order Ref 10

39

BLOCK, STOP NSS - Order Ref. 51

40

BUSHING NSS - Order Ref. 51

41

STRAP, TETHER NSS - white

42

MOUNT NSS

43

MOUNT NSS

44

BOLT NSS

45

NUT NSS

46

MOLDING, SEAT NSS

47

7011183

KIT, BRACKET SEAT W/Ref. 48 & 49

48

BOLT NSS - Order Ref. 47

49

NUT NSS - Order Ref. 47

50

RAIL, SLIDE NSS - Order Ref. 12

51

7025560

KIT, REPAIR Ref. 18 (2), 19, 37, 39 (2) & 40 (2)

52

6987249

INSTRUCTIONS

Выбрано товаров: 55
