Запчасти Bobcat A-Series SEAT BELT - 3 (Three Point Retractable) ACCESSORIES & OPTIONS

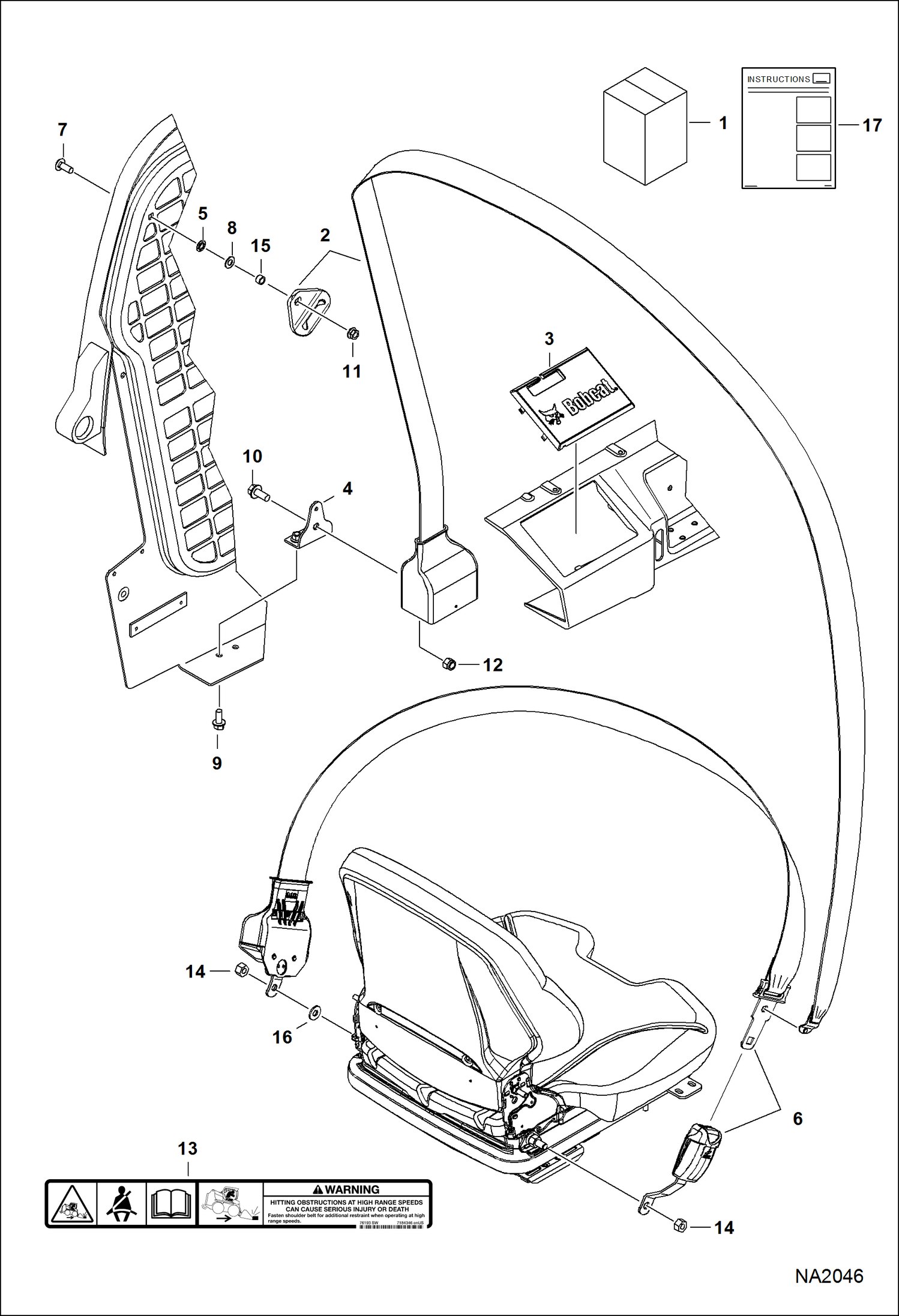

Схема запчастей Bobcat A-Series - SEAT BELT - 3 (Three Point Retractable) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7169480

KIT, BELT SEAT 3'' Ref. 2-17

2

7152322

BELT, SEAT 2''

3

7152323

COVER, RETRACTOR

4

7152324

BRACKET, BELT SEAT 3PT

5

6674264

RETAINER NUT

6

7168172

BELT, SEAT 3''

7

10C616

BOLT 10

8

29E6

WASHER

9

43C612

BOLT

10

31C716

SCREW

11

53D6

NUT

12

59D7

NUT

13

7184346

DECAL WARNING

14

86D7

NUT not in kit

15

7184341

BUSHING

16

25E18

WASHER

17

6987248

INSTRUCTIONS

Выбрано товаров: 17
