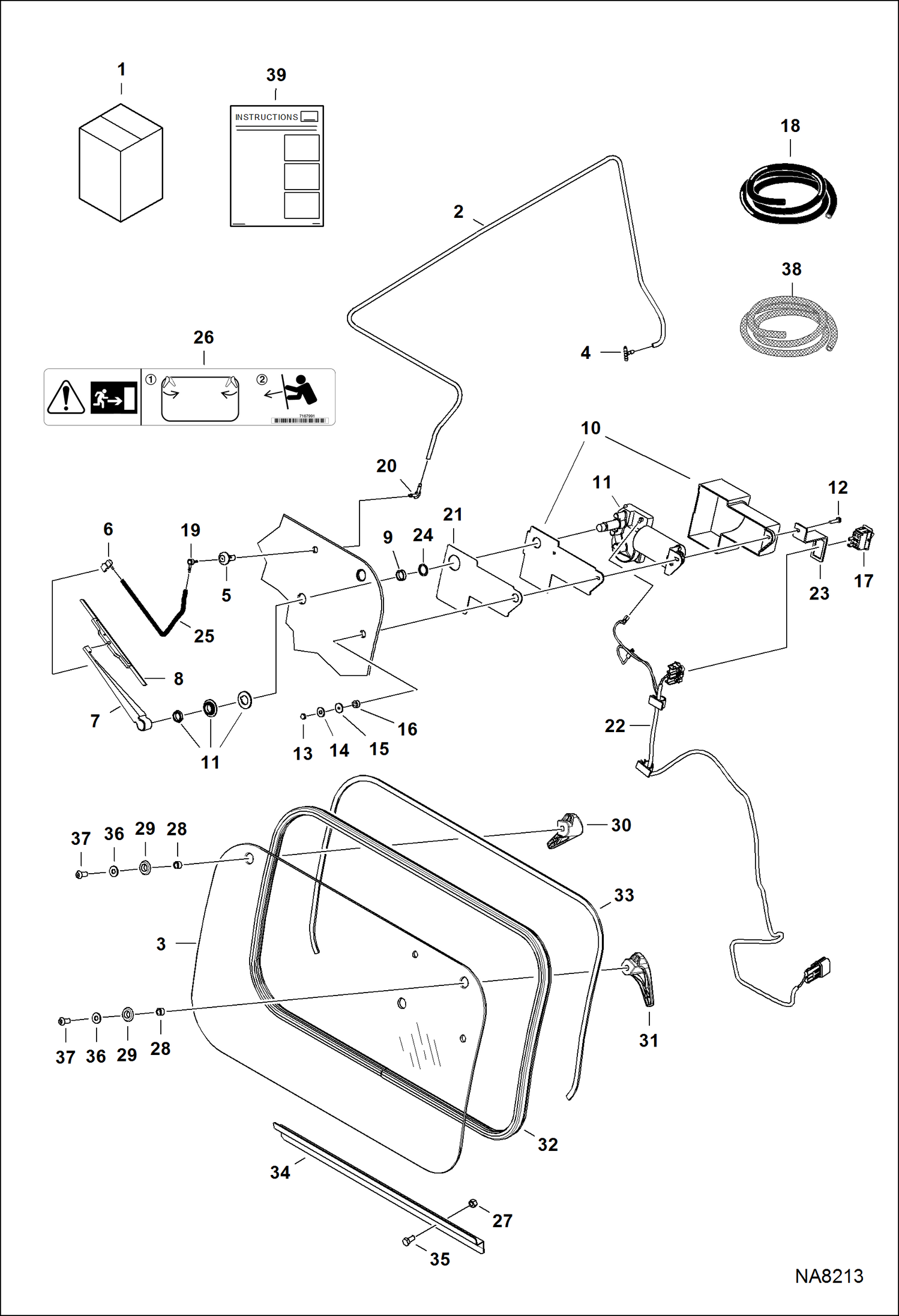

Запчасти Bobcat A-Series REAR WIPER KIT (666 mm) (26.2) x (379 mm) (14.92) Cab Opening ACCESSORIES & OPTIONS

1

7225133

KIT, WIPER REAR Ref. 2-38

2

HOSE NLA - 2438 mm (96'') long - Order Ref. 18

3

7225145

WINDOW, CAB REAR

4

6676000

TEE

5

7167177

GROMMET WIPER

6

6676028

NOZZLE

7

6676001

ARM

8

6676002

BLADE

9

6667201

SPACER

10

6664097

COVER

11

6665602

MOTOR

12

87G1014

SCREW, MACHINE

13

6664103

NUT

14

6664065

WASHER nylon

15

6801059

WASHER neoprene

16

6664085

BUSHING nylon

17

6675999

SWITCH

18

6676003

HOSE, BULK/FT black - 0.109'' ID - sold per foor

19

6676500

ELBOW exterior

20

6676917

ELBOW interior

21

7172119

SEAL, FOAM

22

7180207

HARNESS, WIPER

23

7172708

BRACKET, SWITCH

24

7172121

WASHER

25

HOSE 305 mm (12'') long - Order Ref. 18

26

7167991

DECAL, EXIT REAR

27

95D5

NUT

28

6802539

SPACER

29

7121425

BUSHING

30

7150151

LATCH, WINDOW LEFT

31

7150152

LATCH, WINDOW RIGHT

32

7163988

SEAL, WINDOW REAR

33

7204102

FOAM SEAL

34

7224369

CHANNEL

35

17C510

BOLT

36

25E14

WSHR

37

53C512

SCREW

38

6990917

INSTRUCTIONS
