Запчасти Bobcat A-Series POWER BOB-TACH (Valve) ACCESSORIES & OPTIONS

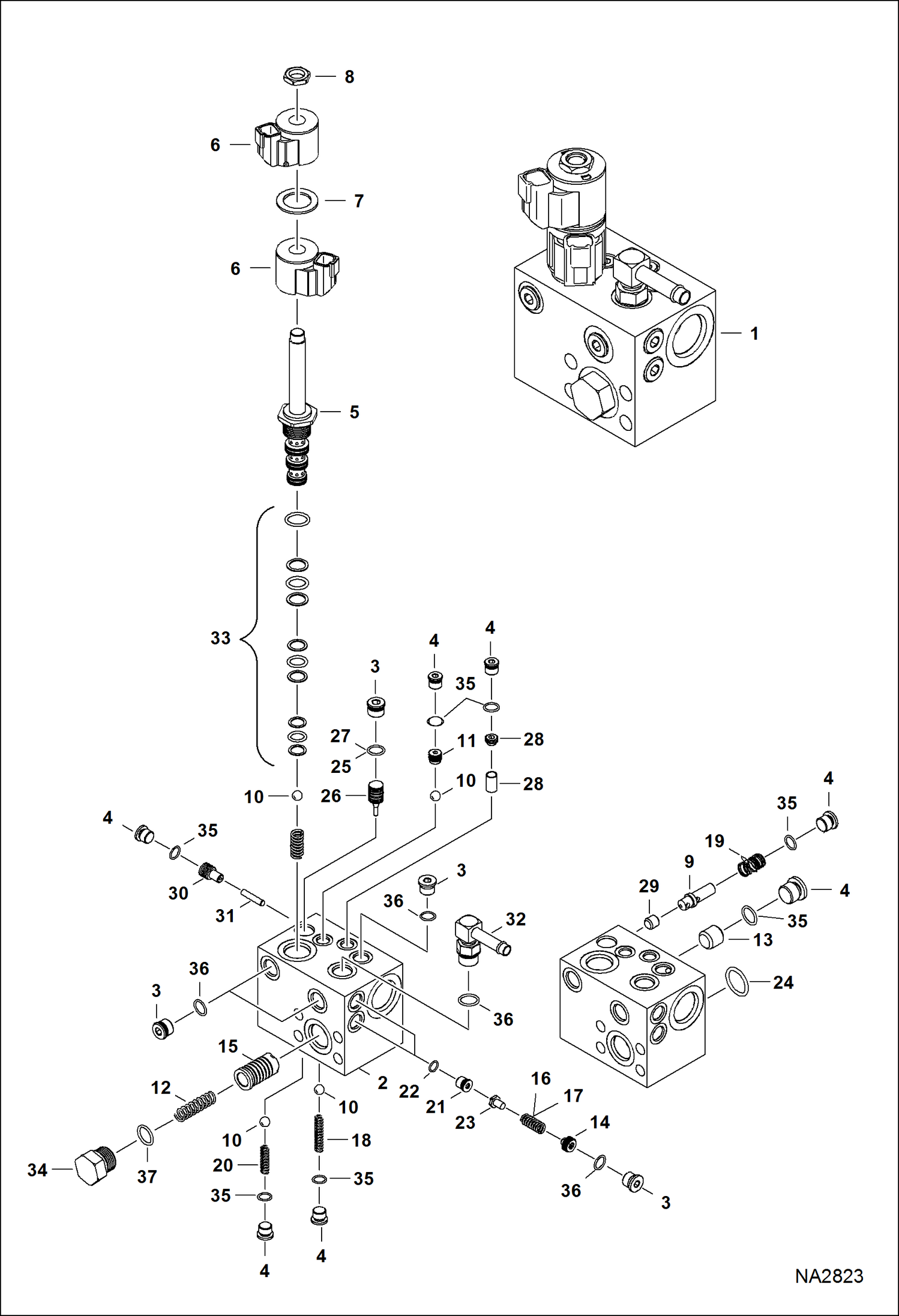

Схема запчастей Bobcat A-Series - POWER BOB-TACH (Valve) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7022766

VALVE, POWER BOB-TACH Ref. 2-37 - Was 7010992

2

BLOCK NLA - Order Ref. 1

3

6669620

PLUG

4

6665719

PLUG Was 6669727 - A

5

6673986

SPOOL, VALVE

6

7010006

COIL

7

6689389

SPACER

8

7020647

NUT

9

7020648

SPOOL

10

6678705

BALL

11

7008561

SEAT, SHUTTLE

12

7020649

SPRING

13

6669615

ORIFICE 0.020 dia. - Was 6664029 - A

14

7020604

PLUG

15

7020650

SPOOL

16

7020651

SPRING

17

7020607

SPRING

18

7020652

SPRING

19

7020653

SPRING

20

7020654

SPRING

21

7020606

PLUG

22

7020655

O-RING

23

7020605

POPPET

24

6690299

O-RING

25

7020656

RING, BACK-UP

26

7020657

PISTON

27

6678837

O-RING

28

7020658

FILTER CARTRIDGE

29

7020659

ORIFICE

30

7020660

GUIDE

31

7020661

SHAFT

32

6727313

ELBOW

33

6672756

KIT, SEAL Was 6673835 - A

34

7008556

PLUG

35

79K3

O RING 10

36

79K6

O RING 10

37

79K10

O RING 10

Выбрано товаров: 37
