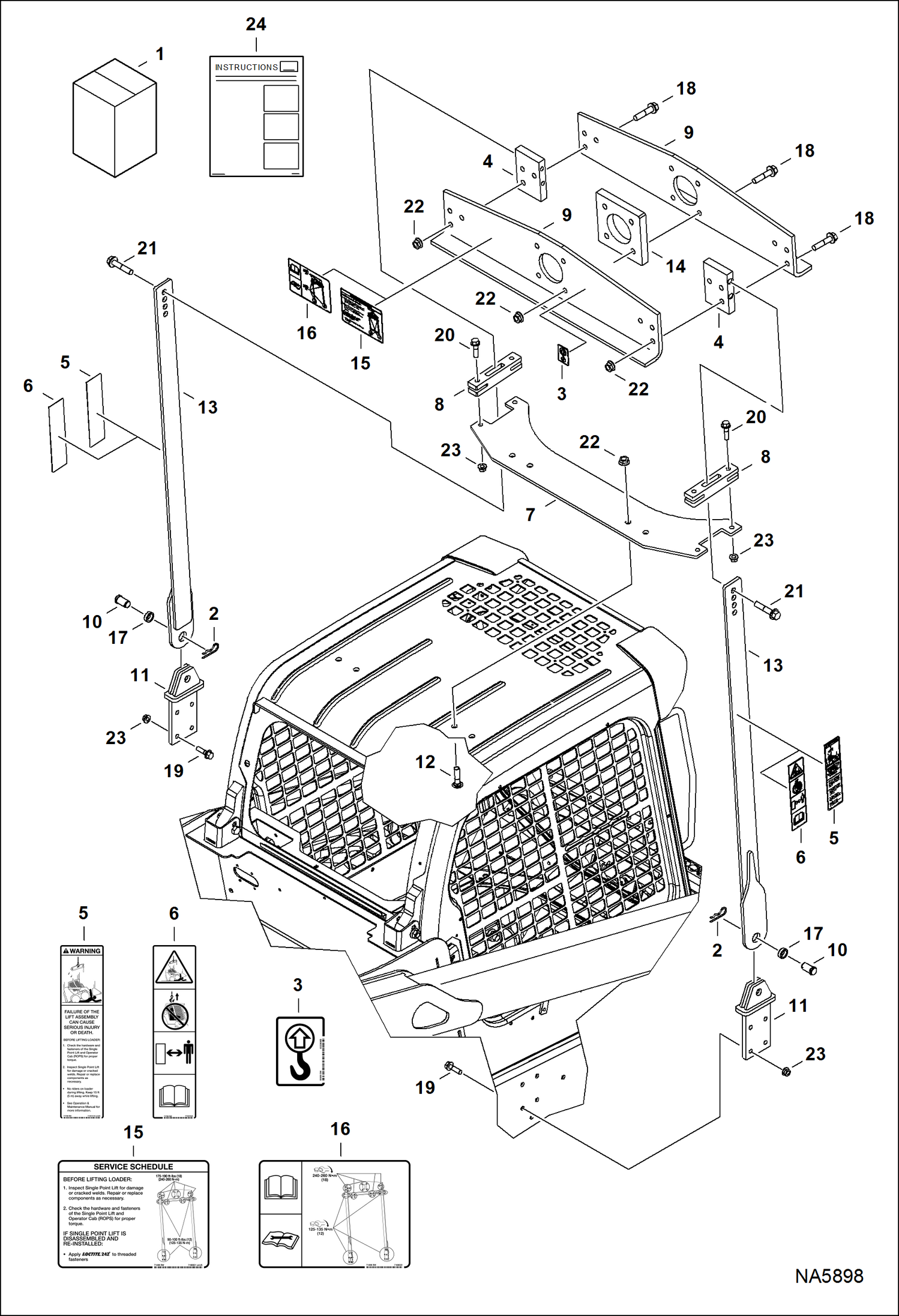

Запчасти Bobcat A-Series LIFT KIT (Single Point) (S/N A3P612375 & Above, A3P712319 & Above) ACCESSORIES & OPTIONS

1

7226713

KIT, LIFT SINGLE POINT Ref. 2-24

1

RESEALING PLUG KIT See Illustration RESEALING KIT/ NA2775

2

1320075

PIN, COTTER

3

6533898

DECAL

4

7126682

BLOCK

5

7142141

DECAL

6

7142142

DECAL

7

7159102

MOUNT

8

7160760

MOUNT

9

7160779

PLATE

10

7161536

PIN, CLEVIS

11

7229198

MOUNT, LIFT KIT

12

7164686

BOLT, CARRIAGE

13

7166334

ARM LIFT

14

7166831

BLOCK

15

7168021

DECAL

16

7168022

DECAL

17

7168159

BUSHING

18

31C1044

BOLT

19

31C828

BOLT

20

31C832

BOLT

21

49C1048

BOLT

22

53D10

NUT

23

53D8

NUT

24

6990240

INSTRUCTIONS
