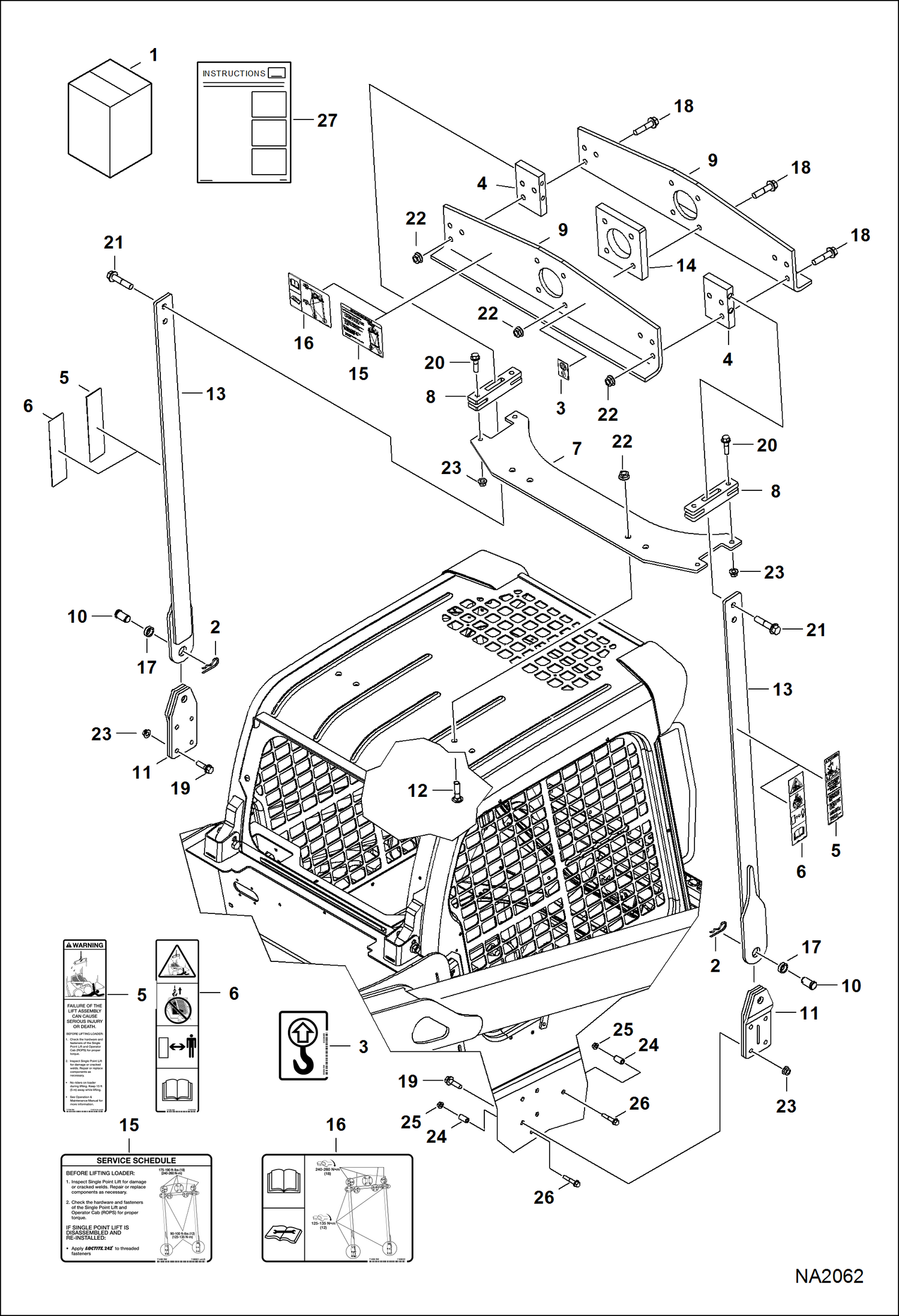

Запчасти Bobcat A-Series LIFT KIT (Single Point) (S/N A3P611001 - 12374, A3P711001 - 12318) ACCESSORIES & OPTIONS

1

7193579

KIT, LIFT SINGLE POINT Ref. 2-27 - Was 7129295 - A

1

RESEALING PLUG KIT See Illustration RESEALING KIT/ NA2775

2

1320075

PIN, COTTER

3

6533898

DECAL

4

7126682

BLOCK

5

7142141

DECAL

6

7142142

DECAL

7

7193584

MOUNT, LIFT KIT Was 7159102

8

7160760

MOUNT

9

7160779

PLATE

10

7161536

PIN, CLEVIS

11

7163748

MOUNT

12

7164686

BOLT, CARRIAGE

13

7166334

ARM LIFT

14

7166831

BLOCK

15

7168021

DECAL

16

7168022

DECAL

17

7168159

BUSHING

18

31C1044

BOLT

19

31C828

BOLT

20

31C832

BOLT

21

49C1048

BOLT

22

53D10

NUT

23

53D8

NUT

24

7199872

SPACER, TUBE

25

97D6

NUT 10

26

31C632

BOLT

27

6990240

INSTRUCTIONS Was 6987217 - A
