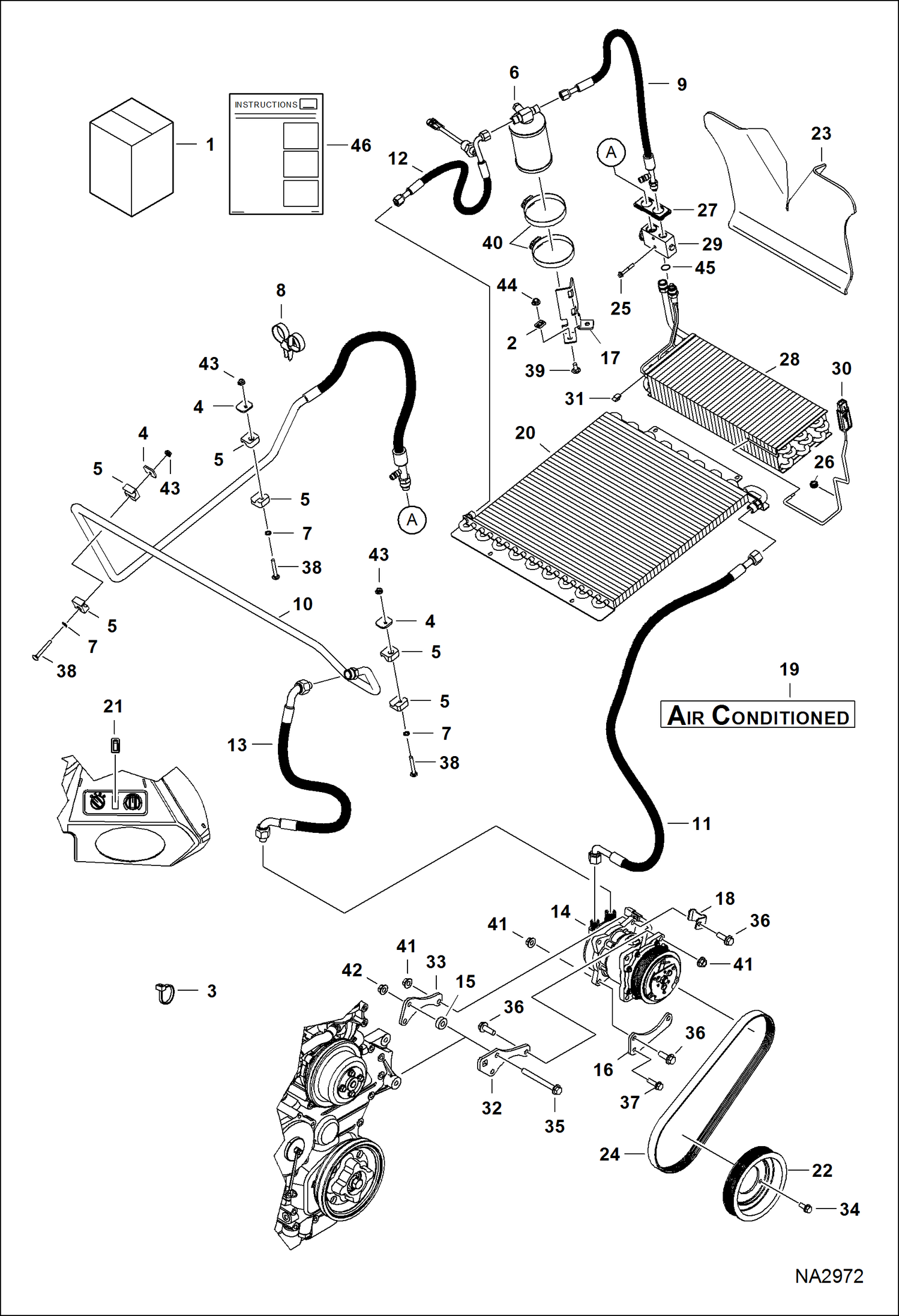

Запчасти Bobcat A-Series HEATER & A/C (A/C Kit) (S/N A3P611001 - 11541, A3P711001 - 11565) ACCESSORIES & OPTIONS

1

7198713

KIT, A/C Ref. 2-46

2

774220

NUT

3

6624289

STRAP, TIE

4

6665102

COVER

5

6666920

CLAMP, HALF

6

6674235

RECEIVER DRIER

7

6675212

RETAINER

8

6678668

STRAP, DUAL TIE

9

6697915

HOSE

9

7009976

O-RING #6

10

6698285

HOSE, A/C ASSY

10

7009978

O-RING #10

11

6698288

HOSE, A/C ASSY

11

7009977

O-RING #8

12

6698289

HOSE, A/C ASSY

12

6675779

SWITCH, PRESS

12

7009976

O-RING #6

13

6698290

HOSE, A/C ASSY

13

7009978

O-RING #10

14

7023580

COMPRESSOR, A/C Was 6698590 - B

15

7140611

SPACER

16

7141594

BRACKET, COMPRESSOR A/C

17

7228298

BRACKET Was 7151848 - A

18

7164564

BRACKET, A/C

19

7166916

DECAL, A/C not in kit

20

7024834

CONDENSER, A/C Was 7167588 - A

21

7169112

SWITCH, ROCKER A/C

22

7169128

PULLEY A/C Was 7134551 - A

22

7197904

PULLEY 102 mm (4'') mounting bolt circle

23

7173651

INSULATION, HEATER

24

7174707

BELT, COMPRESSOR A/C

25

7192371

BOLT

26

7193531

GROMMET

27

7193533

GROMMET

28

7193535

EVAPORATOR

29

6675534

BLOCK, VALVE A/C Was 7193538 - D

30

7193539

THERMOSTAT

31

7193785

CLIP

32

7195527

MOUNT, COMPRESSOR A/C

33

7196605

MOUNT

34

59CM816

BOLT Was 7197533 - A

35

1CM10100

SCREW

36

29CM1030

BOLT

37

29CM830

CAPSCREW

38

37C432

SCREW

39

37C512

BOLT

40

44H48

CLAMP

41

51DM10

NUT

42

53DM10

NUT

43

55D4

NUT

44

55D5

NUT

45

7009977

O-RING #8

46

6990077

INSTRUCTIONS
