Запчасти Bobcat A-Series CAB WINDOWS (Side) (Glass) ACCESSORIES & OPTIONS

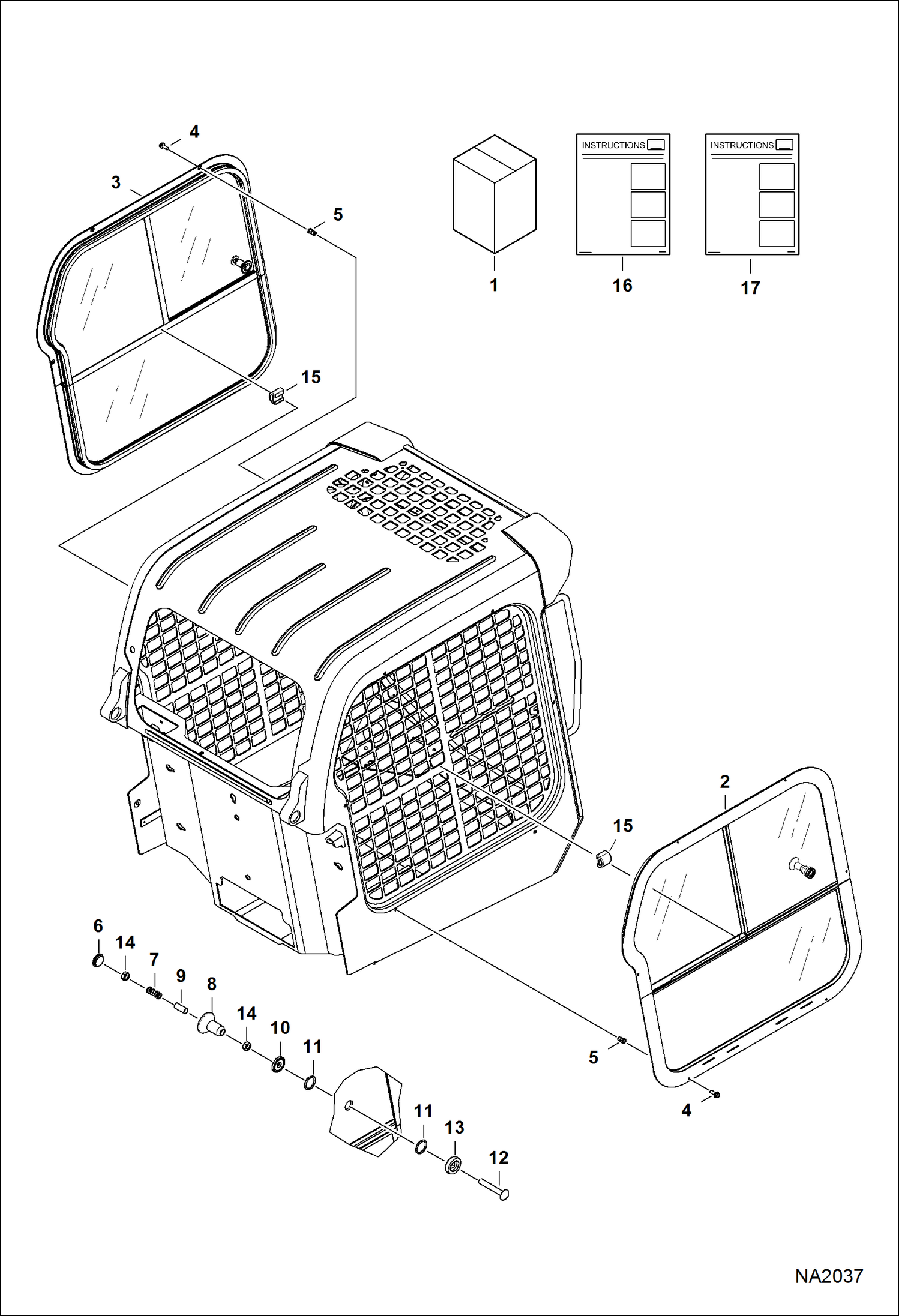

Схема запчастей Bobcat A-Series - CAB WINDOWS (Side) (Glass) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7128342

KIT, WINDOW SIDE Ref. 2-15

2

7148068

WINDOW ASSY RH - W/Ref. 10-13

3

7148069

WINDOW ASSY LH - W/Ref. 10-13

4

35C412

BOLT

5

7154910

INSERT, THREADED

6

7010357

CAP, END

7

7010358

SPRING

8

7010359

KNOB

9

7010360

SLEEVE

10

BUSHING NLA - inner - Order Ref. 2 or 3

11

SEAL NLA - Order Ref. 2 or 3

12

BOLT NLA - Order Ref. 2 or 3

13

BUSHING outer - Order Ref. 2 or 3

14

7010365

NUT

15

6987228

INSTRUCTIONS

Выбрано товаров: 15
