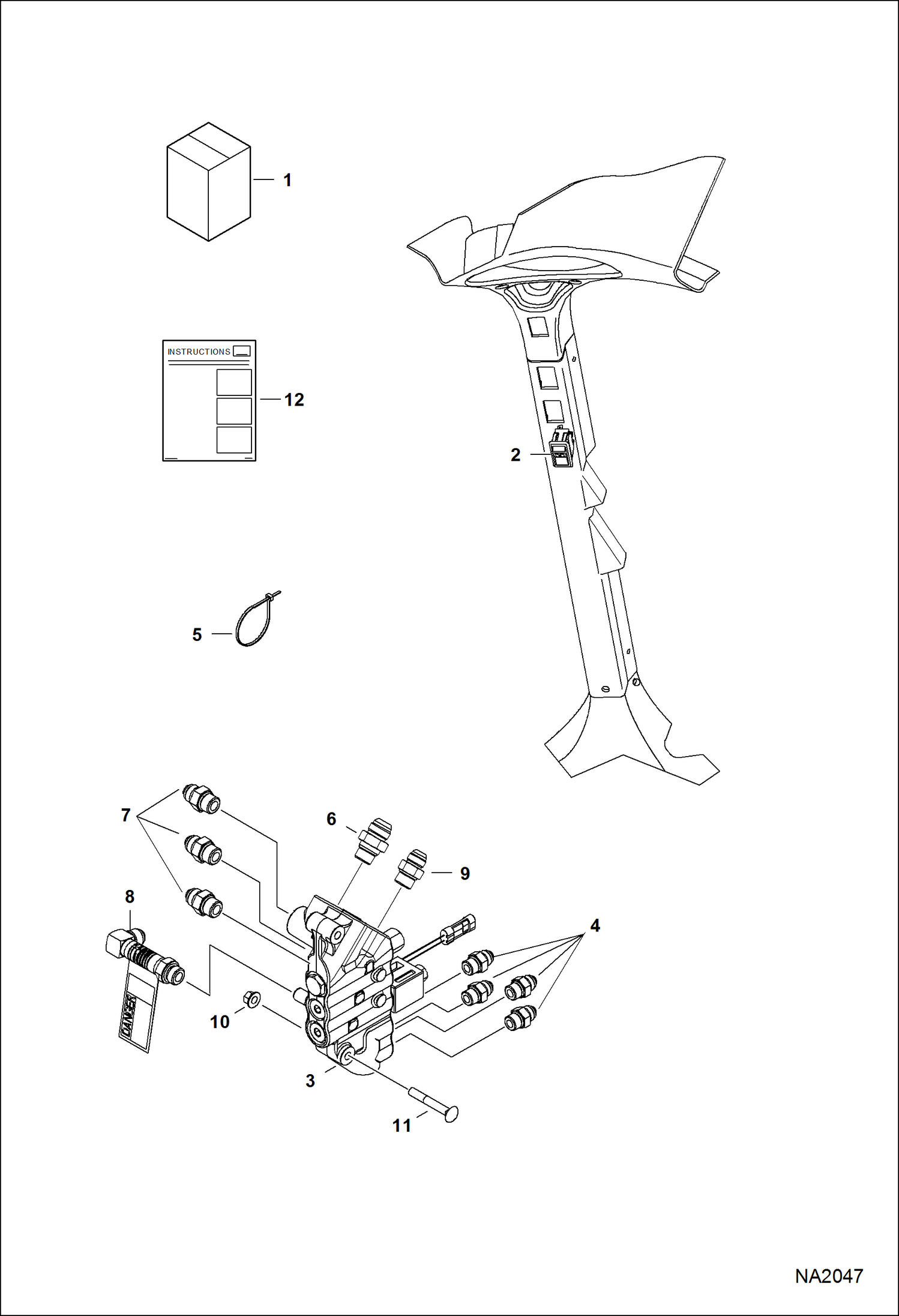

Запчасти Bobcat A-Series BUCKET POSITION VALVE KIT ACCESSORIES & OPTIONS

1

7128442

KIT, BPV Ref. 2-8, 10 & 11

2

6690947

SWITCH, BPV

3

7011060

VALVE, BPV See Illustration BUCKET POSITION VALVE/ NA2550 Was 7011040 - B,D

4

15KB0808

FITTING, HYD CONNECTOR 600 & 700 models

4

79K8

O RING 10

4

15KB0608

FITTING, HYD CONNECTOR 500 models

4

79K8

O RING 10

5

6624289

STRAP, TIE

6

15KB1210

FITTING, HYD CONNECTOR

6

79K10

O RING 10

7

15KB1010

FITTING, HYD CONNECTOR

7

79K10

O RING 10

8

7183605

KIT, FITTING W/DECAL 600 & 700 models

8

7211446

KIT, FITTING W/DECAL 500 models

9

83D6

NUT 5 See Illustration HYDRAULIC CIRCUITRY/ NA2910 - not in kit

10

37C644

BOLT See Illustration HYDRAULIC CIRCUITRY/ NA2910

11

6987250

INSTRUCTIONS
