Запчасти Bobcat A-Series LOWER GASKET KIT POWER UNIT

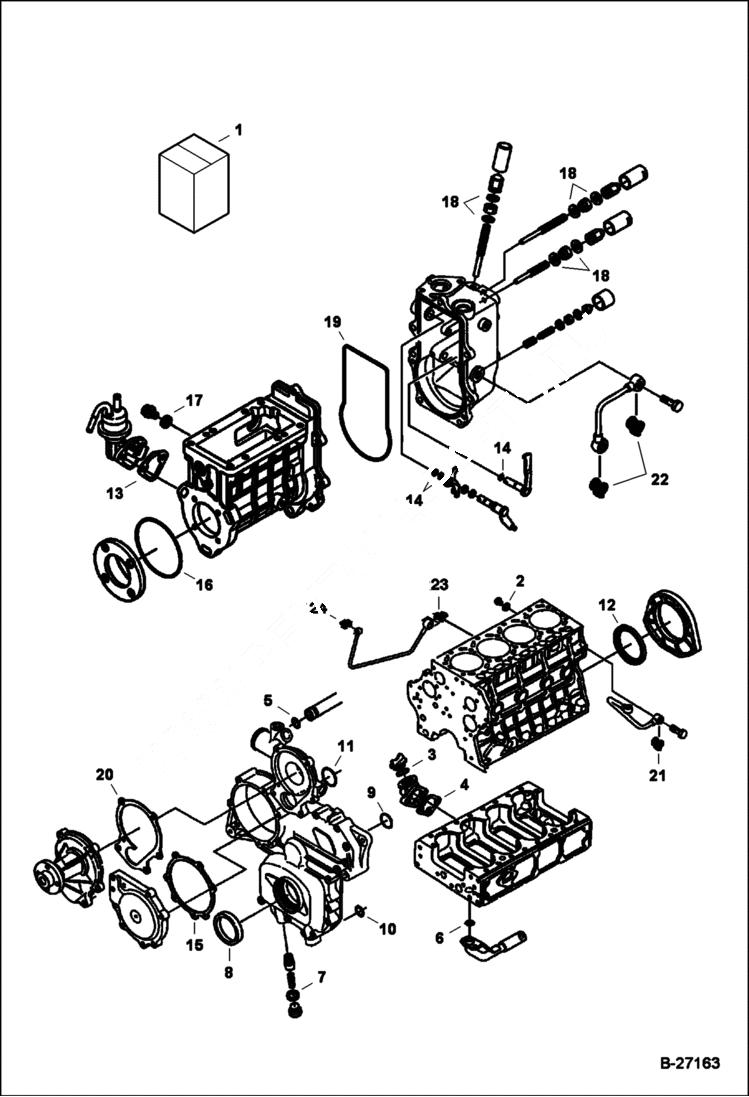

Схема запчастей Bobcat A-Series - LOWER GASKET KIT POWER UNIT

Артикул

Название

Примечание

Количество

1

6698579

KIT, GASKET ENG LOWER Ref. 2-22 - Also Order Ref. 23 & 24

2

6652751

GASKET See Illustration PISTON & CRANKSHAFT/ B27170

3

6684782

O-RING See Illustration OIL PAN/ B27169 - oil filler cap

4

6685923

GASKET See Illustration OIL PAN/ B27169 - oil filler flange

5

6685971

O-RING See Illustration OIL PAN/ B27169

6

6680661

O-RING See Illustration OIL PAN/ B27169

7

6670347

GASKET See Illustration FRONT COVER/ NA2746

8

6680680

SEAL See Illustration FRONT COVER/ NA2746 - front oil

9

6680681

O-RING See Illustration FRONT COVER/ NA2746

10

6680682

O-RING See Illustration FRONT COVER/ NA2746

11

6680855

O-RING See Illustration FRONT COVER/ NA2746

12

6680705

SEAL See Illustration FRONT COVER/ NA2746 - rear oil

13

7010133

GASKET, PUMP FUEL See Illustration FUEL INJECTION SYSTEM/ B27293

14

6683023

O-RING See Illustration GOVERNOR/ B27176

15

6685948

GASKET See Illustration FUEL INJECTION SYSTEM/ B27293 - front cover

16

6698539

GASKET, PUMP INJ See Illustration FUEL INJECTION SYSTEM/ B27293

17

3974095

MET-GASK See Illustration FUEL INJECTION PUMP/ NA2848

18

3974972

GASKET See Illustration GOVERNOR/ B27177

19

6680829

GASKET See Illustration FUEL INJECTION PUMP/ NA2848 - governor housing

20

6680853

GASKET See Illustration WATER PUMP & THERMOSTAT/ NA2747 - water pump

21

6689331

GASKET See Illustration TURBOCHARGER/ NA2745 - oil supply tube

22

7000642

WASHER, SEALING COPPER See Illustration GOVERNOR/ B27176 - oil pipe

23

7000642

WASHER, SEALING COPPER See Illustration FUEL INJECTION SYSTEM/ B27293 - oil pipe - not in kit

24

6685498

GASKET See Illustration FUEL INJECTION SYSTEM/ B27293 - oil pipe - not in kit

Выбрано товаров: 24
