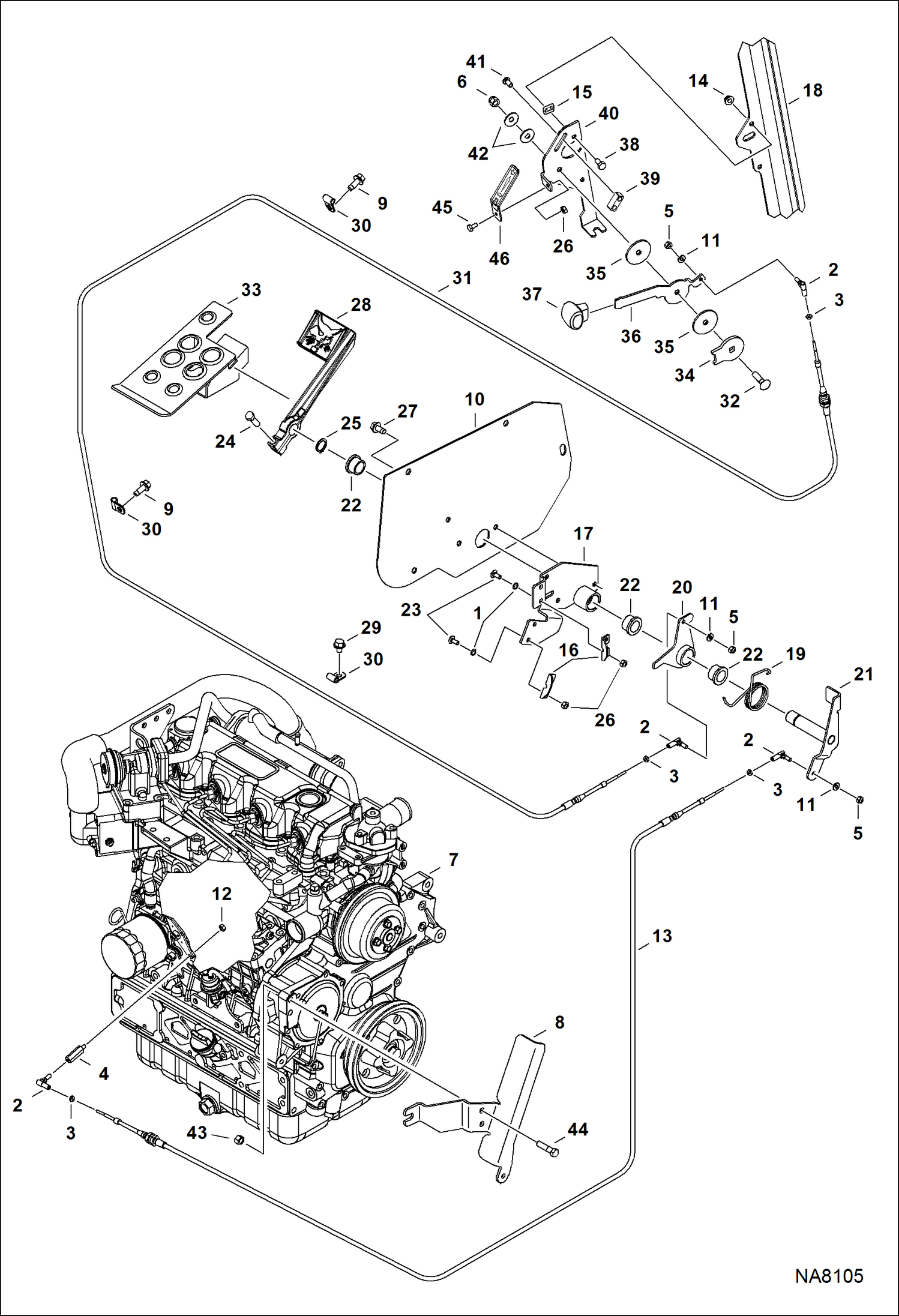

Запчасти Bobcat A-Series ENGINE SPEED CONTROL (4724 mm) (186) Hand Cable - (2692 mm) (106) Foot Cable POWER UNIT

1

6675212

RETAINER

2

6644965

BALL JOINT

3

14D10

NUT

4

7183048

SPACER

5

62D4

NUT

6

17C624

BOLT 5

7

ENGINE See Illustration ENGINE & GASKET KITS/ NA5149

8

7196287

COVER, BELT

9

84G3712

BOLT 5

10

7213394

PANEL, RH

11

25E11

WASHER

12

95D4

NUT

13

7213429

CABLE, THROTTLE foot cable - 2692 mm (106'')

14

55D5

NUT

15

774220

NUT

16

7213396

CLAMP, CABLE

17

7213407

BRACKET, THROTTLE

18

CAB, ASSY See Illustration OPERATOR CAB/ NA2470

19

7213411

SPRING, TORSION

20

7213412

LEVER

21

7213415

LEVER

22

7159624

BUSHING

23

10C410

BOLT

24

17C620

BOLT

25

6534668

SNAP RING

26

61D4

NUT 5

27

84G3716

SCREW 5

28

7164294

PEDAL, FOOT THROTTLE

29

31C612

BOLT

30

30H20

CLIP

31

7213435

CABLE, THROTTLE hand cable - 4724 mm (186'')

32

37C624

BOLT

33

7157725

PEDAL ASSY

34

7166269

WASHER

35

7159386

WASHER

36

7166172

HANDLE

37

7166173

HANDLE

38

17C510

BOLT

39

7166174

BLOCK

40

7166171

BRACKET

41

25G510

BOLT

42

6630038

WASHER

43

95D6

NUT

44

7131273

SCREW

45

17C408

BOLT

46

7169911

PLATE, DECAL
