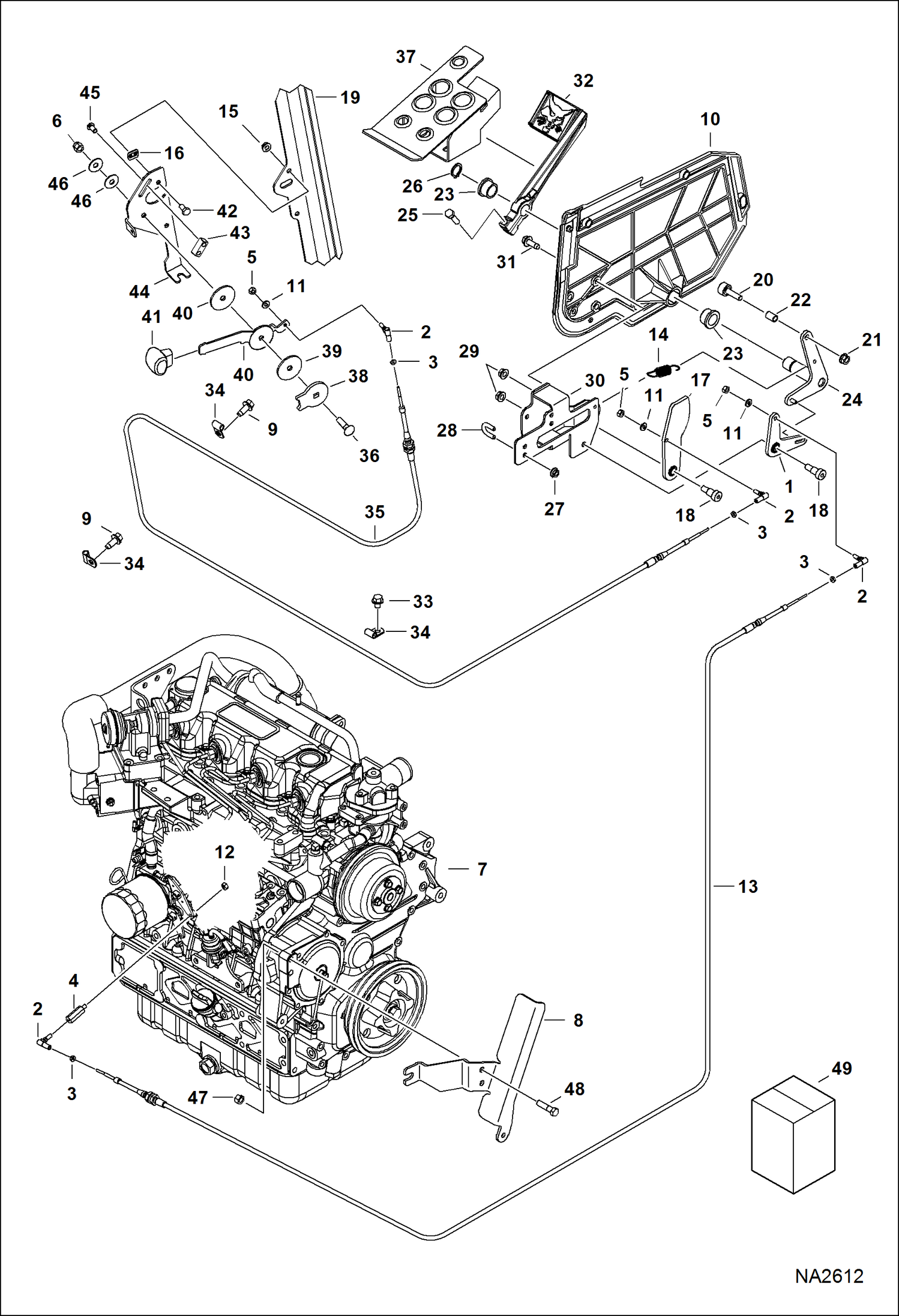

Запчасти Bobcat A-Series ENGINE SPEED CONTROL (4616 mm) (181.7) Hand Cable - (2515 mm) (99) Foot Cable POWER UNIT

1

LEVER See BTI426 - NLA - Was 7191528 - A

2

6644965

BALL JOINT

3

14D10

NUT

4

7183048

SPACER

5

62D4

NUT

6

17C624

BOLT 5

7

6692834

ENG, V3800DIT 92 HP EPA T3 / EU STG IIIA See Illustration ENGINE & GASKET KITS/ NA5149

8

7196287

COVER, BELT

9

84G3712

BOLT 5

10

7180032

PANEL, RH

11

25E11

WASHER

12

95D4

NUT

13

CABLE, THROTTLE See BTI426 - NLA - foot cable - 2515 mm (99'') - Was 7159994 - A

14

7188749

SPRING

15

55D5

NUT

16

774220

NUT

17

CAM, LEVER See BTI426 - NLA - Was 7176043 - A

18

38C810

BOLT

19

CAB, ASSY See Illustration OPERATOR CAB/ NA6016

20

6737692

BEARING

21

98D6

NUT

22

6737693

SPACER

23

7159624

BUSHING

24

LEVER See BTI426 - NLA - Was 7176039 - A

25

17C620

BOLT

26

6534668

SNAP RING

27

57D5

NUT

28

6592766

U-BOLT

29

57D6

NUT 5

30

MOUNT See BTI426 - NLA - Was 7176037 - A

31

84G3716

SCREW 5

32

7164294

PEDAL, FOOT THROTTLE

33

31C612

BOLT

34

30H20

CLIP

35

CABLE See BTI426 - NLA - hand cable - 4616 mm (181.7'') - Was 7166623 - A

36

37C624

BOLT

37

7157725

PEDAL ASSY

38

7166269

WASHER

39

7159386

WASHER

40

7166172

HANDLE

41

7166173

HANDLE black was orange

42

17C510

BOLT

43

7166174

BLOCK

44

7166171

BRACKET

45

25G510

BOLT

46

6630038

WASHER

47

95D6

NUT

48

7131273

SCREW SJC - Was 59CM1240 - B

49

KIT, THROTTLE FOOT See BTI426 - NLA - Was 7213423 - B
