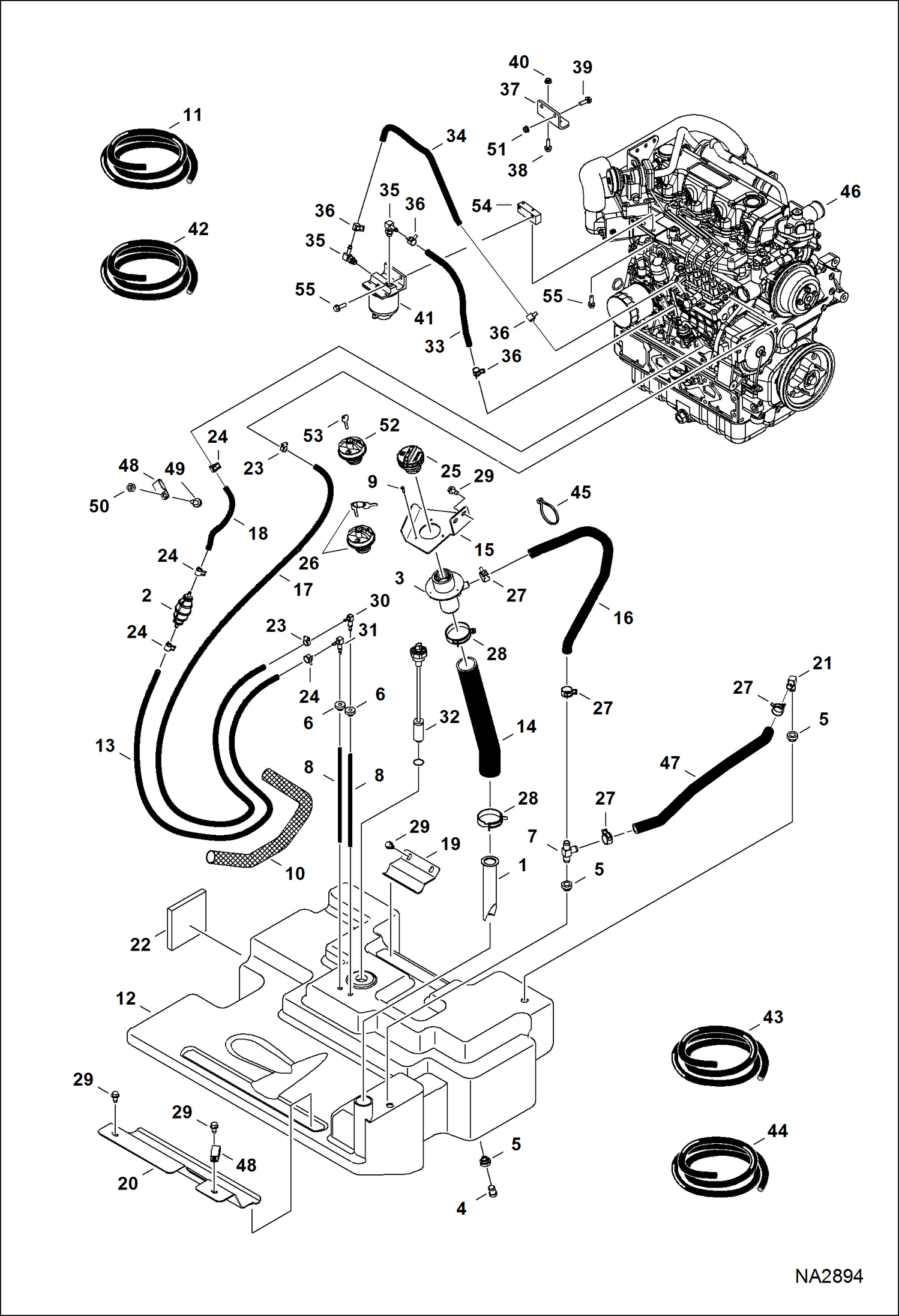

Запчасти Bobcat A-Series ENGINE & ATTACHING PARTS (Fuel System) (S/N A3P611001 - , A3P711001 - ) POWER UNIT

1

7120881

SCREEN, FILLER

2

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long

3

6701449

FILLER TUBE

4

7203382

PLUG, STEEL Was 6717404 - A

5

6717402

BUSHING 0.54'' ID

6

6735696

GROMMET

7

7203385

TEE Was 7163771 - B

8

6735249

HOSE, FUEL

9

7106279

BOLT

10

7178623

COVER, HOSE

11

6577822

HOSE bulk - sold per foot

12

7130652

TANK, FUEL

13

HOSE NLA - 889 mm (35'') long - Order Ref. 41

14

7163770

HOSE, FUEL

15

7163769

BRACKET, FUEL

16

HOSE NLA - 609,6 mm (24'') long - Order Ref. 42

17

HOSE NLA - 1231,9 mm (48.5'') long - Order Ref. 43

18

HOSE NLA - 203,2 mm (8'') long - Order Ref. 41

19

7163765

BRACKET, FUEL Use on wheel loaders only

20

BRACKET, FUEL NLA - 88,9 mm (3.5'') cutout - Was 7168928

20

7234561

BRACKET, FUEL 139,7 mm (5.5'') cutout

21

7203383

FITTING, ELBOW Was 6808798 - B

22

7170635

INSULATION, TANK FUEL

23

42HS04

CLAMP, HOSE

24

5HM13

CLAMP

25

7113340

CAP. DIESEL

26

7121223

CAP. DIESEL LOCKING

27

5HM24

CLAMP

28

5HM58

CLAMP

29

84G3712

BOLT 5

30

7101291

ELBOW 3 barb on outlet end

31

6598908

ELBOW

32

7179839

SENSOR FUEL W/gasket - Was 6680438 - A

33

HOSE NLA - 355,6 mm (14'') long - Order Ref. 11

34

HOSE NLA - 393,7 mm (15.5'') long - Order Ref. 11

35

6715183

ELBOW

36

5HM14

CLAMP

37

7153500

MOUNT, FILTER FUEL

38

35C620

BOLT 5

39

35C514

BOLT

40

89D6

NUT

41

6667353

FILTER ASSY

41

6667352

FILTER, FUEL W/SEPARATOR 12

41

6658180

PLUG, BLEED

42

6577821

HOSE bulk - sold per foot

43

6578172

HOSE bulk - sold per foot

44

6578169

HOSE bulk - sold per foot - 0.19'' ID

45

6624289

STRAP, TIE

46

6692834

ENG, V3800DIT 92 HP EPA T3 / EU STG IIIA See Illustration ENGINE & GASKET KITS/ NA5149

47

HOSE NLA - 609,6 mm (24'') long - Order Ref. 42

48

31H31

CLIP

49

59CM816

BOLT

50

43DM8

NUT

51

89D5

NUT

52

7023550

CAP, DIESEL LOCKING

53

6693241

KEY 10 ignition - single key W/O ring

54

6731152

MOUNT

55

45C516

SCREW
