Запчасти Bobcat A-Series ENGINE & ATTACHING PARTS (Air Cleaner & Muffler) (S/N A3P611542 & Above, A3P711566 & Above) POWER UNIT

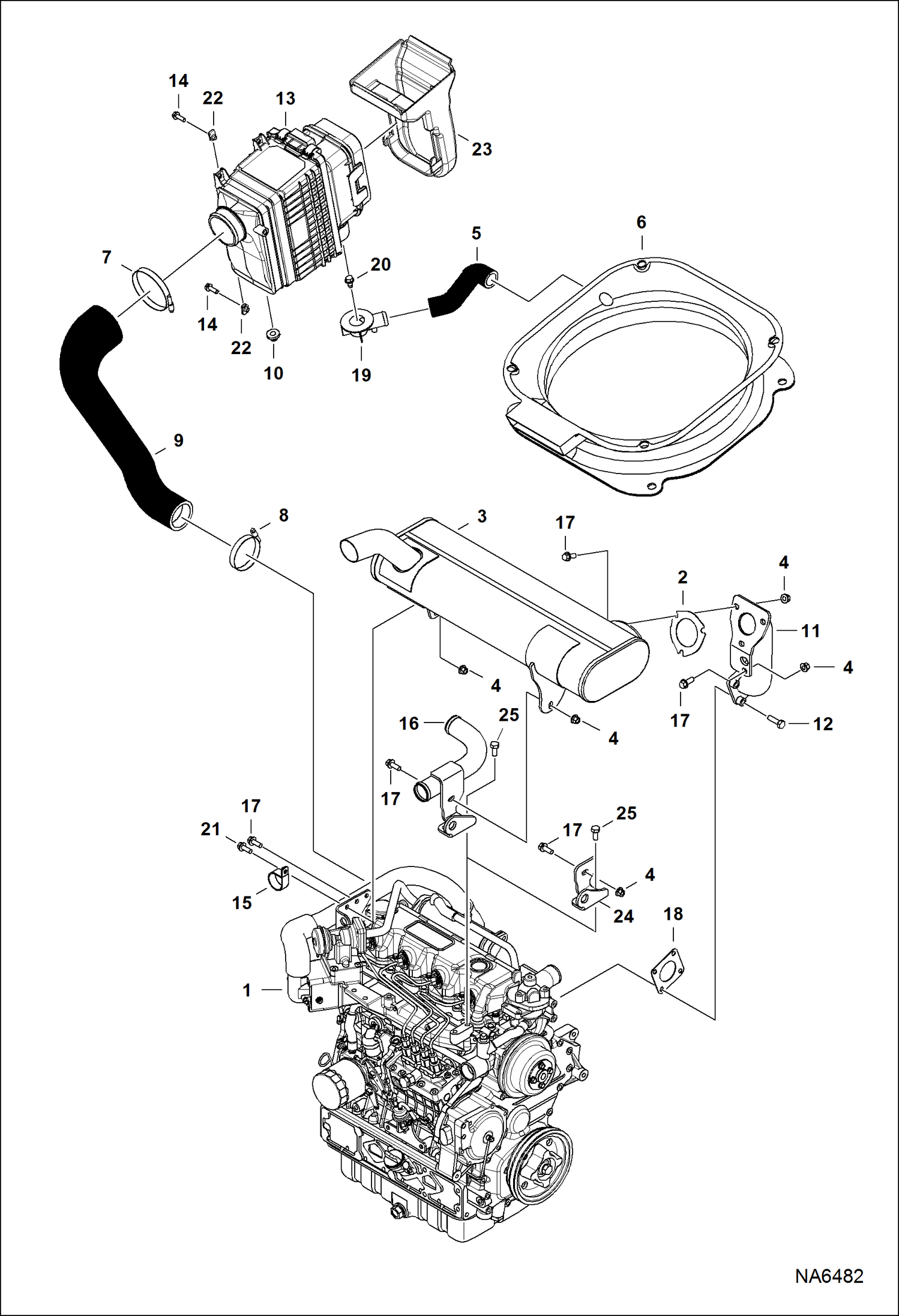

Схема запчастей Bobcat A-Series - ENGINE & ATTACHING PARTS (Air Cleaner & Muffler) (S/N A3P611542 & Above, A3P711566 & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

ENGINE See Illustration ENGINE & GASKET KITS/ NA5149

2

6732032

GASKET

3

7175098

MUFFLER, EXHAUST Was 7141744 - A

4

89D6

NUT

5

7154198

HOSE, AIR FORMED

6

7135715

SHROUD, FAN

7

42HC425

CLAMP, HOSE

8

42HC325

CLAMP

9

7214591

HOSE, AIR FORMED

10

7178214

GROMMET

11

7141726

TUBE, EXHAUST

12

5CM1035

BOLT

13

7197235

FILTER, AIR CLEANER ASSY See Illustration AIR CLEANER/ NA6481

14

29CM830

CAPSCREW Was 29CM825 - B

15

30H82

CLAMP INSULATED

16

7154005

TUBE, COOLING

17

35C616

BOLT 5

18

7102747

GASKET

19

7178213

CONNECTOR, FILTER See Illustration AIR CLEANER/ NA6481

20

84G3712

BOLT 5

21

35C620

BOLT 5

22

NUT, J NLA

Выбрано товаров: 22
