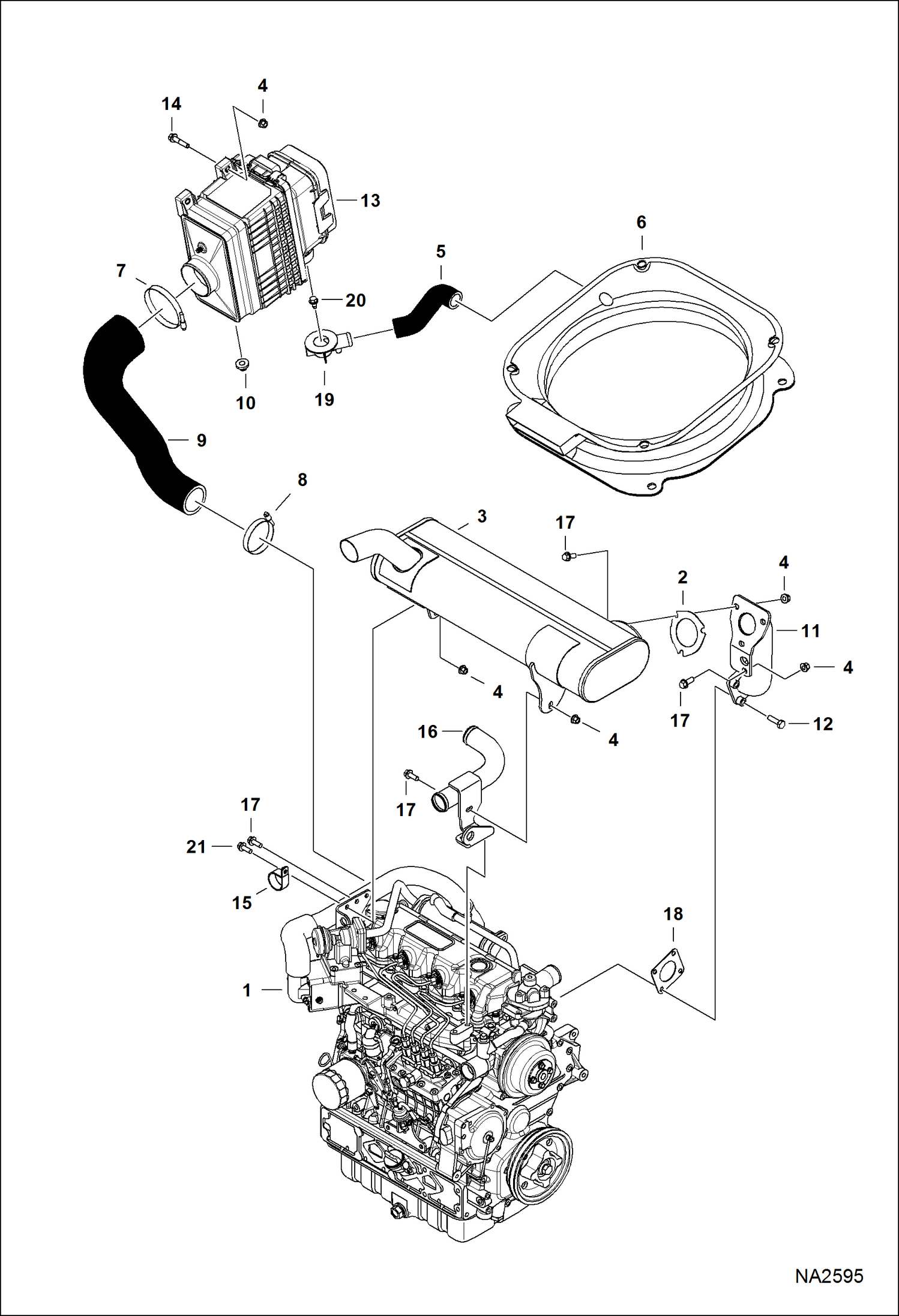

Запчасти Bobcat A-Series ENGINE & ATTACHING PARTS (Air Cleaner & Muffler) (S/N A3P611001 - 11541, A3P711001 - 11565) POWER UNIT

1

6692834

ENG, V3800DIT 92 HP EPA T3 / EU STG IIIA See Illustration ENGINE & GASKET KITS/ NA5149

2

6732032

GASKET

3

7175098

MUFFLER, EXHAUST

4

89D6

NUT

5

7154198

HOSE, AIR FORMED

6

7135715

SHROUD, FAN

7

42HC425

CLAMP, HOSE

8

42HC325

CLAMP

9

7154197

HOSE, AIR INTAKE

10

7178214

GROMMET

11

7141726

TUBE, EXHAUST

12

5CM1035

BOLT

13

7141342

FILTER, AIR CLEANER ASSY See Illustration AIR CLEANER/ NA1596

14

35C628

BOLT

15

30H82

CLAMP INSULATED

16

7154005

TUBE, COOLING

17

35C616

BOLT 5

18

7102747

GASKET

19

7178213

CONNECTOR, FILTER See Illustration AIR CLEANER/ NA1596

20

84G3712

BOLT 5

21

35C620

BOLT 5
