Запчасти Bobcat A-Series COOLING SYSTEM (S/N A3P612376 & Above, A3P712403 & Above) POWER UNIT

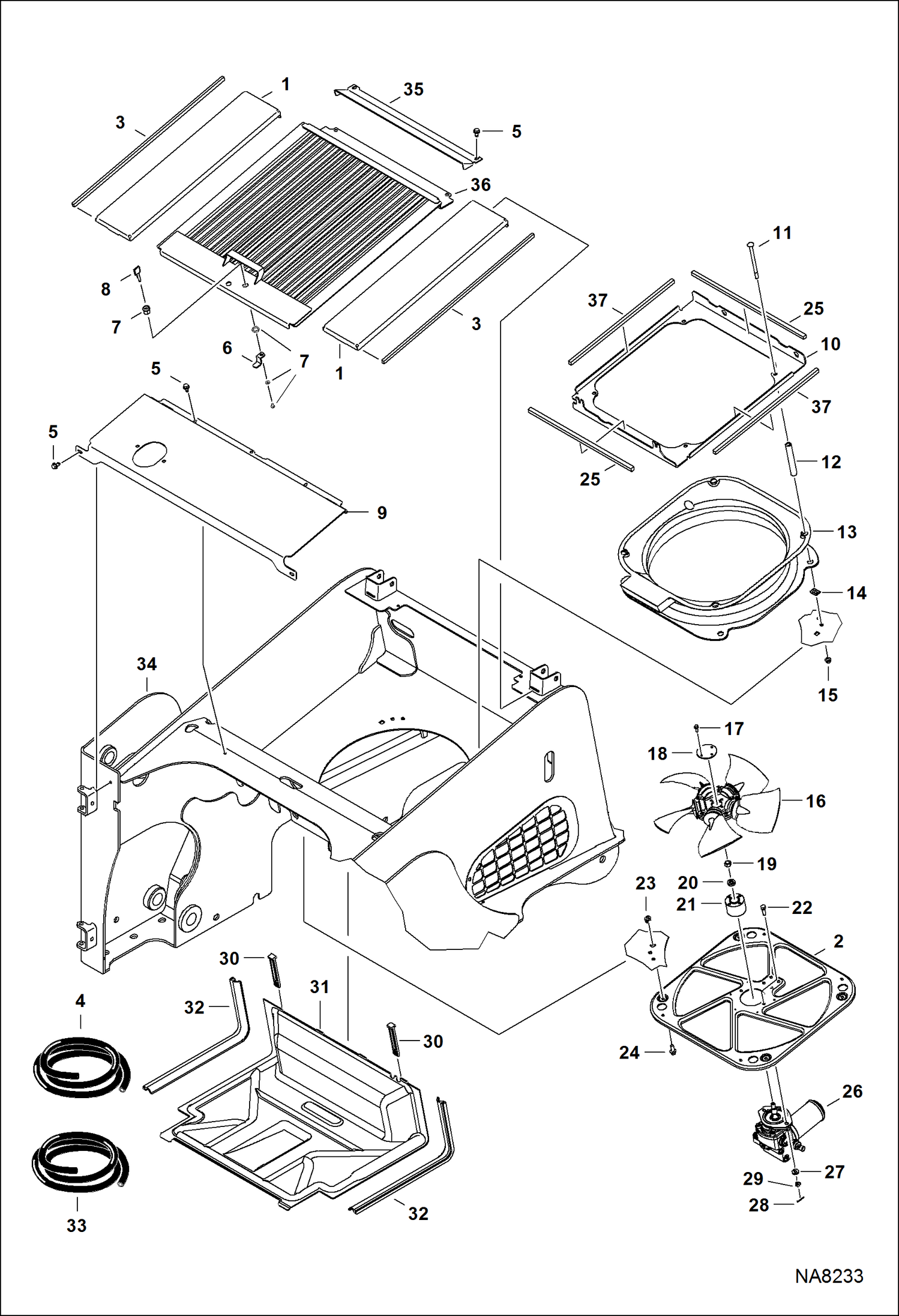

Схема запчастей Bobcat A-Series - COOLING SYSTEM (S/N A3P612376 & Above, A3P712403 & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

7153363

COVER, HOOD

2

7136376

MOUNT, MOTOR ASSY

3

SEAL NLA - 848,3 mm (33.39'') - Order Ref. 4

4

6511855

SEAL bulk - sold per foot

5

84G3712

BOLT 5

6

7149056

LATCH, CAM

7

6670726

CYLINDER, LOCK

8

6693241

KEY 10 ignition - single key W/O ring

9

7161417

COVER, HOOD REAR

10

MOUNT, EXCHANGER OIL See Illustration COOLING SYSTEM/ NA2600

10

MOUNT, EXCHANGER OIL See Illustration RADIATOR/COOLER ASSEMBLY/ NA6372

11

10C696

BOLT

12

7136113

BUSHING

13

SHROUD, FAN See Illustration ENGINE & ATTACHING PARTS/ NA2595

14

6684033

NUT

15

97D6

NUT 10

16

7170674

FAN, ENG COOLANT

17

49C412

BOLT

18

7125948

PLATE

19

96D8

NUT

20

6701097

WASHER

21

7130834

HUB, FAN

22

7147826

BOLT, CROSS DRILLED

23

6678785

NUT

24

49C616

BOLT

25

SEAL, FOAM

26

MOTOR, HYD COOLING FAN See Illustration COOLING FAN MOTOR/ MS2514

27

6557831

WASHER

28

1F316

PIN

29

3D6

NUT

30

7141906

STRAP, RUBBER

31

7135745

DUCT, AIR

32

SEAL NLA - 673,1 mm (26.5'') - Order Ref. 33

33

7169778

SEAL, BULK/FT bulk - sold per foot

34

MAIN FRAME

35

7221437

SHIELD, HOOD

36

7153365

SCREEN, EXCHANGER

37

7221433

SEAL, FOAM 529,1 mm (20.83'') long

Выбрано товаров: 38
