Запчасти Bobcat A-Series COOLING SYSTEM (S/N A3P611001 - 12375, A3P711001 - 12402) POWER UNIT

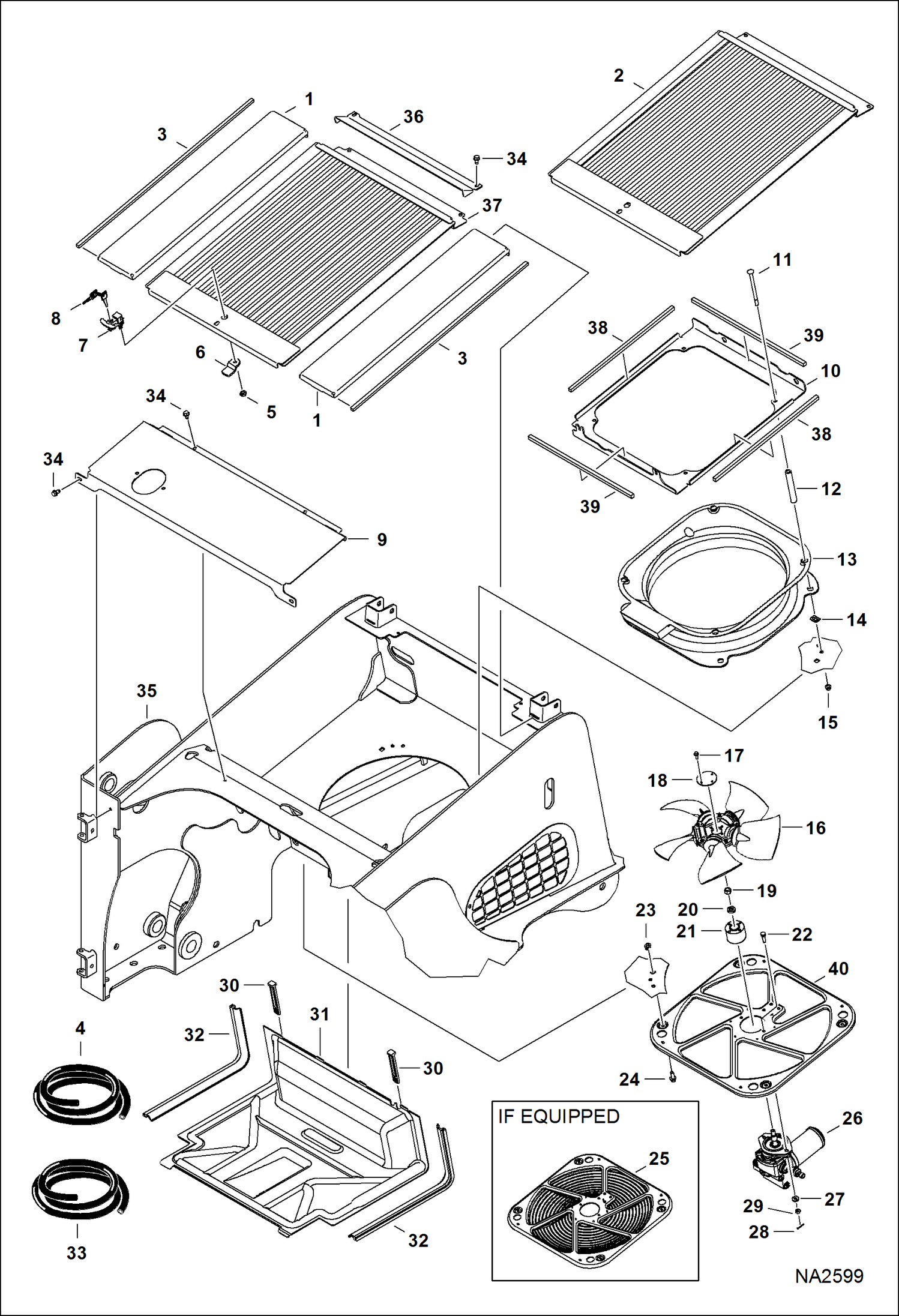

Схема запчастей Bobcat A-Series - COOLING SYSTEM (S/N A3P611001 - 12375, A3P711001 - 12402) POWER UNIT

Артикул

Название

Примечание

Количество

1

7161424

COVER, HOOD

2

SCREEN, RADIATOR Order Ref. 37 - Was 7161423 - B

3

SEAL NLA - 729 mm (28.7'') long - Order Ref. 4

4

6511855

SEAL bulk - sold per foot

5

26DM12

NUT

6

7002737

LATCH, PAWL

7

7002736

LATCH, DRAW

8

6693241

KEY 10 ignition - single key W/O ring

9

7161417

COVER, HOOD REAR

10

7142223

MOUNT, EXCHANGER OIL See Illustration COOLING SYSTEM/ NA2600

10

MOUNT, EXCHANGER OIL See Illustration RADIATOR/COOLER ASSEMBLY/ NA6372

11

10C696

BOLT

12

7136113

BUSHING

13

7135715

SHROUD, FAN See Illustration ENGINE & ATTACHING PARTS/ NA2595

14

6684033

NUT

15

97D6

NUT 10

16

7170674

FAN, ENG COOLANT

17

49C412

BOLT

18

7125948

PLATE

19

96D8

NUT

20

6701097

WASHER

21

7130834

HUB, FAN

22

7147826

BOLT, CROSS DRILLED

23

6678785

NUT

24

49C616

BOLT

25

MOUNT, MOTOR ASSY NLA - W/grill - Order Ref. 40 - Was 7136375 - A

26

7010793

MOTOR, FAN See Illustration COOLING FAN MOTOR/ MS2514

27

6557831

WASHER

28

1F316

PIN

29

3D6

NUT

30

7141906

STRAP, RUBBER

31

7135745

DUCT, AIR

32

SEAL NLA - 673,1 mm (26.5'') long - Order Ref. 33

33

7169778

SEAL, BULK/FT bulk - sold per foot

34

84G3712

BOLT 5

35

MAIN FRAME See Illustration MAIN FRAME/ NA2878

36

7221437

SHIELD, HOOD

37

7161423

SCREEN, RADIATOR

38

7221433

SEAL, FOAM 529,1 mm (20.83'') long

39

SEAL, FOAM NLA - 523,2 mm (20.6'') long - Order Ref. 38 - Was 7221435 - D

40

7136376

MOUNT, MOTOR ASSY

Выбрано товаров: 41
