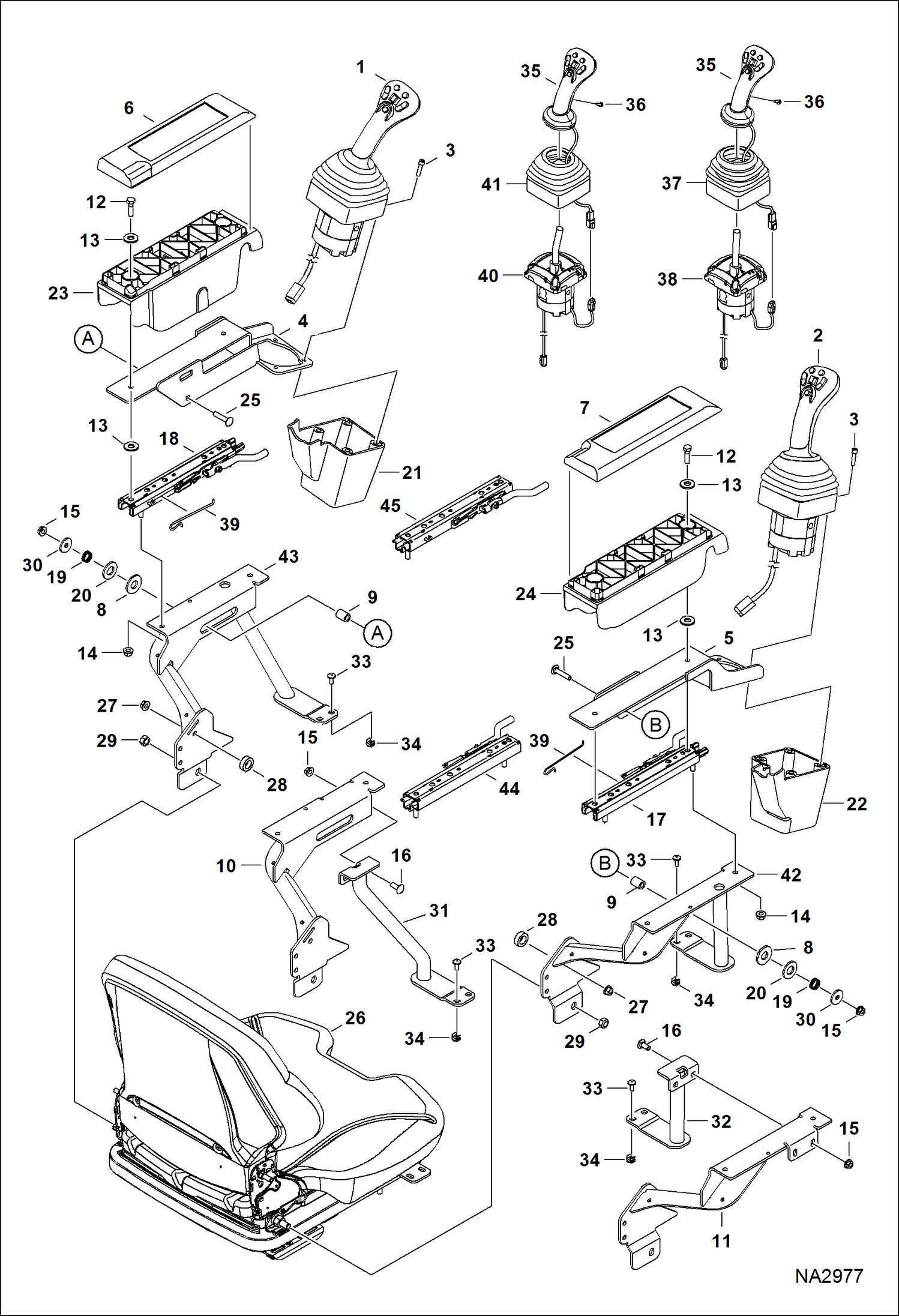

Запчасти Bobcat A-Series CONTROLS ELECTRICAL (Armrest Assembly) ELECTRICAL SYSTEM

1

7003628

JOYSTICK, LH 11 degree travel - 3 pleat boot - Ref. 35 - 38

1

7023150

JOYSTICK, LH ASSY 17 degree travel - 4 pleat boot - Ref. 35, 36, 40 & 41

2

7003629

JOYSTICK, RH 11 degree travel - 3 pleat boot - Ref. 35 - 38

2

7023149

JOYSTICK, RH ASSY 17 degree travel - 4 pleat boot - Ref. 35, 36, 40 & 41

3

29G416

BOLT

4

7197922

MOUNT, CONTROLS LH

5

7197921

MOUNT, CONTROLS RH

6

7157704

COVER ARMREST LH

7

7157671

COVER ARMREST, RH

8

7165634

WASHER, PLASTIC

9

7197916

SPACER

10

MOUNT, SEAT LH NLA - Order Ref. 43 & (2) each of Ref. 33 & 34 - Was 7197919 - A

11

MOUNT, SEAT RH NLA - Order Ref. 42 & (2) each of Ref. 33 & 34 - Was 7197917 - A

12

1CM830

BOLT

13

25E18

WASHER

14

51DM8

NUT

15

97D5

NUT

16

10C512

BOLT

17

SLIDE NLA - W/torsion spring - Order 7200887 slide & Ref. 39 - Was 7177169 - A

17

7200887

SLIDE W/O torsion spring - Also Order Ref. 39

18

SLIDE NLA - W/torsion spring - Order 7200888 slide & Ref. 40 - Was 7177170 - A

18

7200888

SLIDE W/O torsion spring - Also Order Ref. 39

19

7197915

SPRING, COMPRESSION

20

6701174

WASHER

21

7146265

COVER, LH SJC

22

7146264

COVER, RH SJC

23

7177197

SHELL, ARMREST LH

24

7177196

SHELL, ARMREST RH

25

10C524

BOLT

26

SEAT See Illustration SEAT & SEAT BELT/ NA1126 See Illustration SEAT & SEAT BELT/ NA1126 - std.

26

SEAT See Illustration SEAT KIT - 80 mm/ NA2042 See Illustration SEAT KIT - 80 mm/ NA2042 See Illustration SEAT KIT - 80 mm/ NA2042 See Illustration SEAT KIT - 80 mm/ NA2042 See Illustration SEAT KIT -

26

SEAT See Illustration SEAT KIT - 80 mm/ NA2427 See Illustration SEAT KIT - 80 mm/ NA2427 See Illustration SEAT KIT - 80 mm/ NA2427 See Illustration SEAT KIT - 80 mm/ NA2427 See Illustration SEAT KIT -

27

51DM8

NUT

28

7162176

SPACER

29

86D7

NUT

30

25E25

WASHER 10

31

SUPPORT, TUBE LH NLA - Order Ref. 43 & (2) each of Ref. 33 & 34 - Was 7168849 - A

32

SUPPORT, TUBE RH NLA - Order Ref. 42 & (2) each of Ref. 33 & 34 - Was 7168848 - A

33

6803202

SCREW

34

7170765

NUT

35

6689922

HANDLE LH

35

6689923

HANDLE RH

36

6689927

BOLT

37

7003698

BOOT, RUBBER 3 pleat boot

38

6697938

BASE, JOYSTICK LH

38

6697939

BASE, JOYSTICK RH

39

7199853

SPRING, TORSION

40

7023152

BASE, JOYSTICK LH LH

40

7023151

BASE, JOYSTICK RH RH

41

7023154

BOOT, RUBBER LH LH - 4 pleat boot

41

7023153

BOOT, RUBBER RH RH - 4 pleat boot

42

7229391

ARM REST, RH Was 7220855 - A

43

7229392

ARM REST, LH Was 7220856 - A
