Запчасти Bobcat A-Series ENGINE ELECTRICAL CIRCUITRY (Frame Harness & Filter Sensors) (S/N A3P612363 & Above, A3P712203 & Above) ELECTRICAL SYSTEM

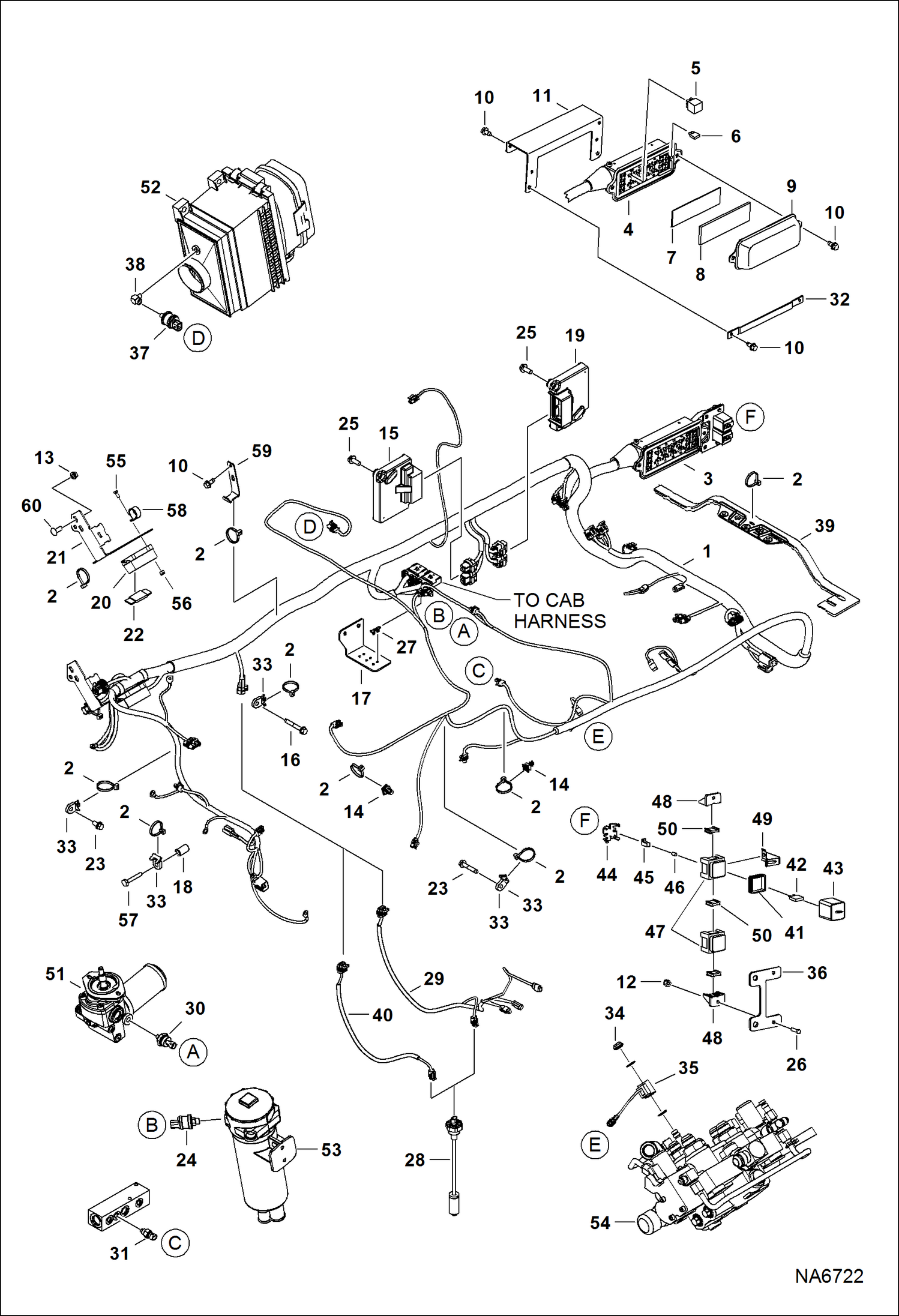

Схема запчастей Bobcat A-Series - ENGINE ELECTRICAL CIRCUITRY (Frame Harness & Filter Sensors) (S/N A3P612363 & Above, A3P712203 & Above) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

7210768

HARNESS, MFR See Illustration ENGINE ELECTRICAL CIRCUITRY/ NA2918 - manual controls

1

7210769

HARNESS, MFR See Illustration ENGINE ELECTRICAL CIRCUITRY/ NA2918 - AHC, ACS & SJC

2

6624289

STRAP, TIE

3

7155390

HOUSING, FUSE RELAY

4

6673200

FUSE BLOCK

5

6679820

RELAY

6

6663289

FUSE, 5A

6

6654806

FUSE, 15A

6

6707621

FUSE, 15A MINI 5

6

6625575

FUSE, 20A

6

6702444

FUSE 25A 5

6

6707623

FUSE, 25A MINI 5

6

6718034

FUSE, 30A

7

7167945

DECAL, FUSE RELAY

8

6731275

INSULATION

9

6716621

COVER

10

84G3712

BOLT 5

11

7196673

BRACKET

12

50D12

NUT

13

57D6

NUT 5

14

7015668

MOUNT, STRAP TIE Was 6678666 - B

15

6691288

CONTROLLER, AUX CONTROL

16

84G3740

BOLT W/Ref. 15 & 59

17

7212967

BRACKET, HARNESS

18

7101893

SPACER

19

6693353

CONTROLLER, GATEWAY

20

6675154

HOLDER high amp fuse

21

7177235

BRACKET, HARNESS mega fuse

22

6675155

FUSE, 100A mega

23

35C612

BOLT

24

7002980

SWITCH, PRESSURE

25

7168429

BOLT, CONTROLLER

26

45G1212

BOLT

27

7023598

CLIP, NYLON

28

7179839

SENSOR FUEL W/gasket - Was 6680438 - A

28

6717579

GASKET

29

7184255

HARNESS, FUEL dlx cab

30

6674316

SWITCH, PRESS OIL HYD 3-pin molded connector

31

6727869

SENDER,HYD TEMP

32

7168173

BRACKET, COVER

33

6679034

MOUNT

34

6691022

NUT

35

6675559

COIL

36

7166445

BRACKET, BLOCK DILL

37

6665371

SWITCH

38

7191672

ELBOW

39

7171188

BRACKET plastic

40

7149219

HARNESS, FUEL std cab

41

6671528

SEAL green square

42

6707620

FUSE, 10A MINI 5

42

6707621

FUSE, 15A MINI 5

42

6707623

FUSE, 25A MINI 5

42

6674099

BREAKER, 25A

43

6665358

COVER , FUSE

44

6665357

LOCK yellow

45

PIN NLA - female - Order 6668719 pin for 16 guage wire - Order 6668720 pin for 14 guage wire

46

6650107

SEAL

47

6665356

BLOCK fuse - W/Ref. 41

48

6665909

MOUNT

49

6708437

CLIP

50

6665411

WEDGE red

51

MOTOR, HYD COOLING FAN See Illustration COOLING FAN MOTOR/ MS2514

52

FILTER, AIR CLEANER ASSY See Illustration AIR CLEANER/ NA1596

53

FILTER, HYD ASSY

54

VALVE, CONTROL - manual controls

54

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217 - AHC, ACS & SJC

55

25G410

CAPSCREW

56

59D4

NUT 5

57

7110310

SCREW

58

30H50

CLIP

59

7161098

BRACKET

60

10C616

BOLT 10

Выбрано товаров: 72
