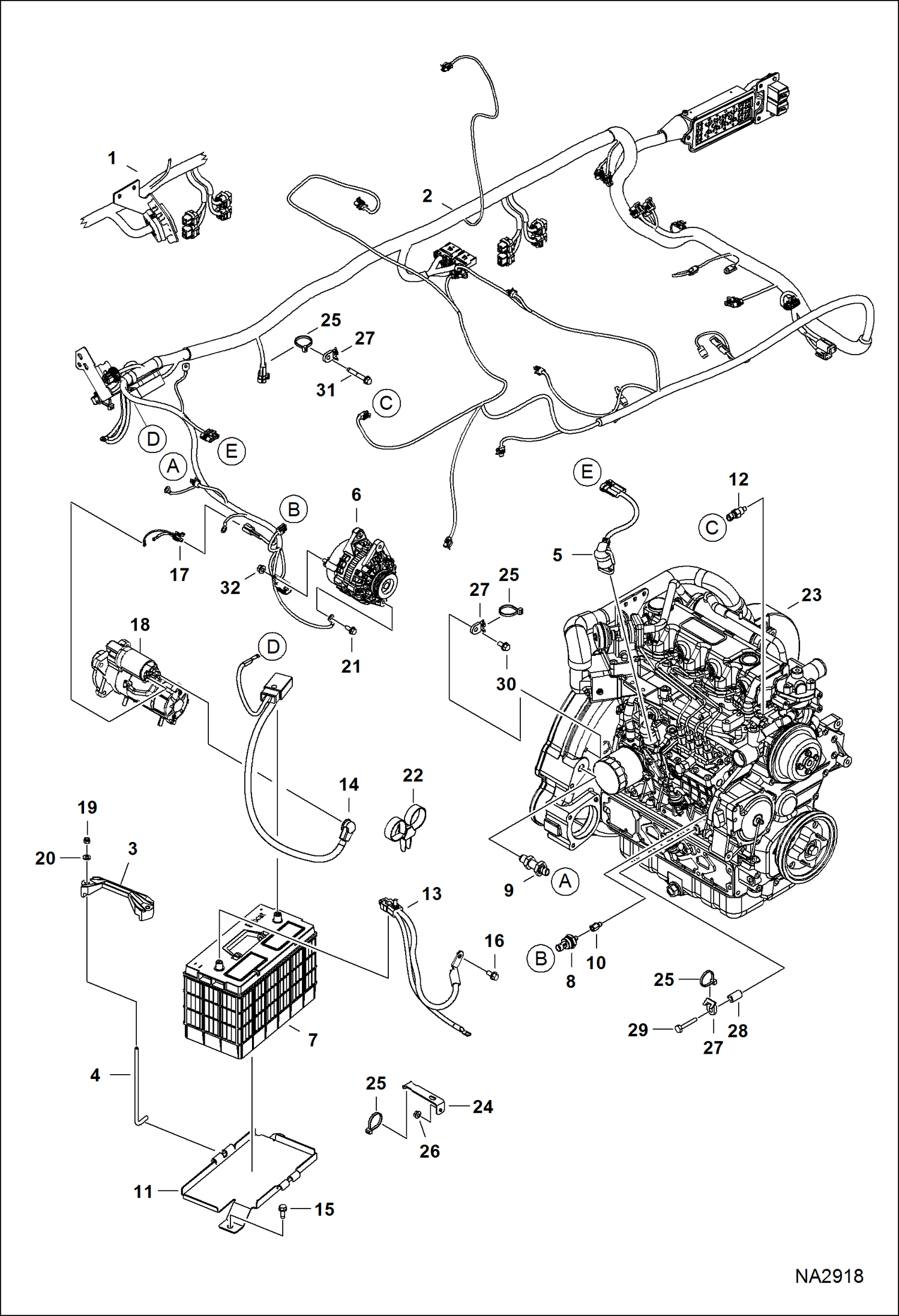

Запчасти Bobcat A-Series ENGINE ELECTRICAL CIRCUITRY (Engine Sensors, Battery, Alt & Starter) ELECTRICAL SYSTEM

1

7196824

HARNESS, MFR See Illustration ENGINE ELECTRICAL CIRCUITRY/ NA2917

2

HARNESS, MFR See Illustration ENGINE ELECTRICAL CIRCUITRY/ NA6722

3

6569203

CLAMP

4

6576280

BOLT

5

6689034

SOLENOID, SHUTOFF FUEL See Illustration GOVERNOR/ B27176

6

6681857

ALTERNATOR See Illustration ALTERNATOR/ B22386

7

6665427

BATTERY, DRY 950 AMP

8

6697920

SENSOR, PRESS OIL ENG

9

6693921

SENSOR, RPM

10

7102451

FITTING

11

7159352

PAN, BATTERY

12

6718414

SENDER, TEMP ENG

13

7170798

CABLE, NEGATIVE

14

7162967

CABLE, POSITIVE

15

84G3716

SCREW 5

16

35C612

BOLT

17

6733370

HARNESS

18

STARTER See Illustration STARTER/ B16488R

19

59D5

NUT 5

20

25E15

WASHER

21

45C620

BOLT

22

6678668

STRAP, DUAL TIE

23

6692834

ENG, V3800DIT 92 HP EPA T3 / EU STG IIIA See Illustration ENGINE & GASKET KITS/ NA5149

24

7120084

BRACKET

25

6624289

STRAP, TIE

26

51DM8

NUT

27

6679034

MOUNT

28

7101893

SPACER

29

7110310

SCREW

30

35C612

BOLT

31

29CM820

SCREW

32

43DM8

NUT
