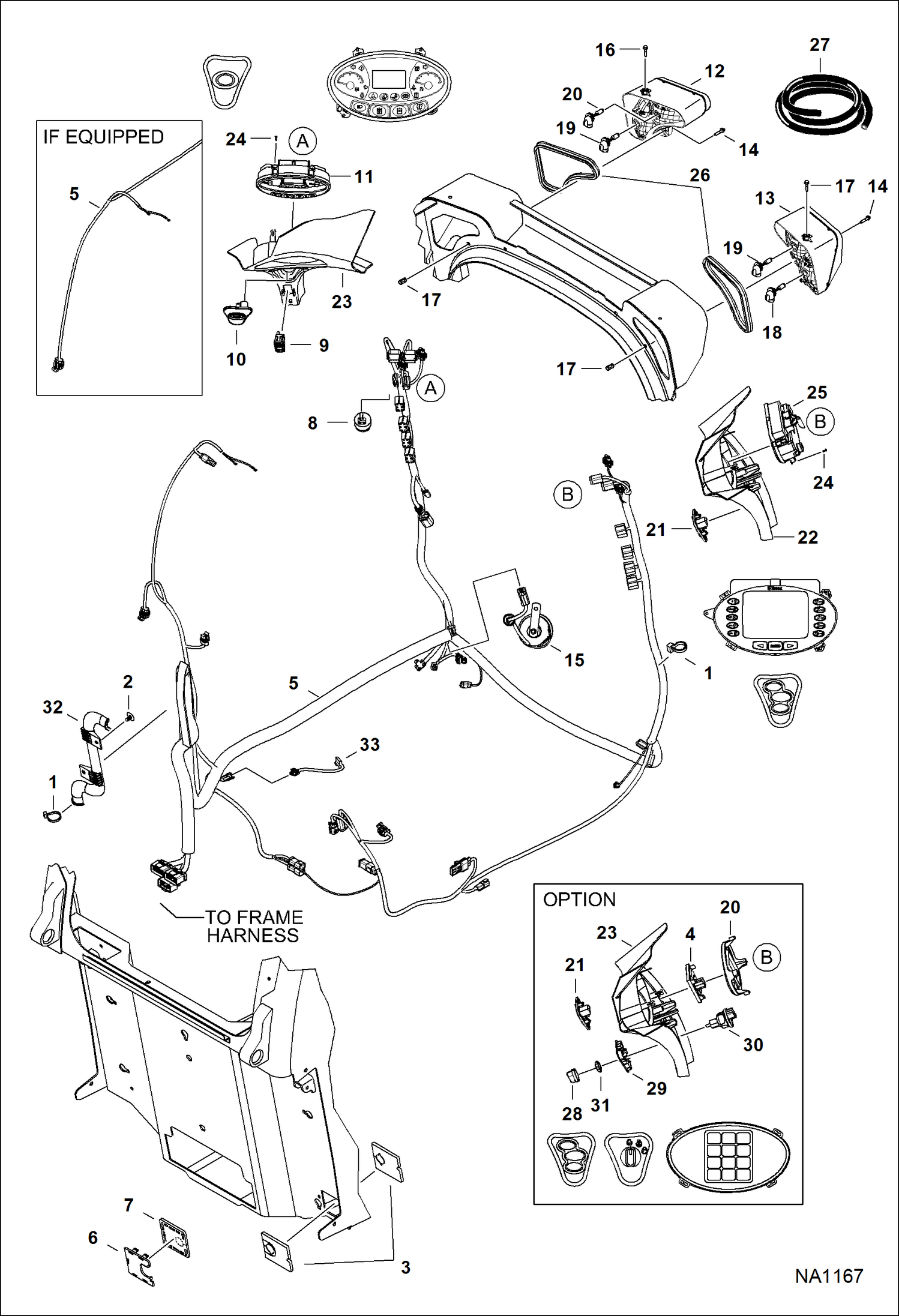

Запчасти Bobcat A-Series CAB ELECTRICAL CIRCUITRY (Deluxe) ELECTRICAL SYSTEM

1

6624289

STRAP, TIE

2

6674895

RETAINER

3

7185150

PLUG, HARNESS CAB replaces both Ref. 7 & 8

4

6693712

KEYPAD, PANEL

5

7196753

HARNESS, CAB DLX one connector to main frame harness

5

7231782

HARNESS, CAB DLX three connectors to main frame harness - Was 7210556 - A

6

7164073

GUIDE

7

PLUG, HARNESS CAB DLX NLA - Order Ref. 3

8

FOAM NLA - Order Ref. 3

9

6692489

ALARM, BUZZER

10

6690948

SWITCH PARK BRAKE

11

7003032

SWITCH, OVERRIDE TRACTION

12

7022670

DISPLAY Was 7003034

13

7138041

LIGHT, LH ASSY

14

7138040

LIGHT, RH ASSY

15

31C420

BOLT 5

16

HORN, ALARM See Illustration HORN KIT/ NA2212 selectable joystick controls

17

35C410

BOLT 5

18

7154910

INSERT, THREADED

19

6675336

LIGHT, BULB 50W

20

7008814

BULB, 5W

21

7003027

INSERT, KEYPAD - if loader is equipped W/SJC & text decals, Also Order Ref. 23 & 7168114 decal - if loader is equipped W/SJC & no text decals, Also Order Ref. 23 & 7177707 decal

22

SWITCH, IGN NLA - Was 7003033 - A

23

7155791

PANEL, RH

24

7155792

PANEL, LH

25

7179008

SCREW, PLASTIC

26

6693413

DISPLAY, DLX

27

SEAL NLA - 609,6 mm (24'') long - Order Ref. 28

28

7202956

SEAL, BULK bulk - sold per foot

29

7023588

KNOB

30

7163589

INSERT, SWITCH

31

7023022

SWITCH ROTARY W/Ref. 32

32

7009081

NUT
