Запчасти Bobcat A-Series COOLING SYSTEM POWER UNIT

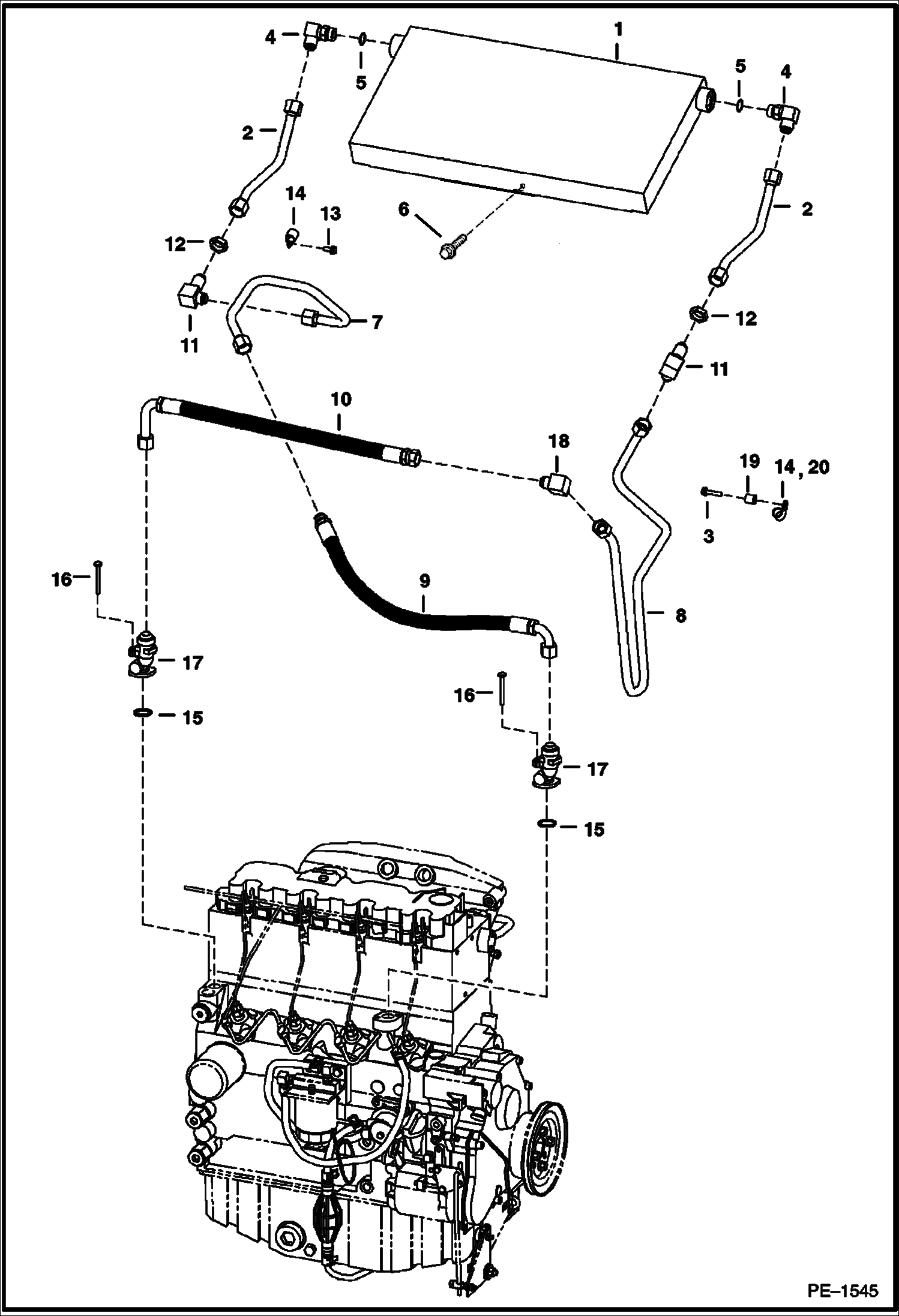

Схема запчастей Bobcat A-Series - COOLING SYSTEM POWER UNIT

Артикул

Название

Примечание

Количество

1

6710791

COOLER oil

2

6730860

TUBELINE

3

84G3720

BOLT

4

ELBOW NLA - W/Ref. 5 - tapered boss face - Was 17KV00008B - A

4

97K12

O'RING flared end

4

17KB1212

FITTING, HYD ELBOW W/Ref. 5 - flat boss face

5

99K12

O RING tapered boss face

5

79K12

O RING 10 flat boss face

6

35C612

BOLT

7

6730845

TUBELINE

8

6733442

TUBELINE Was 6732261 - A

9

6712143

HOSE

10

6712144

HOSE, HYD ASSY

11

ELBOW NLA - Was 88FN00008B - A

11

97K12

O'RING flared end

11

88F8

FITTING

12

86F8

NUT 5

13

84G3712

BOLT 5

14

30H42

CLAMP

15

6666712

O-RING

16

6666696

BOLT

17

6666762

ADAPTER

18

ELBOW NLA - Was 77FN00008B - A

18

97K12

O'RING flared end

18

77F8

ELBOW

19

6810274

SPACER

20

30H44

CLAMP

Выбрано товаров: 27
