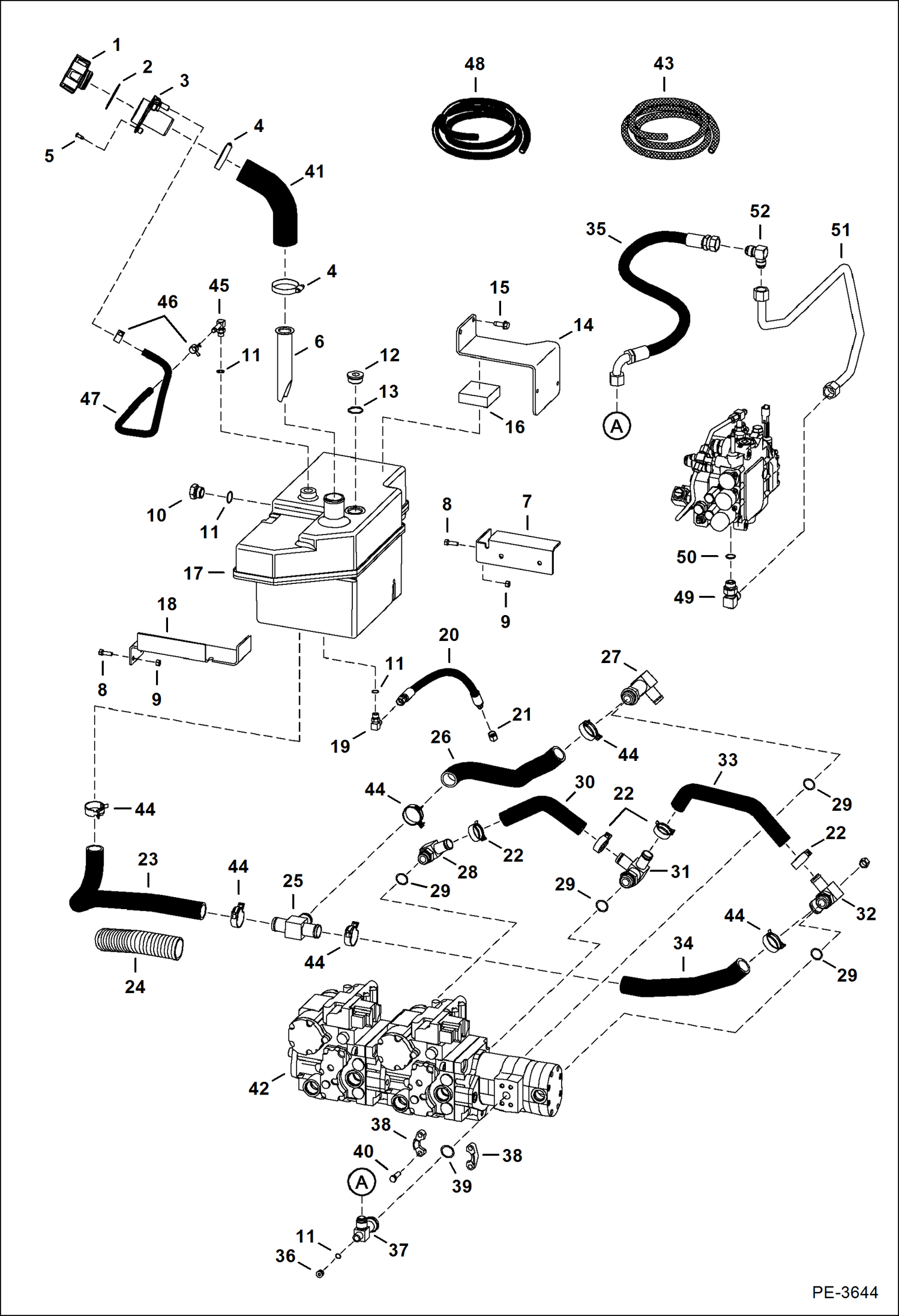

Запчасти Bobcat A-Series HYDROSTATIC CIRCUITRY (W/Tank) (S/N 521111518 & Above, 521211001 & Above) HYDROSTATIC SYSTEM

1

6727475

CAP, OIL HYD breather & fill - Also order Ref. 2

2

6700631

GASKET

3

6727354

INLET

4

42HL250

CLAMP

5

6706517

SCREW self tapping

6

7120881

SCREEN, FILLER Was 6569219 - A

7

6718851

BRACKET front

8

35C512

BOLT

9

83D5

NUT 5

10

6665915

GAUGE sight - W/Ref. 11

10

6734563

WASHER KIT

10

6734561

WASHER

10

25K30118

O RING 10

11

99K6

O RING tapered boss face

11

95K6

O'RING tapered boss face

11

79K6

O RING 10 flat boss face

12

47K10

PLUG W/Ref. 13

13

79K16

O RING 10

14

6718726

MOUNT BPV

15

84G3716

SCREW 5

16

6578278

PAD

17

6731209

TANK hydraulic oil

18

6718850

BRACKET rear

19

17KB0606

FITTING W/Ref. 11 - Was 17KV00005B - A

19

97K6

O RING flared end

20

7106212

HOSE Was 6537040 - A

21

36K5

CAP

22

5HM35

HOSECLAMP

23

6732502

HOSE

24

SHIELD NLA - 10'' (254mm) long - Order Ref. 43

25

6727064

TEE

26

6727426

HOSE

27

6731181

TEE

28

6727182

ELBOW W/Ref. 29

29

75K16

O RING 10

30

6729478

HOSE

31

6726992

TEE W/Ref. 29

32

6727069

TEE W/Ref. 29

32

6733809

TEE W/Ref. 29

33

6729477

HOSE

34

6729476

HOSE

35

6736649

HOSE, HYD ASSY Was 6729160 - A

36

90KV5

PLUG W/Ref. 11 - (95K-6 o-ring) - tapered boss face

36

47K5

PLUG W/Ref. 11 - flat boss face - hex socket head

36

24K5

PLUG W/Ref. 11 - flat boss face - hex head

37

7103953

TEE 4-bolt flange - Was 6717662 - A

37

97K12

O'RING flared end

38

19J12

CLAMP

39

55K214

O-RING

40

17C620

BOLT

41

6731638

HOSE

42

PUMP

43

6705749

SHIELD bulk - sold per foot

44

5HM42

HOSECLAMP

45

6727313

ELBOW W/Ref. 11 - flat boss face

46

5HM15

CLAMP

47

HOSE NLA - 23'' (584mm) long - Order Ref. 48

48

6586251

HOSE bulk - sold per foot

49

17KB1212

FITTING, HYD ELBOW W/Ref. 50

50

79K12

O RING 10

51

6735295

TUBELINE

52

77F8

ELBOW
