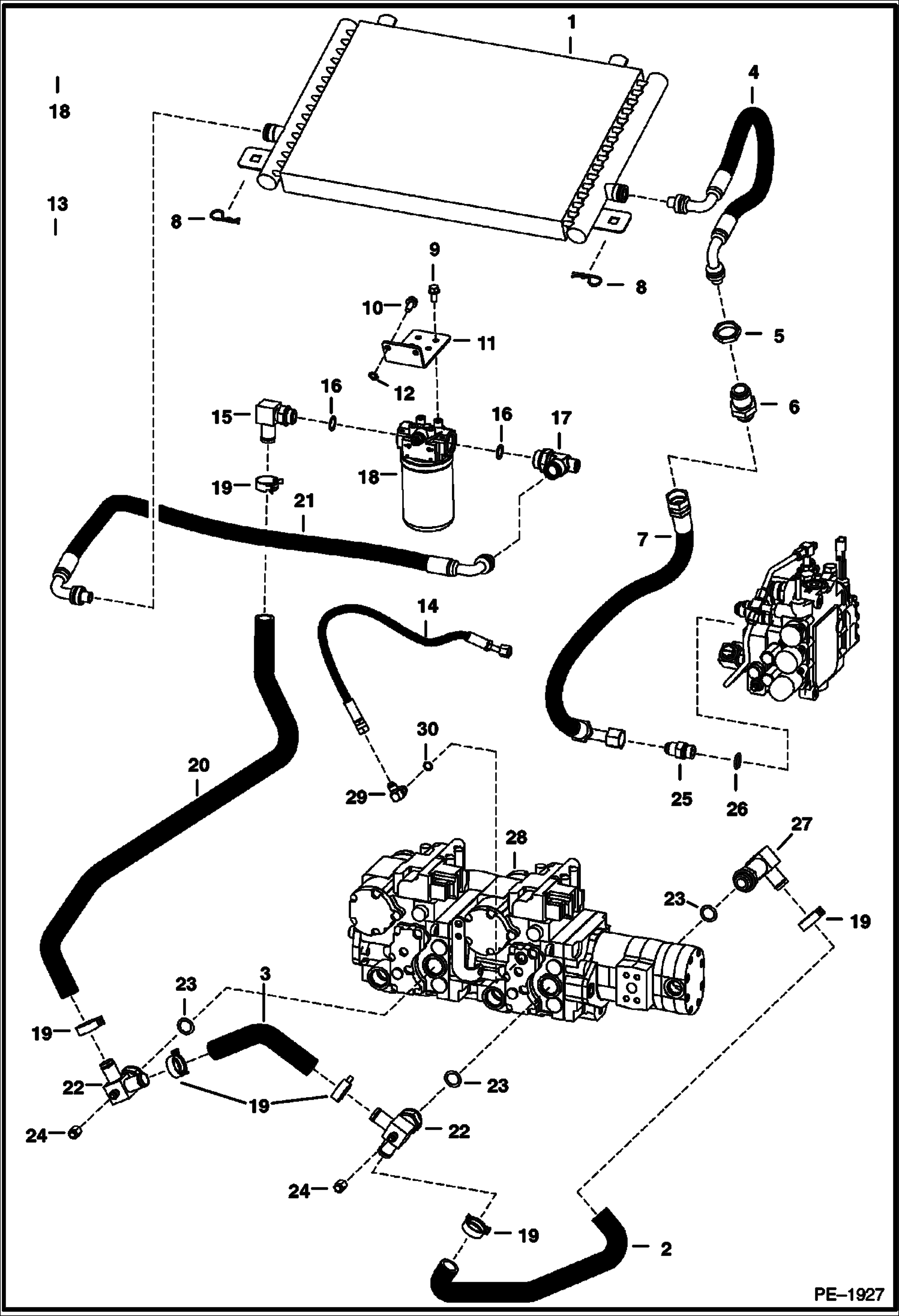

Запчасти Bobcat A-Series HYDROSTATIC CIRCUITRY (W/Cooler) HYDROSTATIC SYSTEM

1

6678156

COOLER oil - female -12 STC connector 1.23'' (31,2 mm) O.D. .82'' (20,8 mm) I.D.

1

6681501

SEAL KIT

2

6729475

HOSE

3

6729478

HOSE

4

6678773

HOSE

5

61E16

NUT

6

6678832

ELBOW STC

6

6690950

O-RING

7

6731145

HOSE

8

1318565

COTTER PIN

9

35C612

BOLT

10

84G3710

SCREW

11

6719446

MOUNT

12

6E6

WASHER

13

6672766

CHECK VALVE

14

6717921

HOSE

15

6727182

ELBOW W/Ref. 16

16

79K16

O RING 10

17

6678771

TEE W/Ref. 16

17

6690949

O-RING

18

6678155

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ C2818

18

6661248

FILTER, OIL HYD 12 #3 media - 152,4 mm (6'') long

19

5HM35

HOSECLAMP

20

6726694

HOSE

21

6678772

HOSE

22

6726992

TEE W/Ref. 23

22

97K6

O RING flared end

23

99K16

O-RING tapered boss face

23

79K16

O RING 10 flat boss face

24

36K5

CAP

25

15KB1212

FITTING, HYD CONNECTOR W/Ref. 26

26

79K12

O RING 10

27

6731181

TEE

28

6679821

PUMP

29

ELBOW NLA - W/Ref. 30 - tapered boss face - Was 17KV00005B - A

29

97K6

O RING flared end

29

17KB0606

FITTING W/Ref. 30 - flat boss face

30

99K6

O RING tapered boss face

30

79K6

O RING 10 flat boss face
