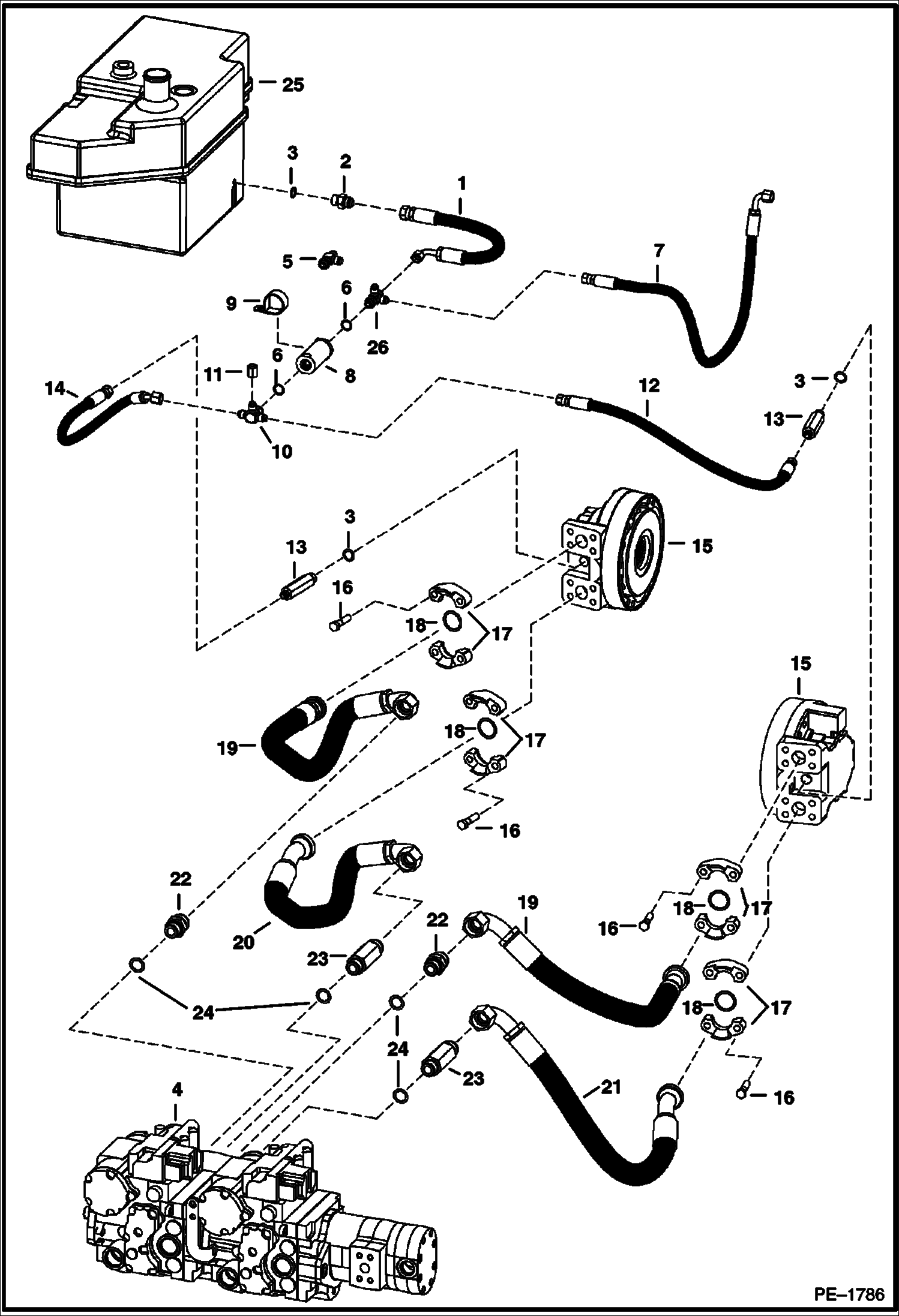

Запчасти Bobcat A-Series HYDROSTATIC CIRCUITRY (W/Motors) HYDROSTATIC SYSTEM

1

6733219

HOSE Was 6731162 - B,D

2

15KB0808

FITTING, HYD CONNECTOR W/Ref. 3 - Was 17KV00006B - B,D

3

99K8

O-RING

4

PUMP See Illustration HYDROSTATIC PUMP/ B16054

5

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 6 - Was 19KV00005B - B,D

6

99K6

O RING tapered boss face

7

6732483

HOSE

8

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527

9

30H79

CLAMP Was 30H000060B - B,D

10

6725497

CROSS W/Ref. 6

10

97K6

O RING flared end

11

36K5

CAP

12

7126010

HOSE Was 6732485 - A

13

6717306

ADAPTER W/Ref. 3

13

97K6

O RING flared end

14

6732484

HOSE

15

MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ B16657 See Illustration HYDROSTATIC MOTOR/ C3374

16

17C728

BOLT

17

20J16

FLANGE

18

55K219

O'RING

19

6679140

HOSE

20

6679139

HOSE

21

6679138

HOSE

22

ADAPTER NLA - W/Ref. 24 - 2.16'' (55mm) long - Was 6715878 - A

22

15KB1612

FITTING, HYD CONNECTOR W/Ref. 24 - 2.38'' (60mm) long

23

6716243

ADAPTER W/Ref. 24

24

75K12

O'RING 10 for 6715878 adapter

24

79K12

O RING 10 for 15KB01612B adapter

25

TANK See Illustration HYDROSTATIC CIRCUITRY/ PE2672

26

6718031

TEE W/Ref. 6
