Запчасти Bobcat A-Series FRONT COVER POWER UNIT

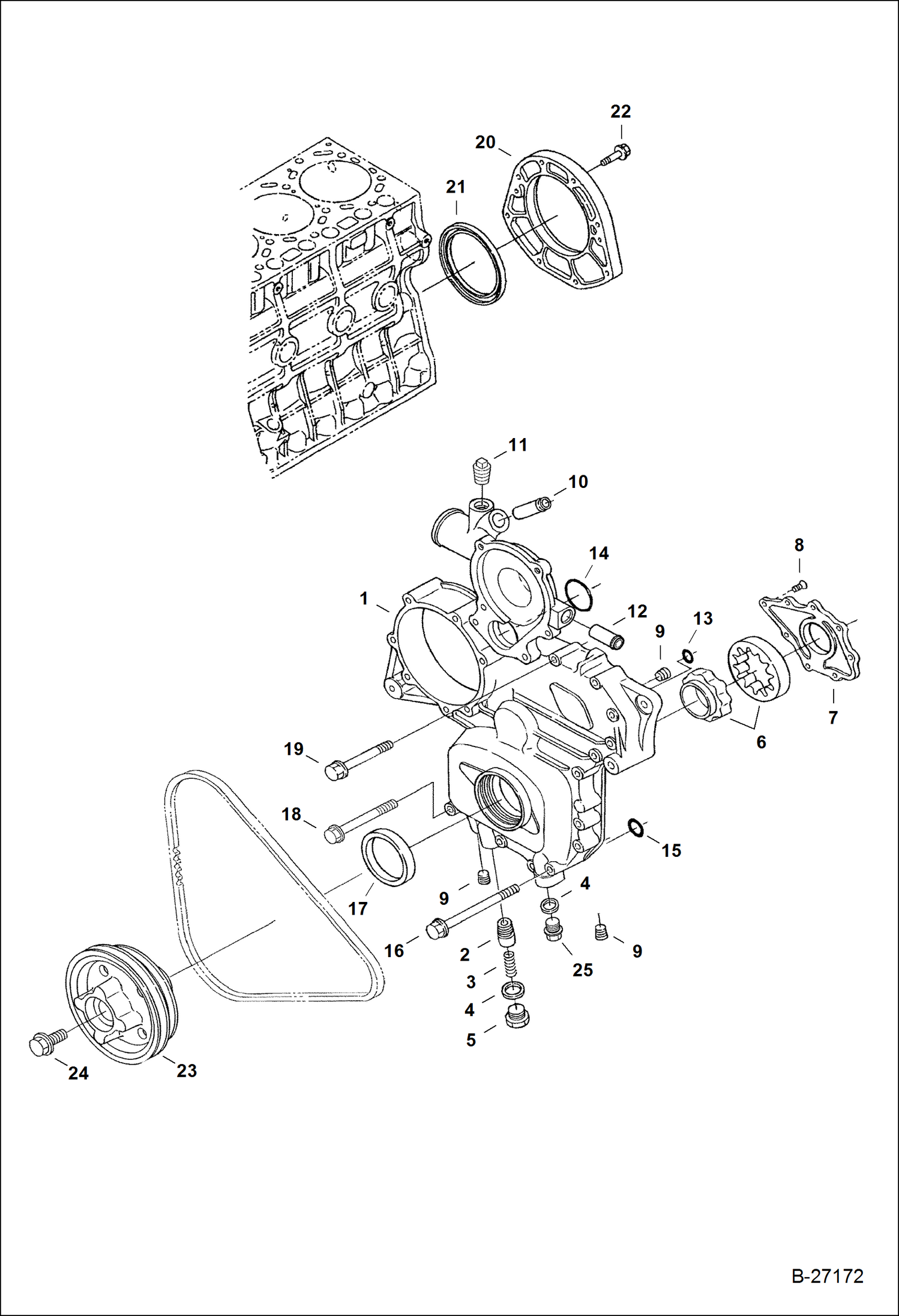

Схема запчастей Bobcat A-Series - FRONT COVER POWER UNIT

Артикул

Название

Примечание

Количество

1

6698546

HOUSING, GEAR ASSY W/Ref. 2-12

2

6685929

RELIEF VALVE

3

6680673

SPRING

4

6670347

GASKET

5

6680675

PLUG

6

6680676

ROTOR

7

6680677

COVER

8

6680678

SCREW

9

6680679

PLUG

10

6680689

ADAPTER

11

6684857

PLUG

12

6680689

ADAPTER

13

6680681

O-RING

14

6680855

O-RING

14

7012203

GASKET

15

6680682

O-RING

16

6693484

BOLT

17

6680680

SEAL

18

6693485

BOLT

19

6693483

BOLT

20

6680704

COVER W/Ref. 21

21

6680705

SEAL

22

6680706

BOLT

23

6921062

PULLEY, DRIVE Was 6698602 - A

23

6921062

PULLEY, DRIVE

24

6680841

BOLT flange

24

7000748

BOLT W/washer

25

6691294

PLUG

Выбрано товаров: 28
