Запчасти Bobcat A-Series CYLINDER HEAD & COVER POWER UNIT

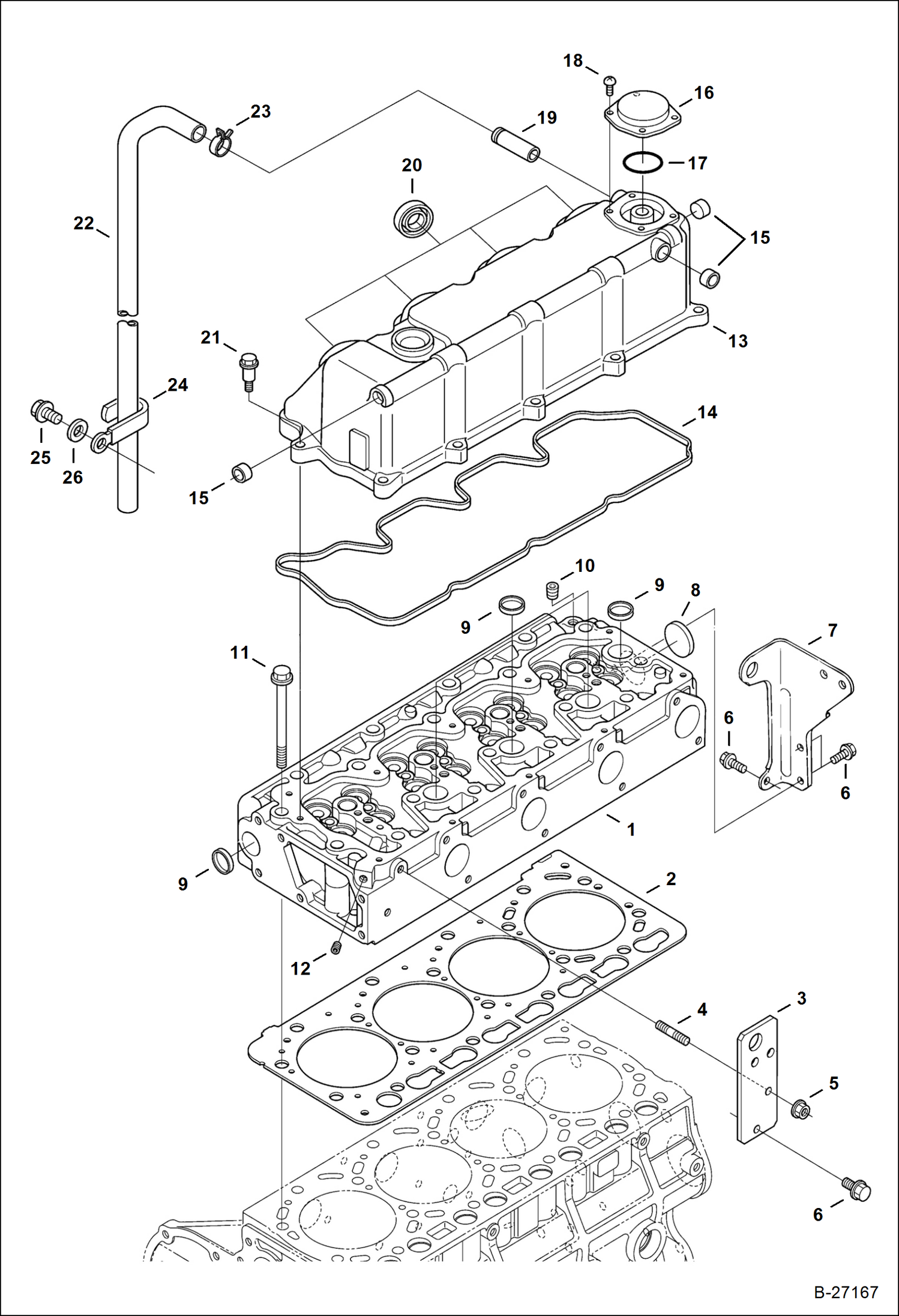

Схема запчастей Bobcat A-Series - CYLINDER HEAD & COVER POWER UNIT

Артикул

Название

Примечание

Количество

1

7020950

HEAD, CYL ENG See Illustration CYLINDER HEAD/ B27168 - Was 6693482 - A

2

6698597

GASKET, HEAD CYL std/2 notch - Was 6680669 - B,D

2

6698598

GASKET, HEAD CYL suitability/1 notch - Was 6680670 - B,D

2

6698589

GASKET, HEAD CYL suitability/no notch - Was 6680671 - B,D

3

6698545

HOOK, LIFT ENG

4

6652670

STUD

5

6969819

NUT, FLANGE

6

6680662

BOLT

7

6698526

HOOK, LIFT ENG

8

3974433

PLUG

9

3974432

PLUG

10

6680667

PLUG

11

6680668

BOLT

12

6652574

PLUG

13

6680688

HEAD COVER

14

6680690

GASKET

15

6680694

PLUG

16

6688655

COVER, BREATHER

17

6680691

O-RING

18

6680693

SCREW

19

6680689

ADAPTER

20

6680695

SEAL

21

6680696

BOLT

22

6685930

HOSE

23

6680698

CLAMP

24

6680699

CLAMP

25

6680658

BOLT

26

6680700

WASHER
