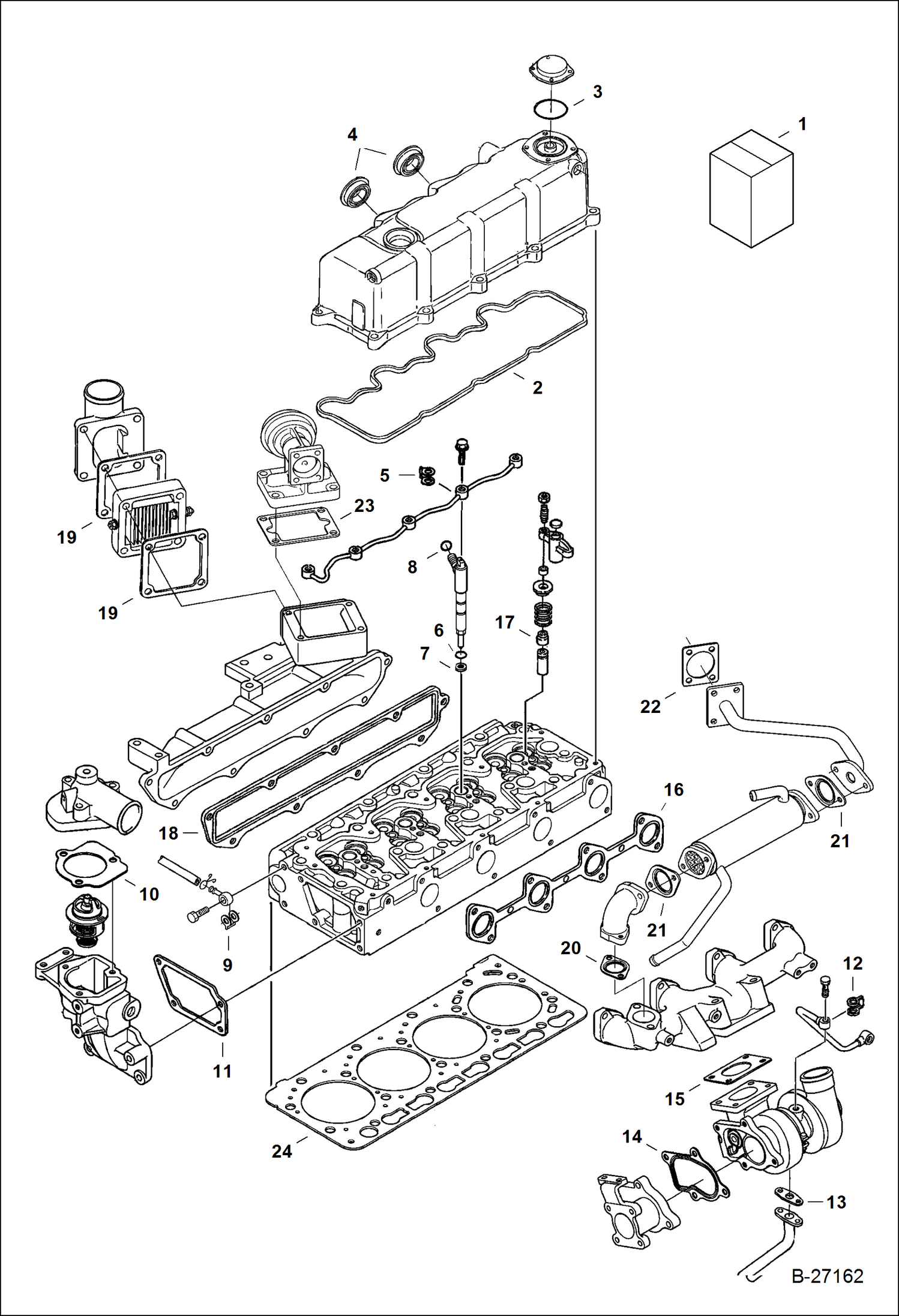

Запчасти Bobcat A-Series UPPER GASKET KIT POWER UNIT

1

6689756

KIT, GASKET ENG UPPER Ref. 2-19 - Also Order Ref. 20-24

2

6680690

GASKET See Illustration CYLINDER HEAD & COVER/ B27167 - valve cover

3

6680691

O-RING See Illustration CYLINDER HEAD & COVER/ B27167 - breather

4

6680695

SEAL See Illustration CYLINDER HEAD & COVER/ B27167 - injection pipe

5

6685498

GASKET See Illustration FUEL INJECTION SYSTEM/ B27174

6

6670769

O-RING See Illustration FUEL INJECTION SYSTEM/ B27174 - injector nozzle

7

6969824

GASKET, NOZZLE INJ Was 6680779 - B

8

6680778

O-RING See Illustration FUEL INJECTION SYSTEM/ B27174 - injection pipe

9

6698528

WASHER, SEALING Was 3974095 - B

10

6685955

GASKET See Illustration WATER PUMP & THERMOSTAT/ B27173 - thermostat cover

11

6680849

GASKET See Illustration WATER PUMP & THERMOSTAT/ B27173 - thermostat housing

12

7000642

WASHER, SEALING COPPER See Illustration TURBOCHARGER/ B27165 Was 6685962 - B

13

6680570

GASKET See Illustration TURBOCHARGER/ B27165 - oil return

14

6691588

GASKET See Illustration TURBOCHARGER/ B27165 - turbocharger flange

15

7008514

GASKET, TURBO See Illustration TURBOCHARGER/ B27165 turbocharger - Was 6680893 - A

16

6680891

GASKET See Illustration MANIFOLDS/ B27164 - exhaust manifold

17

6672436

SEAL See Illustration CYLINDER HEAD/ B27168 - valve stem

18

6680884

GASKET See Illustration MANIFOLDS/ B27164 - intake manifold

19

6680887

GASKET See Illustration MANIFOLDS/ B27164 - intake flange

20

6698583

GASKET, EGR FLANGE See Illustration EGR VALVE/ B27166 - not in kit

21

6698582

GASKET, EGR PIPE See Illustration EGR VALVE/ B27166 - not in kit

22

6698534

GASKET, EXHAUST See Illustration EGR VALVE/ B27166 - not in kit

23

6698581

GASKET, EGR VALVE See Illustration EGR VALVE/ B27166 - not in kit

24

GASKET, HEAD CYL ENG See Illustration CYLINDER HEAD & COVER/ B27167 - not in kit
