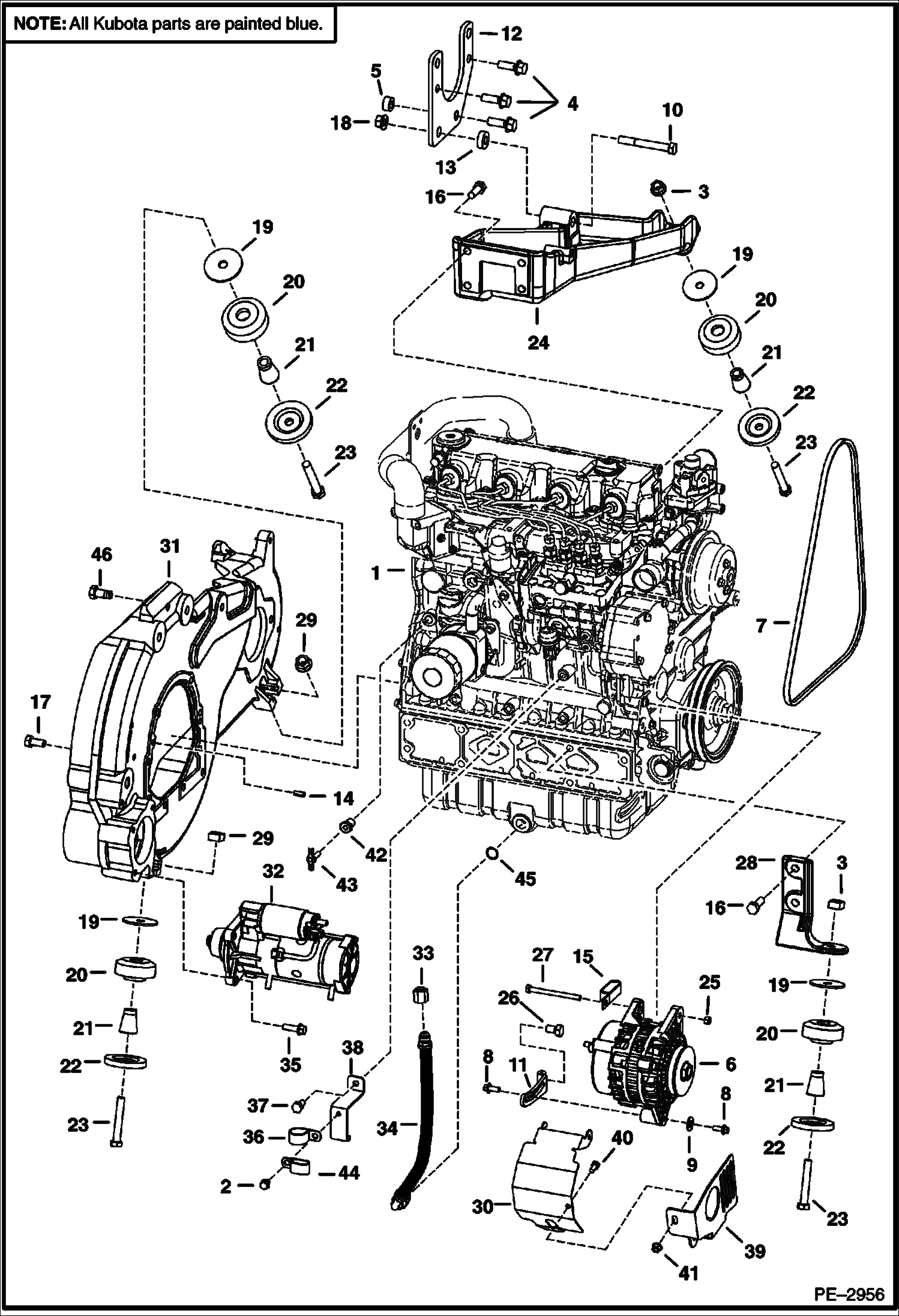

Запчасти Bobcat A-Series ENGINE & ATTACHING PARTS (Engine Mounts) (S/N A5GY11001 - 19999, A5GW11001 - 20001) POWER UNIT

1

ENGINE See Illustration ENGINE & GASKET KITS/ NA5150

2

84G3116

SCREW

3

83D8

NUT 5

4

31C824

BOLT 10 for manual controls, AHC, ACS

4

7131273

SCREW selectable joystick controls

5

7105753

SPACER

6

ALTERNATOR See Illustration ALTERNATOR/ C3529

7

6686655

BELT alt/water pump

8

29CM820

SCREW

9

6E5

WASHER

10

BOLT 5 See Illustration ENGINE MOUNTS/ NA2353

11

6732193

BRACKET

12

SUPPORT See Illustration ENGINE MOUNTS/ NA2353

13

7106750

SPACER for manual controls, AHC, ACS

13

7106750

SPACER for SJC - Was 7107572 - A

14

14J3112

PIN align Ref. 31 to the engine

15

31H34

CLIP

16

6719829

BOLT

17

6719828

BOLT

18

83D10

NUT 5

19

6705106

WASHER 3'' (76,2 mm) OD

20

6668104

MOUNT, ENG

21

7110276

SPACER, TAPERED

22

6661787

WASHER

23

43C852

BOLT

24

MOUNT See Illustration ENGINE MOUNTS/ NA2353

25

53DM8

NUT

26

6CM1220

BOLT

27

1CM8110

HEX CAP S

28

6735346

MOUNT cast

29

6652918

NUT

30

6733873

SHIELD alternator

31

7141328

MOUNT ENGINE

32

HOSE NLA - (.25'' ID - 42'' (1067 mm) long) - Order Ref. 19

32

STARTER See Illustration STARTER/ B16488R

33

36K6

CAP

34

7166608

HOSE, DRAIN OIL ENG 13'' (330, mm) long - Was 6734573 - A

35

45C620

BOLT

36

30H73

CLAMP

37

5CM1020

SCREW

38

7112683

BRACKET

39

6734436

SHIELD alt belt

40

17C510

BOLT

41

83D5

NUT 5

42

7101136

BUSHING

43

72F1

FITTING

44

31H34

CLIP

45

79K8

O RING 10

46

31C820

BOLT
