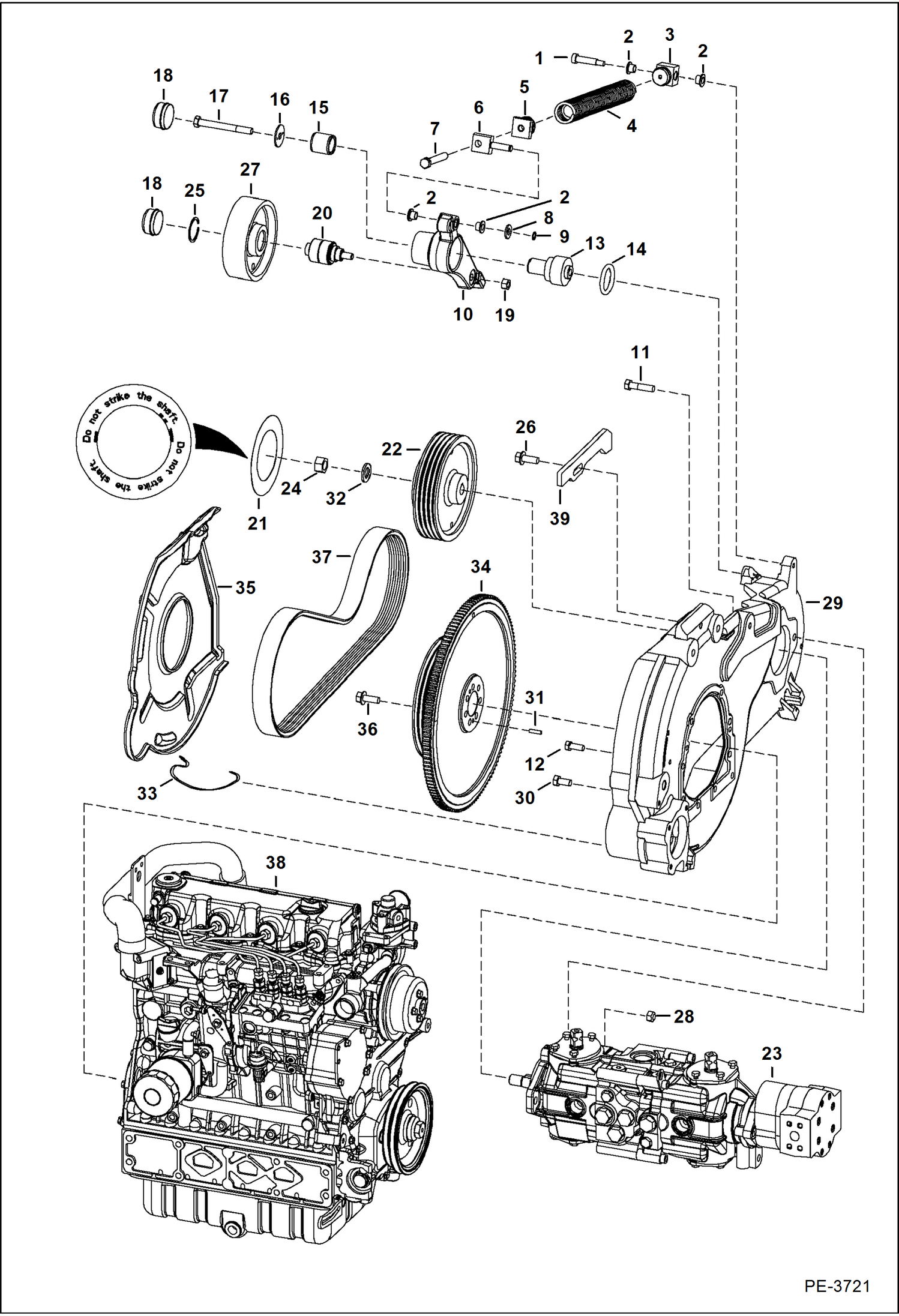

Запчасти Bobcat A-Series ENGINE & ATTACHING PARTS (Belt Drive System) POWER UNIT

1

38C828

BOLT shoulder

2

1313116

BUSHING

3

6568424

ADAPTER

4

6569498

SPRING ASSY

5

6568425

ADAPTER

6

6587182

SWIVEL PIN

7

6586710

BOLT

8

1EM120

WASHER

9

6518955

SNAP RING

10

6735709

IDLER

11

17C832

BOLT hydrostatic pump mount

12

6730894

BOLT

13

6707699

PIVOT

14

6661377

SEAL

15

6587765

BUSHING, PRESS FIT

16

6707698

WASHER

17

17C872

BOLT

18

6660967

CAP grease

19

95D8

NUT

20

6691330

BEARING idler

21

DECAL NLA - pulley - do not strike

22

7111581

PULLEY pump - 8.5'' (216 mm) OD

23

PUMP See Illustration HYDROSTATIC PUMP/GEAR PUMP/ PE2975

24

92D12

NUT

25

6665308

SNAP RING

26

31C820

BOLT

27

6708445

PULLEY drive idler

28

85D8

NUT, 5

29

7141328

MOUNT ENGINE

30

6719828

BOLT

31

14J3112

PIN

32

6576033

WASHER

33

6701160

CLIP

34

7100859

FLYWHEEL ASSY W/ ring gear

34

6665222

GEAR, RING STARTER

35

7141330

SHIELD DRIVE has webbed center

36

6680747

BOLT, FLYWHEEL

37

6662855

BELT, DRIVE pump drive

38

ENGINE See Illustration ENGINE & GASKET KITS/ NA5150

39

6729944

STOP idler
