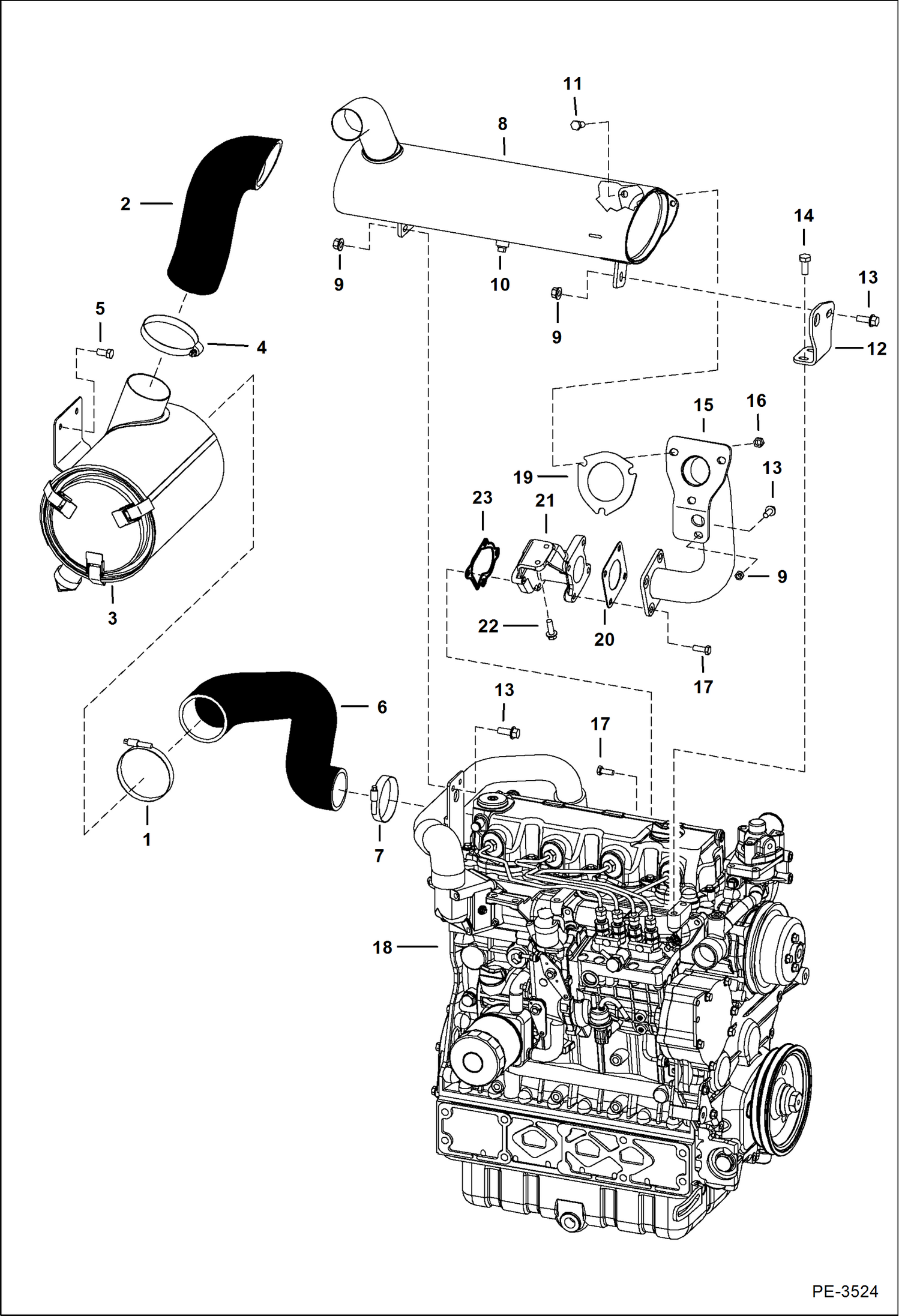

Запчасти Bobcat A-Series ENGINE & ATTACHING PARTS (Air Cleaner, Muffler) POWER UNIT

1

42HC375

CLAMP

2

7141274

HOSE

3

AIR CLEANER See Illustration AIR CLEANER/ PE3523

4

42H52

CLAMP

5

84G3712

BOLT 5

6

7126917

HOSE

7

42HC300

CLAMP

8

7126109

MUFFLER

9

89D6

NUT Was 83D6 - B

10

6661062

PLUG brass - 0.38''

11

17C620

BOLT

12

7111805

MOUNT

13

45C616

BOLT

14

6719825

BOLT

15

7133460

TUBE ASSY

16

85D6

NUT, 5

17

5CM1020

SCREW

18

ENGINE See Illustration ENGINE & GASKET KITS/ NA5150

19

6732032

GASKET

20

7102747

GASKET

21

6698525

FLANGE, MUFFLER

22

6680755

BOLT

23

6691588

GASKET
