Запчасти Bobcat A-Series CAB ELECTRICAL CIRCUITRY (S/N A5GW20001 & Above, A5GY20001 & Above) ELECTRICAL SYSTEM

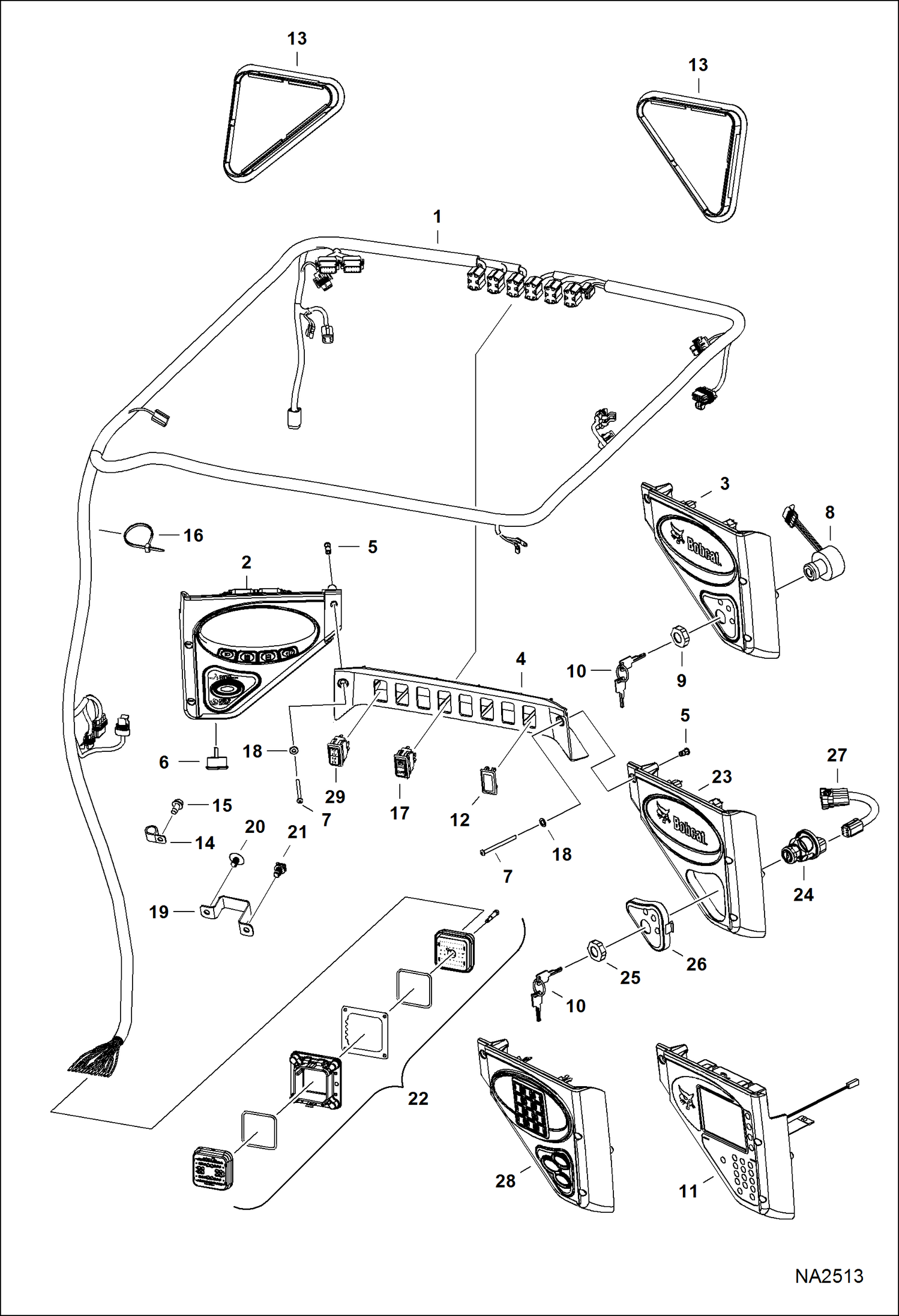

Схема запчастей Bobcat A-Series - CAB ELECTRICAL CIRCUITRY (S/N A5GW20001 & Above, A5GY20001 & Above) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

7139311

HARNESS, CAB DLX W/Ref. 22

2

6693886

PANEL, LH lit gauges - W/Ref. 6

2

6692545

SWITCH press to operate

3

PANEL, KEY STANDARD NLA - RH W/Ref. 8 & 9 - Order Ref. 23 & 27 - Was 6693887 - A

4

6691081

PANEL CENTER SWITCH

5

6675033

INSERT threaded

6

6692489

ALARM, BUZZER

7

7105983

BOLT

8

SWITCH NLA - Order Ref. 24, 26 & 27 - Was 6693246 - A

9

6674202

NUT

10

6693241

KEY 10 ignition - single key W/O ring

11

6692935

PANEL, INSTRUMENTATION DELUXE RH - keyless

12

6665314

PLUG cover

13

6718042

LIGHT ASSY LEFT

13

6675336

LIGHT, BULB 50W

13

6718043

LIGHT ASSY RIGHT

13

6675336

LIGHT, BULB 50W

14

30H75

CLAMP

15

84G3712

BOLT 5

16

6624289

STRAP, TIE Was 6610510 - B

17

6690948

SWITCH PARK BRAKE

18

25E10

WASHER

19

7138645

GUIDE

20

6674895

RETAINER

21

7015668

MOUNT, STRAP TIE push in - Use W/tie strap - Was 6678666 - B

22

CONNECTOR ASSEMBLY See Illustration CONNECTOR HARNESS ASSEMBLY/ PE3684 - NSS - engine & cab - Order components

23

7001039

PANEL, START KEYED W/Ref. 24-26

24

6693245

SWITCH, IGN W/Ref. 25

25

7009081

NUT

26

7000443

INSERT, SWITCH IGN

27

7169538

HARNESS, SWITCH IGN Use W/Ref. 24 only

28

KIT, PANEL START KEYLESS See Illustration KEYLESS PANEL KIT/ NA2100

29

6689020

SWITCH SP ROCKER AWS

Выбрано товаров: 33
