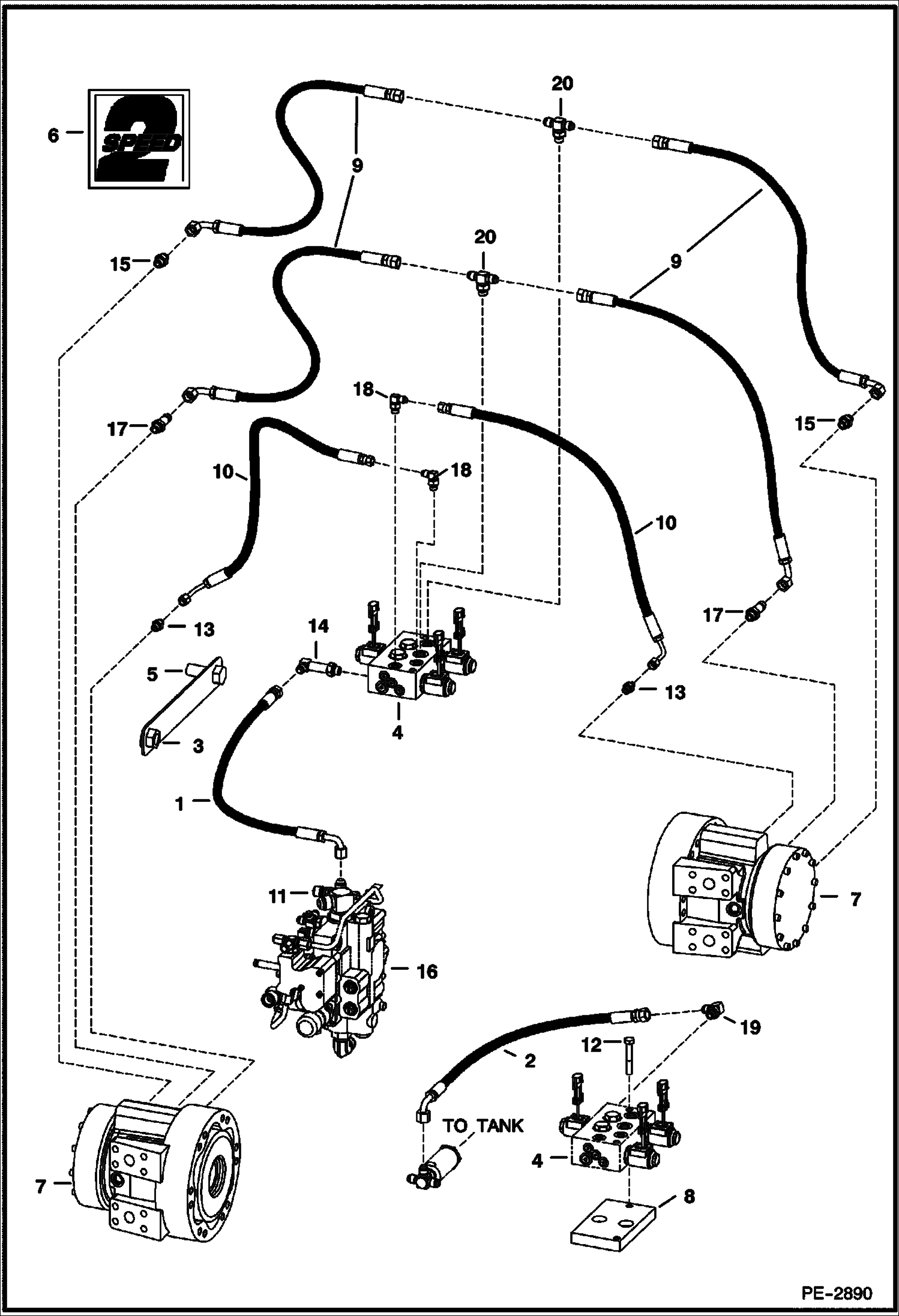

Запчасти Bobcat A-Series HYDROSTATIC CIRCUITRY (2 Speed Option) HYDROSTATIC SYSTEM

1

6806058

HOSE

2

6628613

HOSE

3

83D12

NUT

4

VALVE See Illustration 2-SPEED VALVE/ MS1385 - 2-speed

5

31C1228

BOLT

6

6729078

DECAL

7

MOTOR

8

6729039

BLOCK 2-speed

9

6729590

HOSE

10

6729591

HOSE

11

7102066

CROSS

11

97K6

O RING

12

17C640

BOLT 5 Was 43C640 - B

13

15KB0404

FTG HYD S Connector

13

79K4

O RING 10

14

6812815

FITTING

15

15KB0606

FITTING, HYD CONNECTOR

15

79K6

O RING 10

16

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2378

17

7122214

ADAPTER

17

79K6

O RING 10

18

17KB0404

FTG HYD ELBOW 90

18

79K4

O RING 10

19

17KB0606

FITTING

20

19KB0606

TEE

20

79K6

O RING 10
