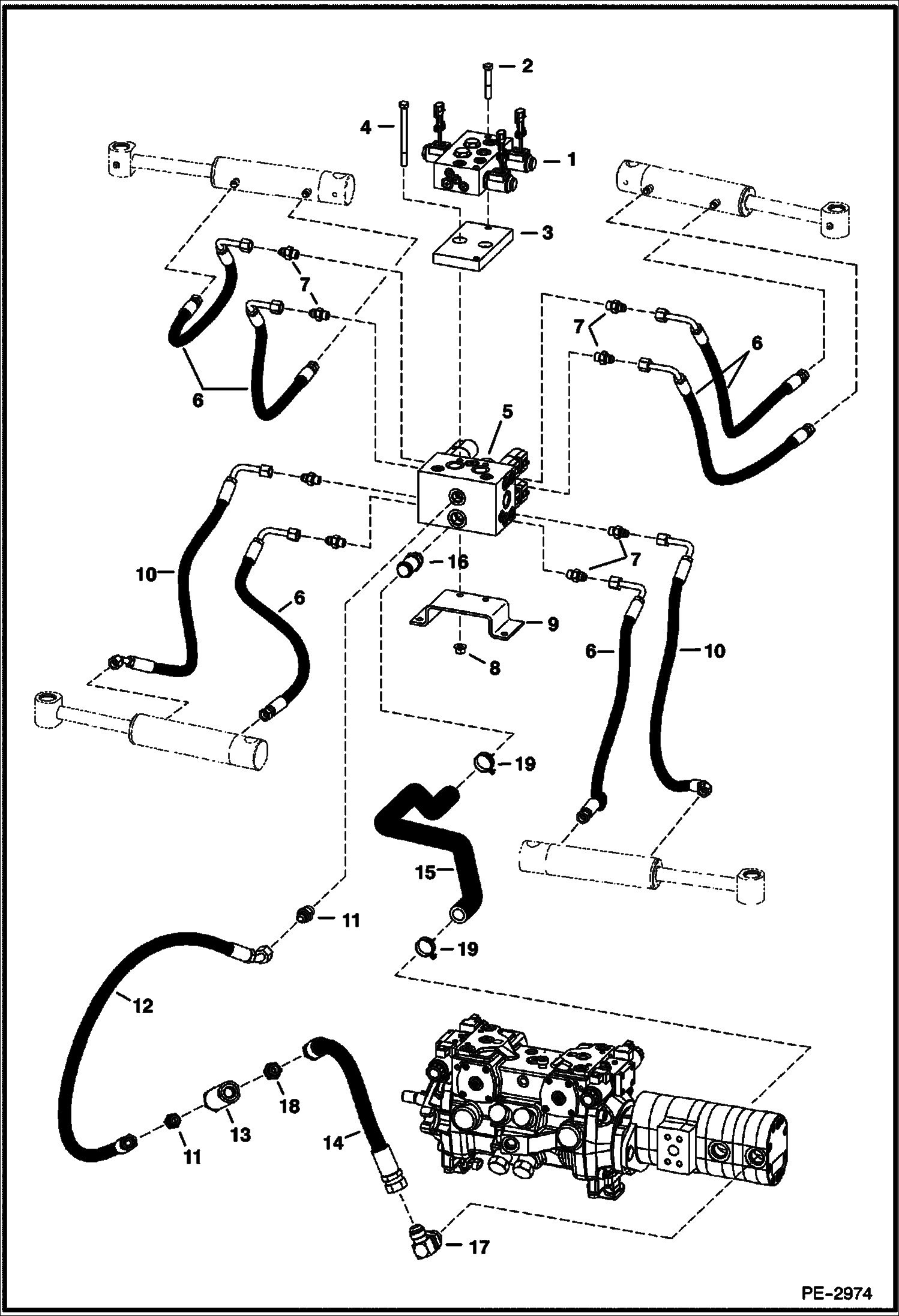

Запчасти Bobcat A-Series HYDROSTATIC CIRCUITRY (Steering Valve) HYDROSTATIC SYSTEM

1

VALVE See Illustration 2-SPEED VALVE/ MS1385 - 2-speed

2

43C640

BOLT

3

6729039

BLOCK 2-speed

4

17C672

BOLT

5

VALVE See Illustration STEERING VALVE/ MS1174 - steering

6

6736693

HOSE

7

15KB0606

FITTING, HYD CONNECTOR

7

79K6

O RING 10

8

83D6

NUT 5

9

6735776

MOUNT

10

6736907

HOSE

11

15KB0808

FITTING, HYD CONNECTOR

11

79K8

O RING 10

12

7108787

HOSE

13

6679143

FILTER, VALVE STEERING IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B22136 - in-line - steering

14

7111127

HOSE

15

7113383

HOSE

16

6715133

FITTING

16

79K10

O RING 10

17

17KB1212

FITTING, HYD ELBOW

17

79K12

O RING 10

18

15KB1008

FITTING, HYD CONNECTOR

18

79K8

O RING 10

19

5HM32

CLAMP
