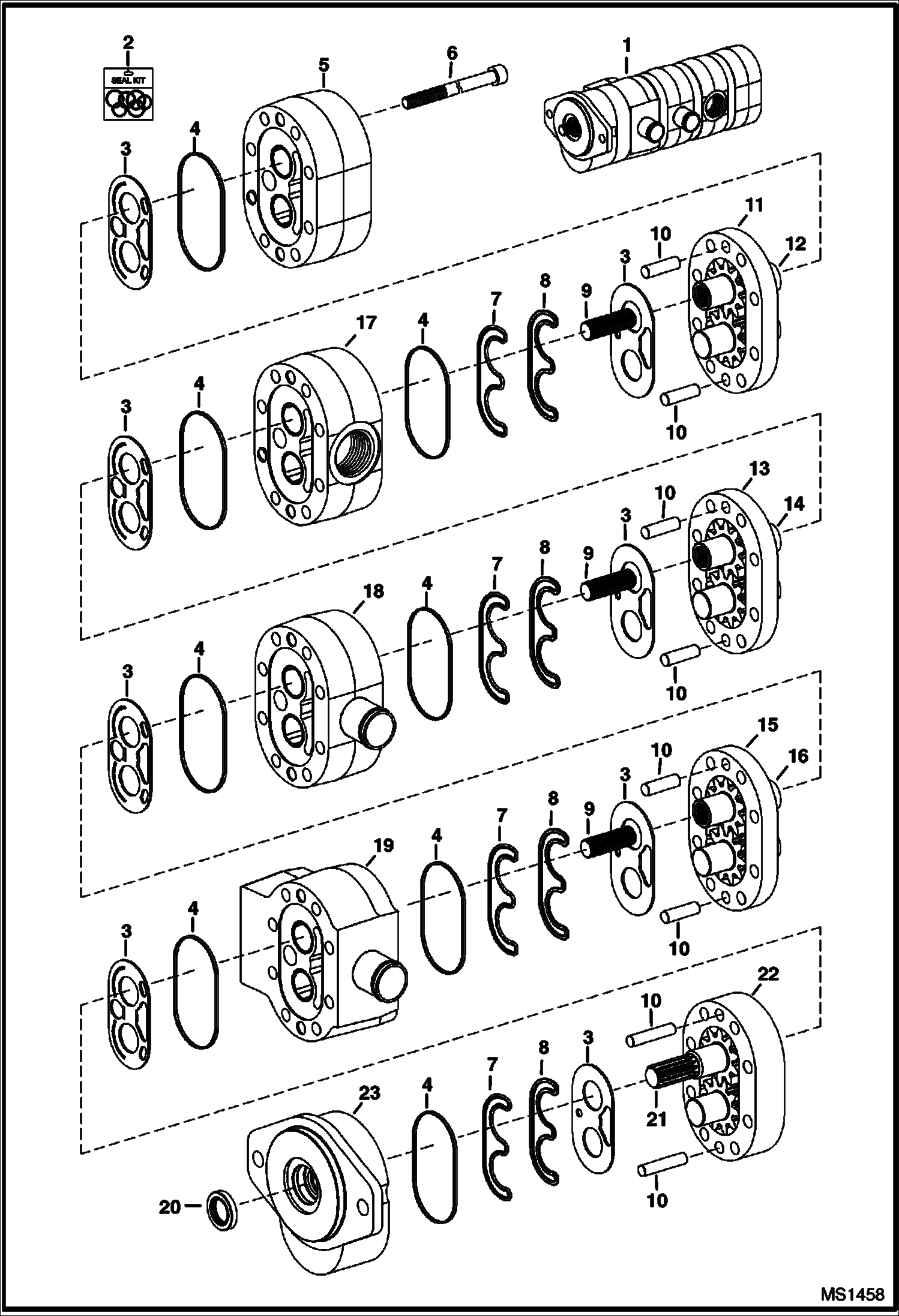

Запчасти Bobcat A-Series HIGH FLOW GEAR PUMP HIGH FLOW HYDRAULICS

1

6686890

GEAR PUMP 163D72400

2

6689630

SEAL KIT

3

WEAR PLATE NSS

4

SEAL, SECTION NSS

5

HOUSING, REAR NSS

6

BOLT NSS

7

SEAL, PRE-LOAD NSS

8

SEAL, LOAD NSS

9

CONNECTOR, SPLINE NSS

10

PIN NSS

11

HOUSING, GEAR NSS

12

GEAR SET NSS

13

HOUSING, GEAR NSS

14

GEAR SET NSS

15

HOUSING, GEAR NSS

16

GEAR SET NSS

17

HOUSING, CENTER NSS

18

HOUSING, CENTER NSS

19

HOUSING, CENTER NSS

20

SEAL, SHAFT NSS

21

GEAR SET NSS - drive

22

HOUSING, GEAR NSS

23

HOUSING, FRONT NSS
