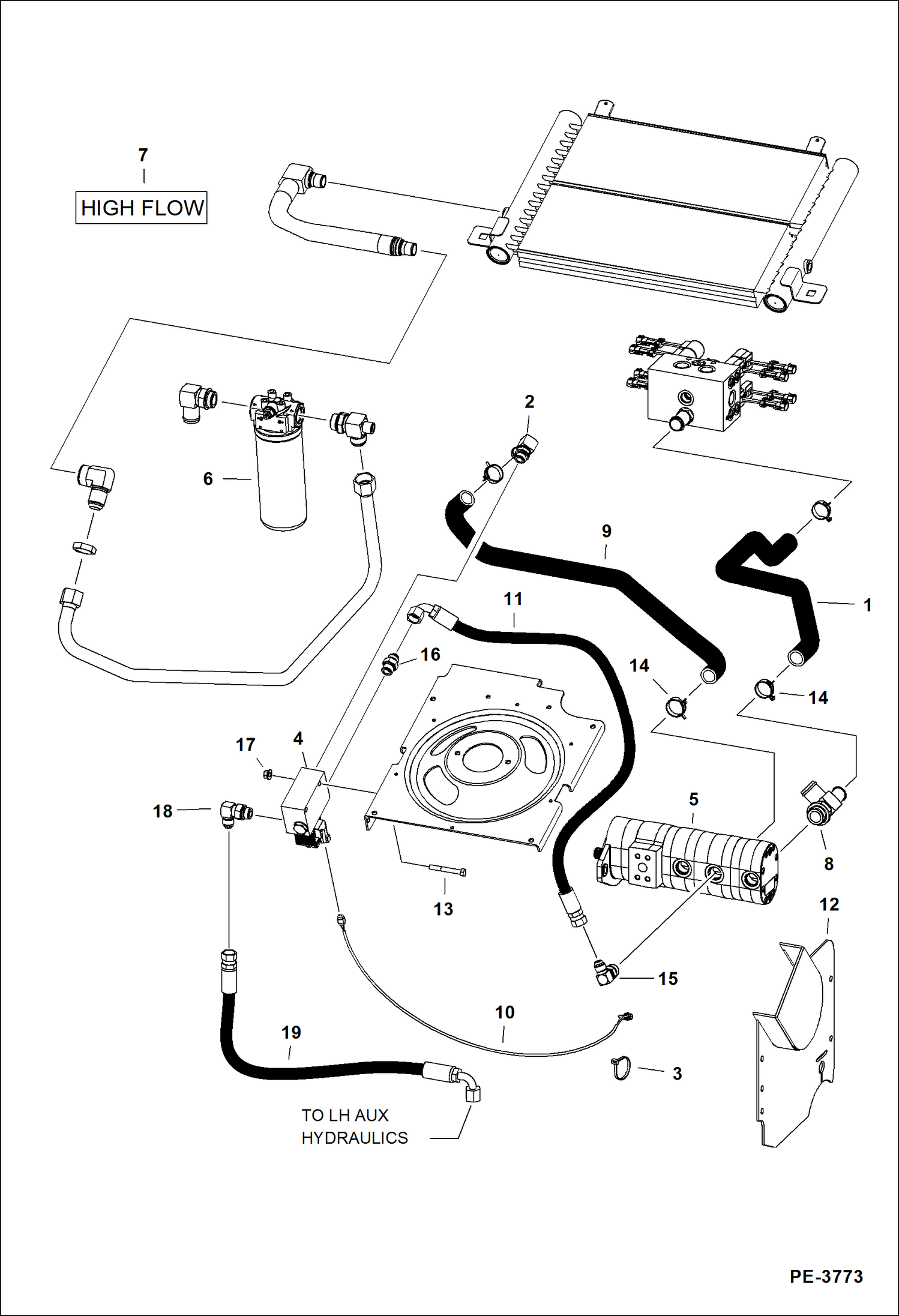

Запчасти Bobcat A-Series HIGH FLOW HYDRAULICS (S/N A5GW20095 & Above) (S/N A5GY20062 & Above) HIGH FLOW HYDRAULICS

1

7108764

HOSE

2

7121330

FITTING

2

79K10

O RING 10

3

6624289

STRAP, TIE

4

VALVE See Illustration HIGH FLOW HYDRAULICS/ B22497

5

PUMP See Illustration HYDROSTATIC PUMP/GEAR PUMP/ PE2975

6

6685847

FILTER ASSY

7

7120602

DECAL

8

7108750

TEE

8

79K16

O RING 10

9

7124635

HOSE

10

6736767

HARNESS

11

7164778

HOSE Was 7127712 - B

12

7135766

COVER remove and discard frame bolt that interferes with cover

13

17C644

BOLT

14

5HM32

CLAMP

15

17KB1012

FITTING, HYD ELBOW

16

15KB1010

FITTING, HYD CONNECTOR

17

83D6

NUT 5

18

17KB1010

FITTING, HYD ELBOW Use W/Ref. 24

18

79K10

O RING 10

19

7142399

HOSE, HYD ASSY
