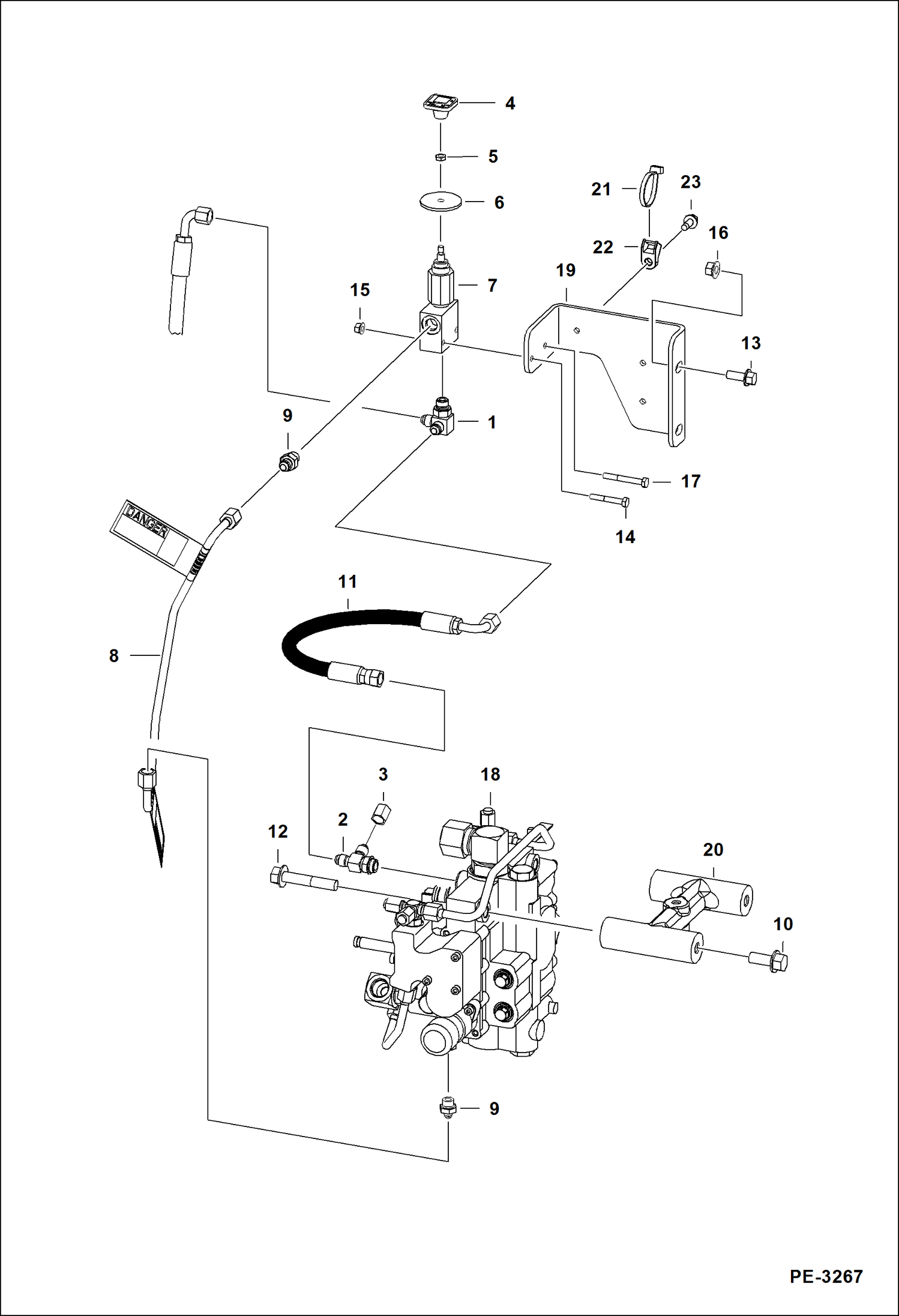

Запчасти Bobcat A-Series LIFT & TILT CONTROL CIRCUITRY HYDRAULIC SYSTEM

1

6725182

TEE

1

79K6

O RING 10

2

21KB0606

FTG HYD STRAIGHT TEE

2

79K6

O RING 10

3

36K5

CAP

4

6737524

KNOB

5

7D4

NUT

6

6707101

SEAL neoprene

7

7230495

VALVE, LIFT MANUAL manual lift - Was 6667844 - A

8

7148997

TUBELINE, HYD available only as an assembly W/two danger decals installed

8

6809511

DECAL, DANGER

9

15KB0606

FITTING, HYD CONNECTOR

9

79K6

O RING 10

10

31C820

BOLT

11

7110284

HOSE

12

17C844

BOLT

13

35C616

BOLT 5

14

17C428

BOLT

15

83D4

NUT 10

16

83D6

NUT 5

17

17C432

BOLT

18

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2378 - control

19

6718881

BRACKET

20

7109934

MOUNT, VALVE

21

6624289

STRAP, TIE

22

6678667

MOUNT

23

84G3112

BOLT 5
