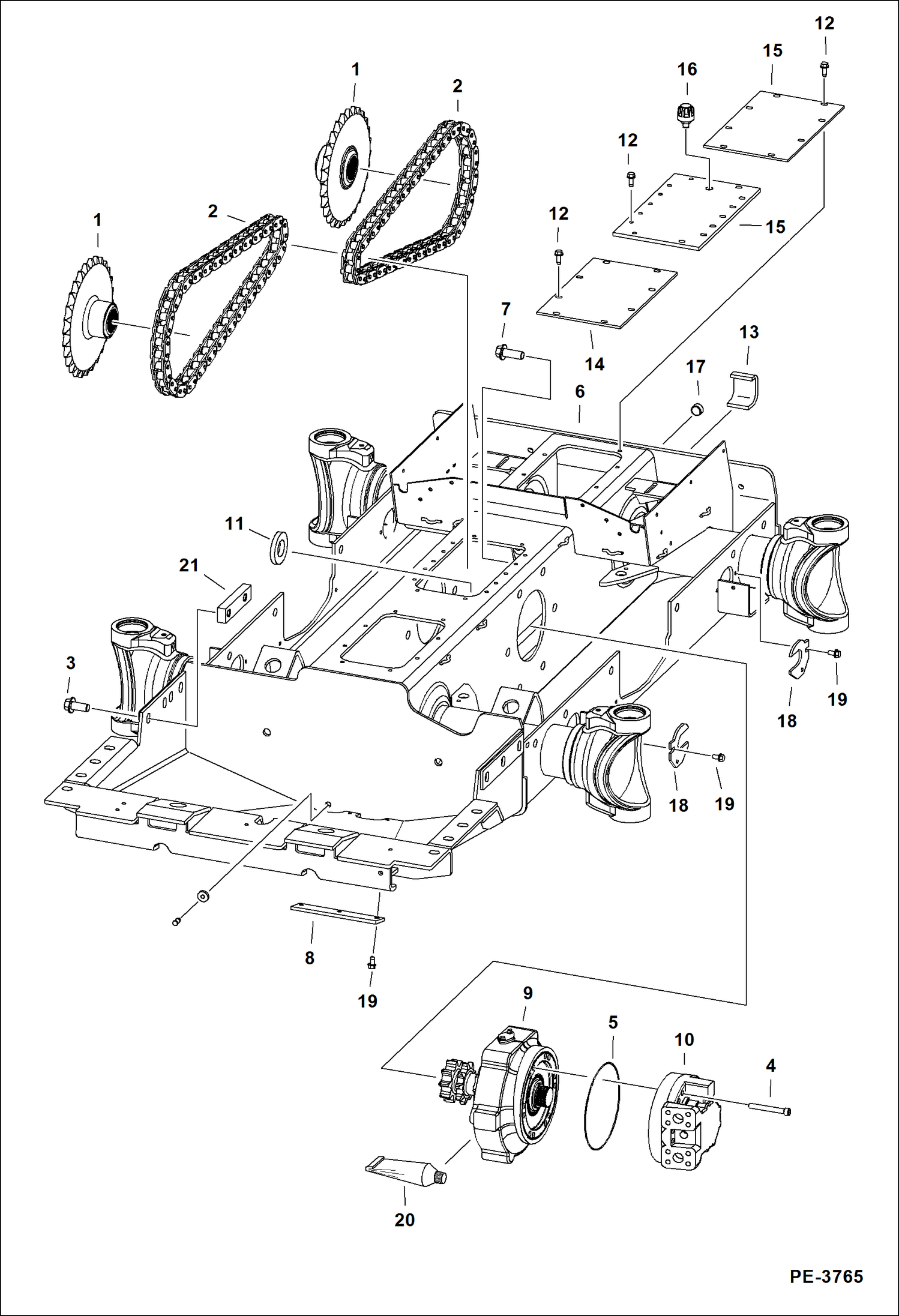

Запчасти Bobcat A-Series DRIVE TRAIN DRIVE TRAIN

1

7134165

SPROCKET

2

7106862

CHAIN, DRIVE endless - 48 pitches

2

6690988

CHAIN, DRIVE service

2

6691078

LINK connecting

3

31C1228

BOLT

4

6717806

BOLT

5

25K30816

O-RING Was 25K30812 - B,D

6

CHAINCASE See Illustration ENGINE & ATTACHING PARTS/ PE3755 - NLA - Order 7113822 chaincase, (4) each of 7116850 spacer, 43C860 screw & (8) each of 7116851 cup, 7161717 mount - Was 7113822 - A

6

7113822

CHAINCASE frame only

7

6678971

BOLT motor mount

8

6700182

COVER, DRAIN

9

MOUNT ASSY See Illustration MOTOR CARRIER/ PE3328

10

MOTOR See Illustration HYDROSTATIC MOTOR & BRAKE/ MS2218

11

6680055

MAGNET

12

84G3716

SCREW 5

13

6706485

HOOK tie down - weld-on

14

7129987

COVER

15

7130369

COVER

16

7025626

VENT, BREATHER - Was 6684923 - A

17

6731121

PLUG chaincase fill

18

6731052

COVER

19

84G3712

BOLT 5

20

6685372

SEALANT, GASKET LIQUID 10.1 OZ tube - 0.57 kg (20 oz)

21

7124840

BAR 2 hole threaded
