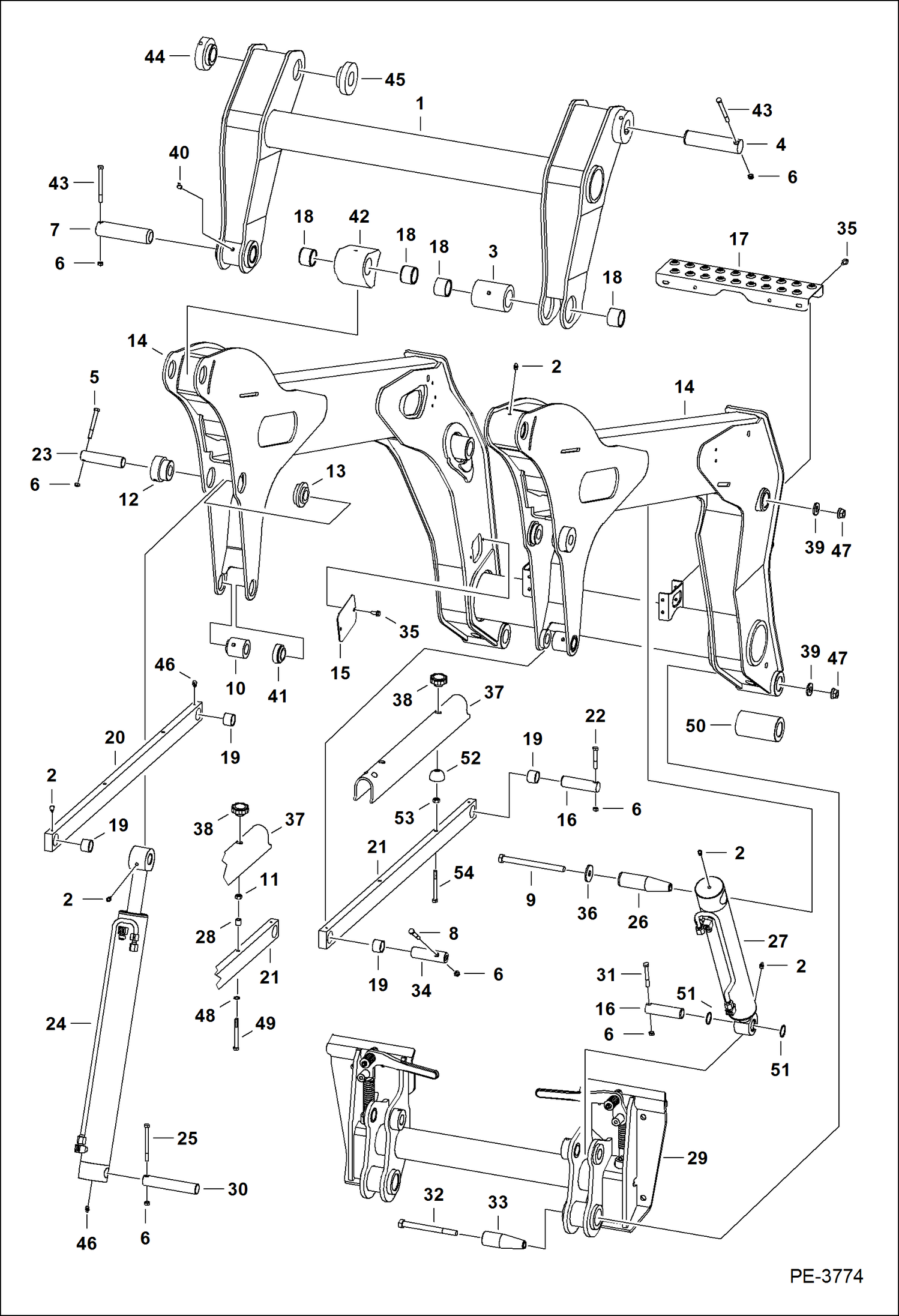

Запчасти Bobcat A-Series LIFT ARMS & BOBTACH MAIN FRAME

1

6726966

FRAME LINK H-Frame

2

12H15

FITTING, GREASE 5 90 degree

3

6728800

BUSHING

4

6728820

PIN 7.118'' long

5

17C656

BOLT

6

85D6

NUT, 5

7

6728819

PIN 6.90'' (175,26 mm) long

8

17C644

BOLT

9

17C10136

BOLT

10

6729423

BUSHING weld-on

11

6718942

NUT

12

6729005

BUSHING weld-on

13

6729006

BUSHING weld-on

14

7115857

LIFT ARM

15

6731179

COVER

16

6577954

PIN, PIVOT 1.25'' x 4.65'' (31,7 mm x 118 mm)

17

6729888

STEP

18

6730995

BUSHING, WEAR

19

6731647

BUSHING wear

20

6729468

LINK ASSY LH - W/Ref. 19

21

6729468

LINK ASSY RH - Also Order (2) each of Ref. 11, 28, 48 & 49 for mounting Ref. 37 lift arm stop - Was 6726969 - A

22

17C640

BOLT 5

23

6729007

PIN, PIVOT

24

CYLINDER See Illustration LIFT CYLINDER/ PE2260 - Lift

25

17C664

BOLT

26

6728971

PIN, PIVOT TAPERED

27

CYLINDER See Illustration TILT CYLINDER/ PE1520 - Tilt

28

6532347

SPACER

29

BOB-TACH See Illustration BOB-TACH/ PE3063

30

6730887

PIN

31

17C648

BOLT 5

32

17C10112

BOLT

33

6729358

PIN, PIVOT TAPERED

34

6731139

PIN, PIVOT

35

84G3112

BOLT 5

36

6731160

WASHER

37

6731569

STOP lift arm

38

6684932

KNOB

39

27E10

WASHER

40

11H15

GREASE FITTING 45 degree

41

6731138

BUSHING

42

LIFT ARM END NLA - Use W/Ref. 14 (7115857 lift arm)

43

17C672

BOLT

44

6727525

BUSHING, WELD-ON

45

6727832

BUSHING, WELD-ON

46

12H15

FITTING, GREASE 5 90 degree

47

53D10

NUT locking

48

6E6

WASHER

49

6731646

BOLT stainless steel

50

6728999

BUSHING, WELD-ON weld on

51

225855

SEAL, OIL 10 38 mm (1.5'') OD

52

7201355

DAMPER

53

7D6

NUT

54

7197120

BOLT
