Запчасти Bobcat A-Series OPERATOR CAB (Deluxe) (A5GW20001 & Above, A5GY20001 & Above) MAIN FRAME

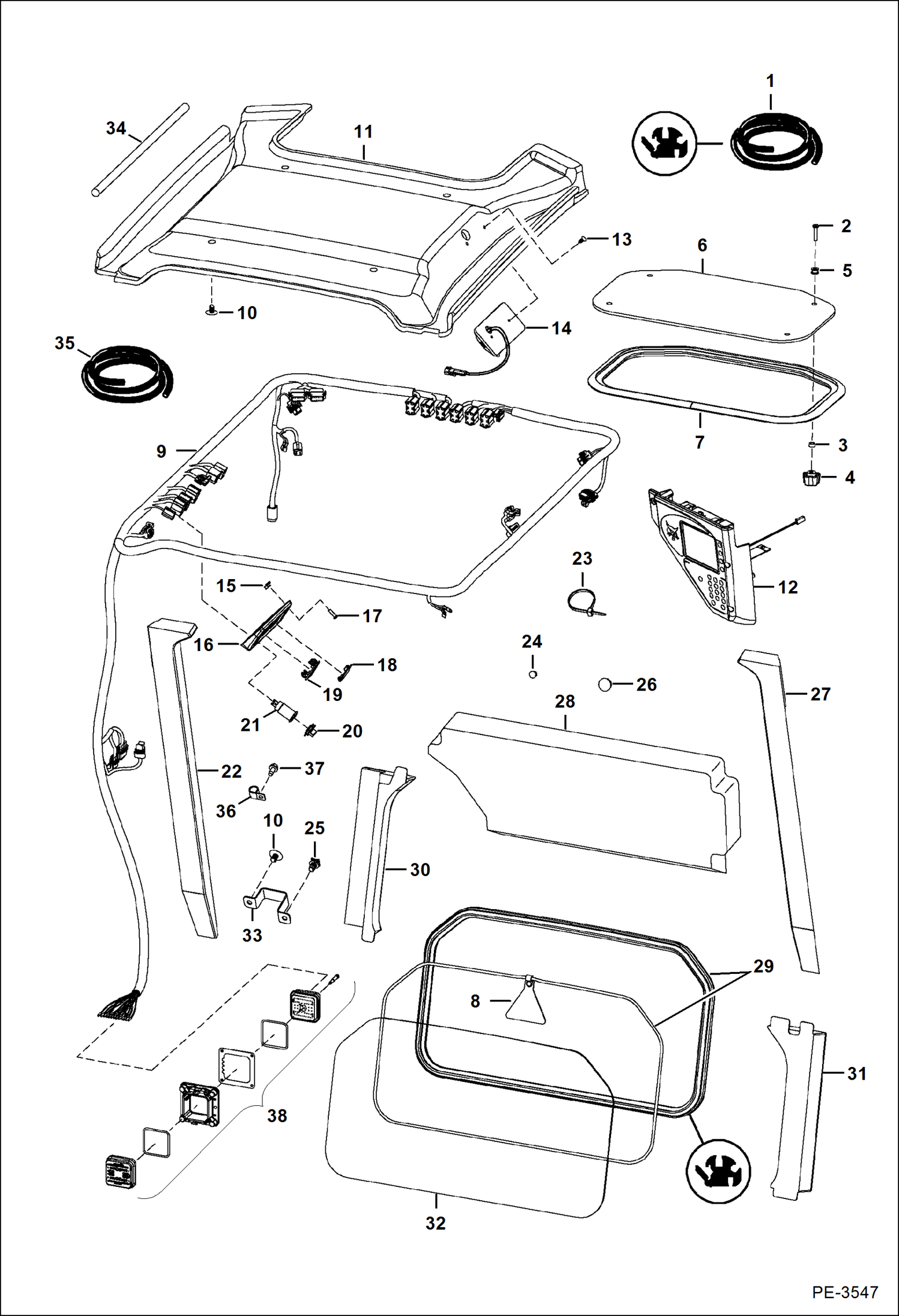

Схема запчастей Bobcat A-Series - OPERATOR CAB (Deluxe) (A5GW20001 & Above, A5GY20001 & Above) MAIN FRAME

Артикул

Название

Примечание

Количество

1

6675387

EXTRUSION bulk - sold per foot

1

6554149

CORD, BULK/FT bulk - sold per foot

2

91G420

SCREW

3

6664085

BUSHING nylon

4

6681614

KNOB 0.69'' deep thread

5

6675545

GROMMET

6

7105034

WINDOW TOP Was 7105035 - A

7

7165265

SEAL, WINDOW

8

6731478

EXIT TAG

9

HARNESS, CAB See Illustration CAB ELECTRICAL CIRCUITRY/ NA2513

10

6674895

RETAINER snap in

11

7148195

INSULATION HEADLINER headliner

12

6692935

PANEL, INSTRUMENTATION DELUXE RH - keyless

13

6664221

RETAINER snap in

14

6680326

LIGHT dome

14

6665367

BULB

15

6669091

CLIP

16

6718580

PANEL

17

6669224

BOLT

18

6665314

PLUG switch

19

6668742

SWITCH travel control - export

20

6664224

CAP

21

6664223

OUTLET

22

7148199

INSULATION

23

6624289

STRAP, TIE Was 6610510 - B

24

5289686

PLUG black - 0.38'' dia hole

25

7015668

MOUNT, STRAP TIE push in - Use W/tie strap - Was 6678666 - B

26

6657719

PLUG 0.75'' dia hole

27

7148200

INSULATION

28

6727299

INSULATION See Illustration CAB WINDOWS/ MS2704 - cab back

29

EXTRUSION NLA - 75.75'' (1924 mm) long - Order Ref. 1

29

CORD NLA - 75.75'' (1924 mm) long - Order Ref. 1 - Also Order Ref. 8 (6731478 exit tag)

30

7148197

INSULATION

31

7148198

INSULATION

32

6717874

WINDOW rear

33

7138645

GUIDE

34

FOAM NLA - 7'' (177,8 mm) long - Order Ref. 35 - W/O Heat or HVAC

34

FOAM NLA - 12'' (304,8 mm) long - Order Ref. 35 - W/ Heat or HVAC

35

6511855

SEAL self adhesive - bulk - sold per foot

36

30H75

CLAMP

37

84G3712

BOLT 5

38

CONNECTOR ASSEMBLY See Illustration CONNECTOR HARNESS ASSEMBLY/ PE3684 - NSS

Выбрано товаров: 42
