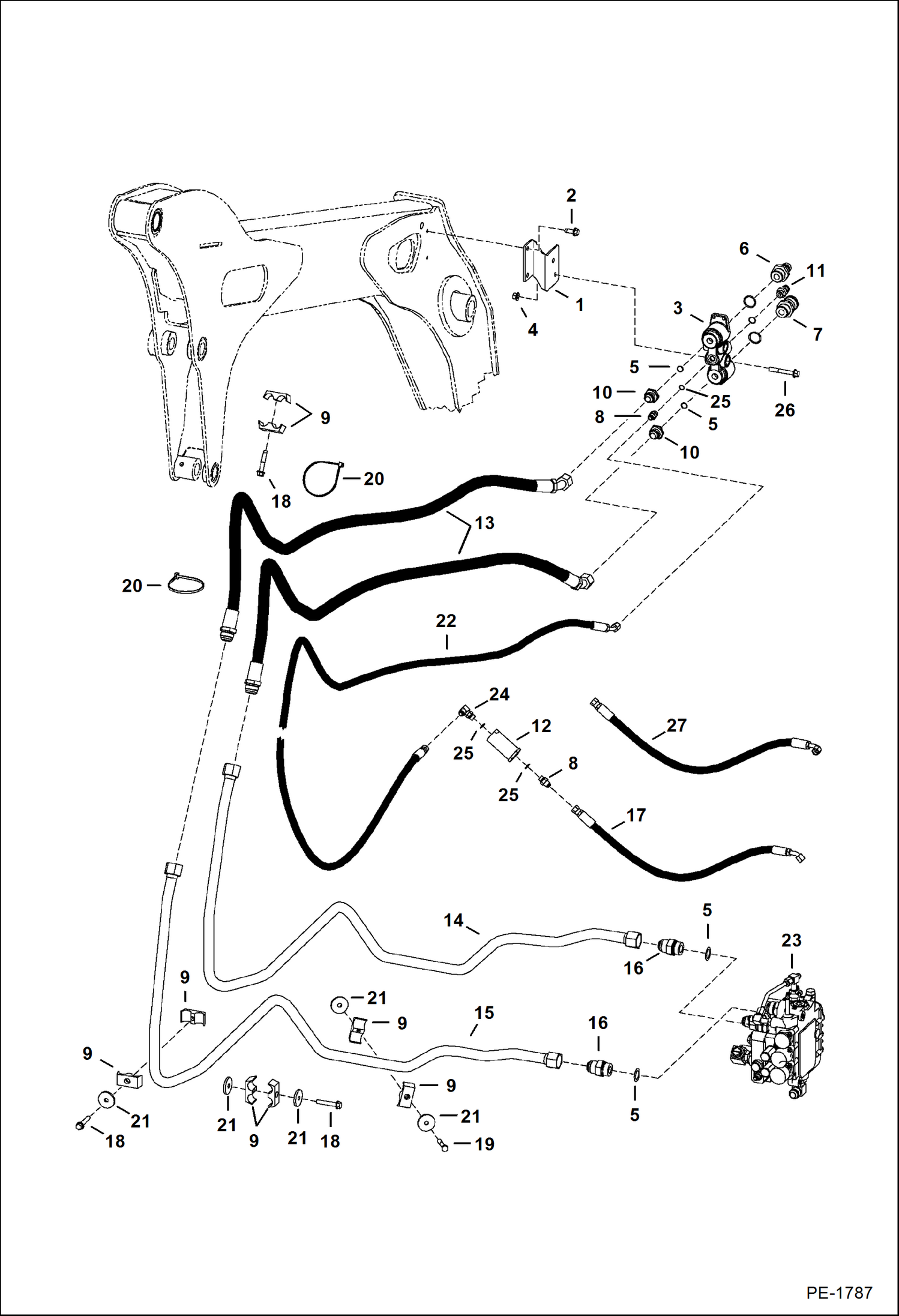

1
7102414
BRACKET Was 6731199 - A
2
84G3716
SCREW 5
3
6678076
BLOCK Ref. 6, 7, 11 & (2) of Ref. 10
4
83D6
NUT 5
5
79K12
O RING 10
6
6679837
COUPLER male
6
6679841
SEAL blue - front
6
6680020
SEAL KIT (3) O-rings & (3) back-up washers
7
KIT coupler - female - FF - Order 6680018 coupler kit - Was 6679839 - A
7
6680020
SEAL KIT (3) O-rings & (3) back-up washers
7
6680018
COUPLER, KIT female - Use W/hydraulic breaker
8
ADAPTER NLA - W/Ref. 25 - tapered boss face - Order 15KB00606B - Was 15KV00005B - A
8
97K6
O RING flared end
8
15KB0606
FITTING, HYD CONNECTOR W/Ref. 25 - flat boss face
9
6729320
CLAMP
10
6679836
ADAPTER W/spring & Ref. 5
11
6679838
KIT, COUPLER male casedrain - W/valve, spring, seal & O-ring
11
6679840
SEAL blue - front
12
6661022
FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527
13
6734769
HOSE, HYD ASSY Was 6729745 - A
14
6730878
TUBELINE
15
6730879
TUBELINE
16
15KB1612
FITTING, HYD CONNECTOR W/Ref. 5 - Was 6715878 - B,D
17
6737648
HOSE Was 6725436 - A
18
84G3736
BOLT
19
17C640
BOLT 5
20
6624289
STRAP, TIE
21
872229
WASHER
22
6729746
HOSE
23
VALVE See Illustration HYDRAULIC CONTROL VALVE/ MS1623
24
ELBOW NLA - W/Ref. 25 - tapered boss face - Order 17KB00606B - Was 17KV00005B - A
24
97K6
O RING flared end
24
17KB0606
FITTING W/Ref. 25 - flat boss face
25
99K6
O RING tapered boss face
25
79K6
O RING 10 flat boss face
26
31C644
BOLT
27
6702079
HOSE
