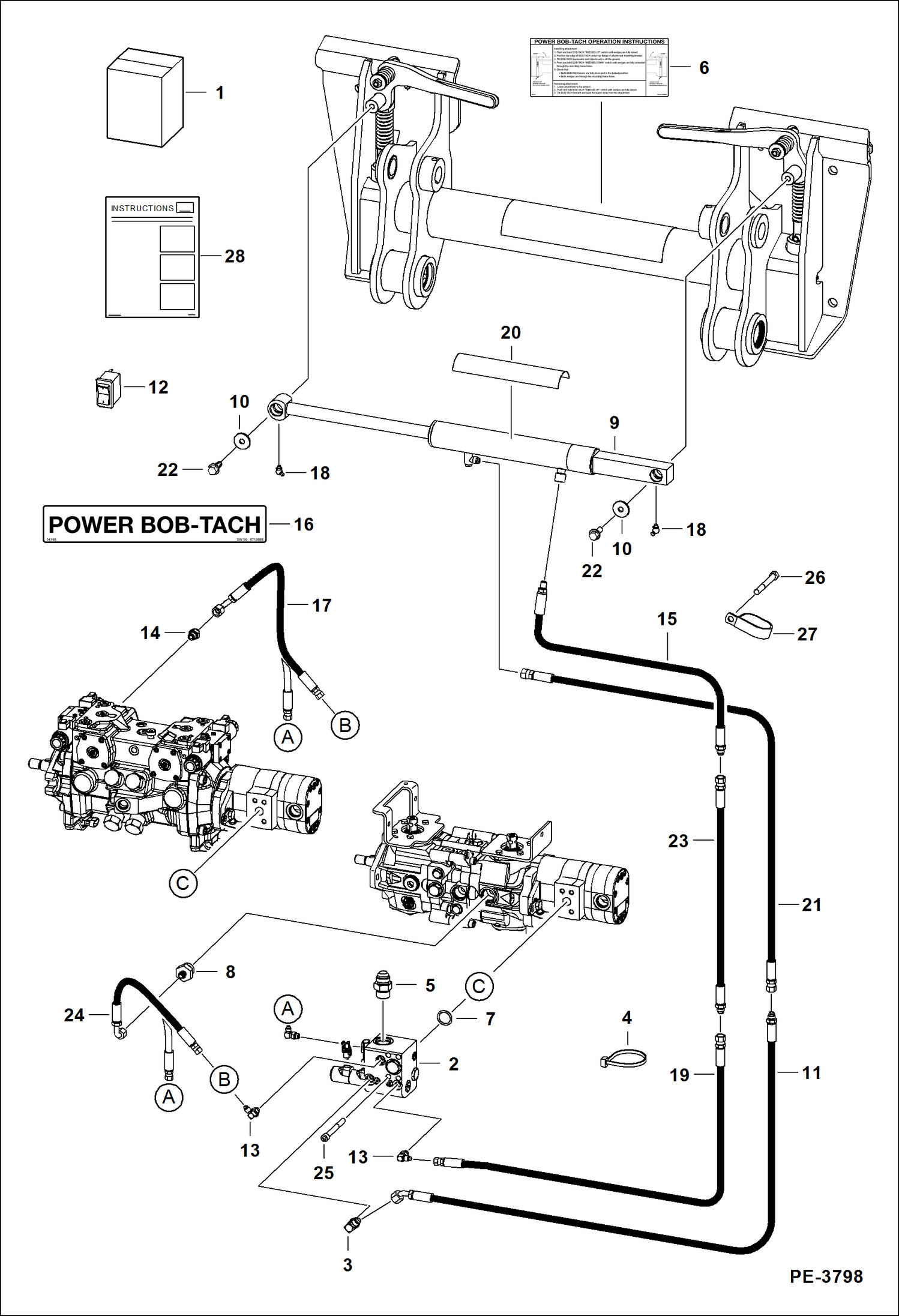

Запчасти Bobcat A-Series POWER BOB-TACH (Kit) (Bottom Mounted Cylinder Ports) ACCESSORIES & OPTIONS

1

7121116

KIT, POWER BOB-TACH Ref. 2-28- If loader is not equipped W/high flow hydraulics or A/C Also Order 7110160 deluxe fuel harness Ref. 2-28 - if loader is not equipped W/deluxe cab accessories harness, he

2

VALVE See Illustration POWER BOB-TACH/ MS1835

3

17KB0606

FITTING

3

79K6

O RING 10

4

6624289

STRAP, TIE

5

15KB1212

FITTING, HYD CONNECTOR

5

79K12

O RING 10

6

6725907

DECAL, OPERATION power Bob-Tach

7

55K214

O-RING

8

15KB0612

FITTING, HYD CONNECTOR for loaders equipped W/manual controls

8

79K12

O RING 10

9

CYLINDER See Illustration POWER BOB-TACH/ PE3799

10

619021

WASHER, 5

11

6735475

HOSE

12

6676732

SWITCH vertical

13

17KB0404

FTG HYD ELBOW 90

13

79K4

O RING 10

14

15KB0406

FTG HYD S CONNECTOR for loaders equipped W/ SJC

14

79K6

O RING 10

15

7161047

HOSE, HYD

16

6719888

DECAL

17

7145675

HOSE for loaders equipped W/SJC - 32'' (812,8 mm) long - Was 6701854 - A

18

12H25

FITTING

19

6726987

HOSE

20

6555341

SAFETY TREAD safety

21

6733630

HOSE

22

35C612

BOLT

23

7161095

HOSE, HYD

24

6806403

HOSE 16'' (406,4 mm) long

25

73G656

SCREW

26

31H49

CLAMP

27

84G3712

BOLT 5

28

6904718

INSTRUCTIONS
