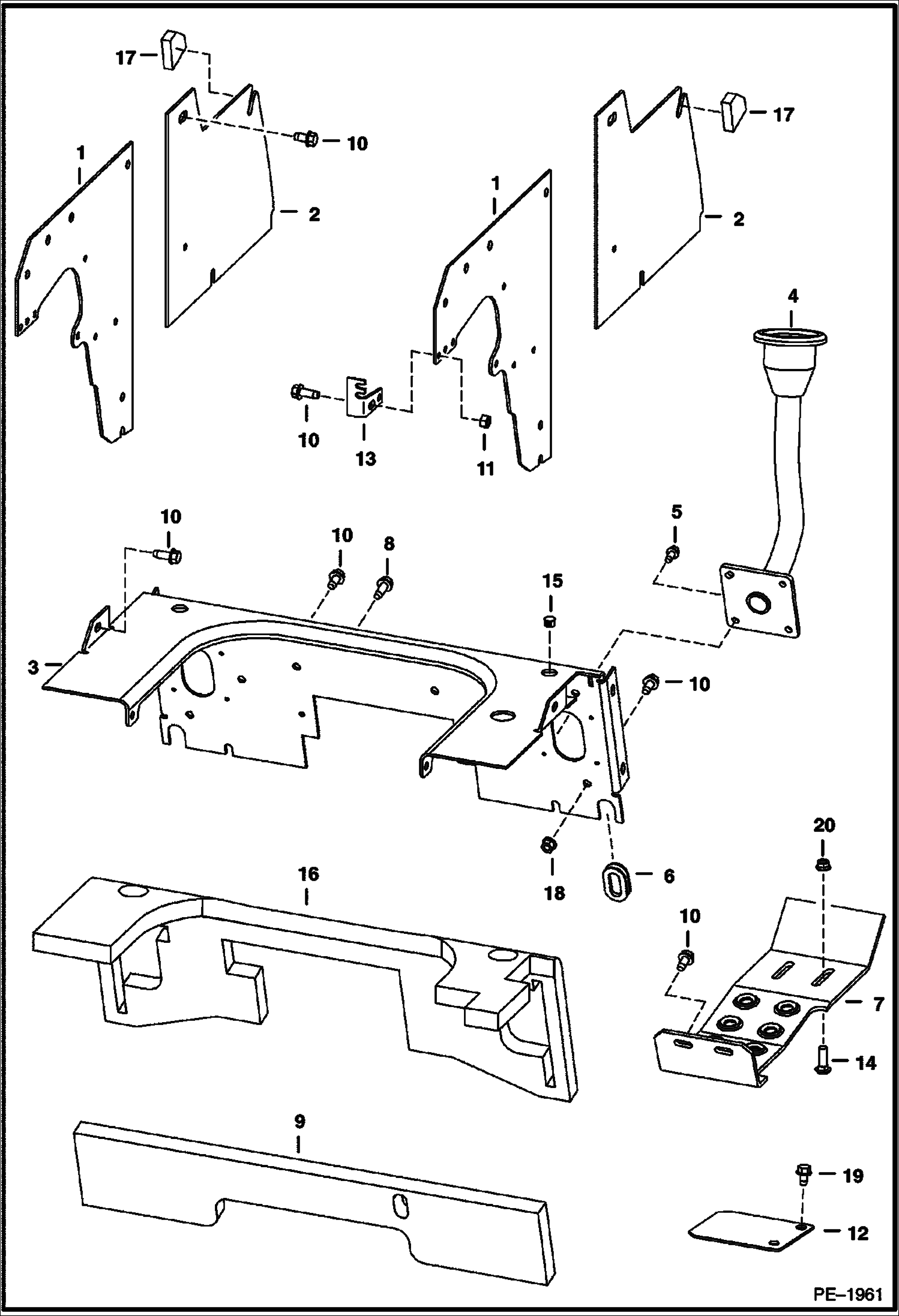

Запчасти Bobcat A-Series PANELS MAIN FRAME

1

6731899

PANEL

2

6732177

PANEL

3

7106707

SHIELD Also Order 6734520 cover - Was 6729899 - A

4

HANDLE See Illustration CONTROLS ELECTRICAL/ PE2373 - NLA - joystick - R.H. - Order 7111992 joystick assembly - Was 6729791 - A

4

HANDLE See Illustration CONTROLS ELECTRICAL/ PE2373 - NLA - joystick - L.H. - Order 7111993 joystick assembly - Was 6729792 - A

5

35C512

BOLT

6

6714726

GROMMET

7

6729237

STEP

8

84G3716

SCREW 5

9

6701674

INSULATION

10

84G3712

BOLT 5

11

95D6

NUT

12

6729774

COVER cylinder access

13

6732449

PLATE cable

14

37C620

BOLT Was 17C000612B - B

15

6649949

PLUG

16

6716800

INSULATION

17

6733529

SEAL panel

18

89D5

NUT

19

84G3710

SCREW

20

57D6

NUT 5
