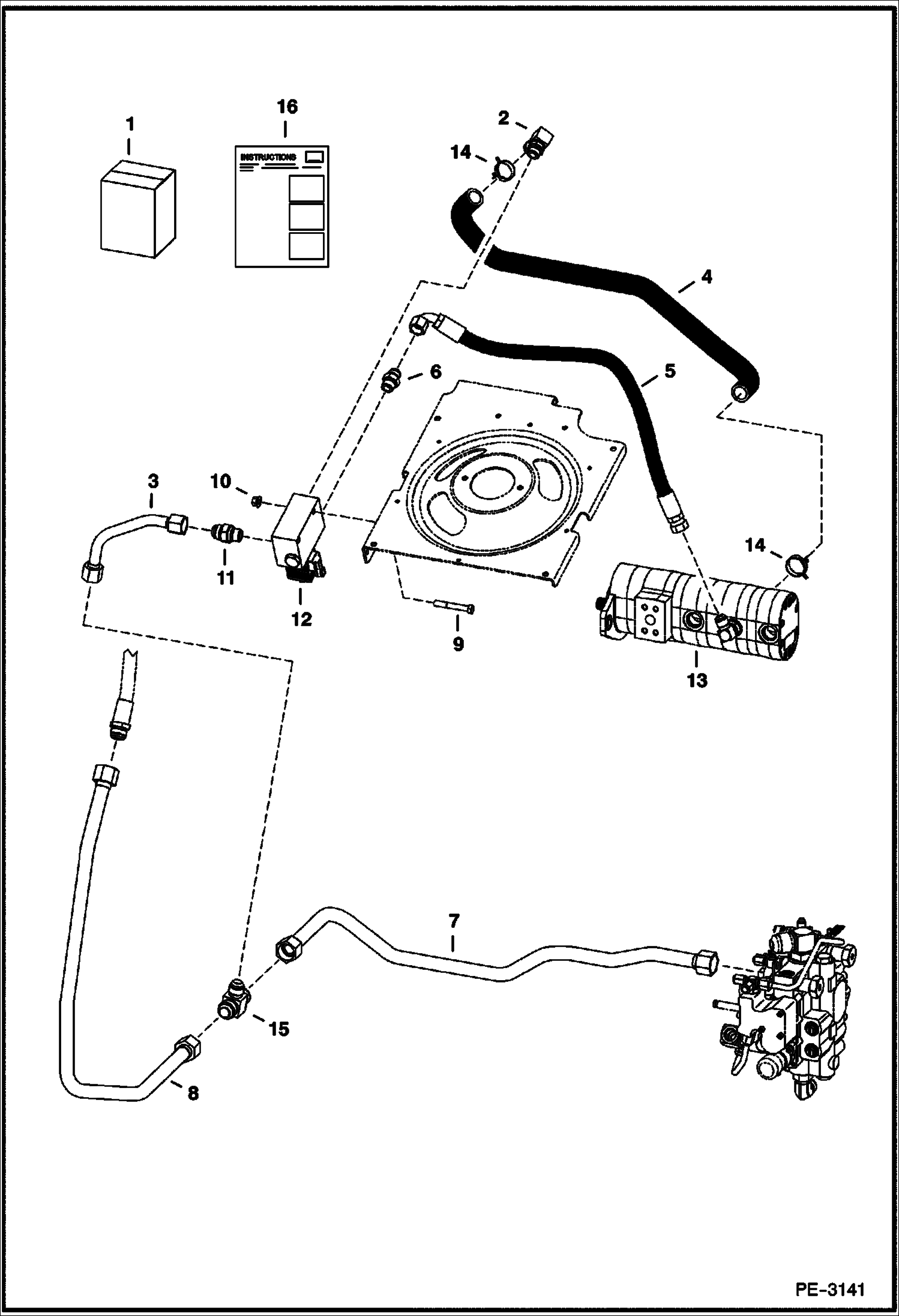

Запчасти Bobcat A-Series COOLING UPGRADE KIT (High Flow) ACCESSORIES & OPTIONS

1

7127538

HIGH FLOW KIT Ref. 2-8 & 16 - This kit is required if loader is equipped w/ High Flow option.

2

7121330

FITTING

3

7124563

TUBE

4

7124635

HOSE

5

7164778

HOSE Was 7127712 - B

6

15KB1010

FITTING, HYD CONNECTOR

7

7114818

TUBELINE not in kit - use existing part

8

7114819

TUBELINE not in kit - use existing part

9

17C644

BOLT not in kit - use existing part

10

83D6

NUT 5 not in kit - use existing part

11

15KB1210

FITTING, HYD CONNECTOR not in kit - use existing part

12

VALVE See Illustration HIGH FLOW HYDRAULICS/ PE3142 not in kit - use existing part

13

6686889

GEAR PUMP not in kit - use existing part

14

5HM32

CLAMP not in kit

15

6730143

TEE not in kit

16

6904931

INSTRUCTIONS
